APPENDIX C
FACTORY REPLACEMENT PARTS
The Patton Model 1070RC rack system features interchangeable
rear half cards, power cords/fuses for international various operating
environments and other user-replaceable parts. Model numbers and
descriptions for these parts are listed below:
Patton Model #
Description
1000RPEM..........................120/240V Rear Power Entry Module
1000RPSM-2.......................120/240V Front Power Supply Module
1000RPEM-DC ...................DC Rear Power Entry Module
1000RPSM-48A ..................48V Front Power Supply Module
1000RPEM-V ......................120/240V CE Compliant Rear Power
Entry Module
1000RPSM-V ......................120/240V CE Compliant Front Power
Supply Module
0805US ...............................American Power Cord
0805EUR.............................European Power Cord CEE 7
0805UK ...............................United Kingdom Power Cord
0805AUS.............................Australia/New Zealand Power Cord
0805DEN.............................Denmark Power Cord
0805FR ...............................France/Belgium Power Cord
0805IN.................................India Power Cord
0805IS.................................Israel Power Cord
0805JAP..............................Japan Power Cord
0805SW ..............................Switzerland Power Cord
05R16FPB1.........................Single Width Blank Front Panel
05R16FPB4.........................4-Wide Blank Front Panel
05R16RPB1 ........................Single Width Blank Rear Panel
05R16RPB4 ........................4-Wide Blank Rear Panel
0821R4................................400 mA Fuse (5x20mm)
Littlefuse 239.400 or equivalent
0821R2................................200 mA Fuse (5x20mm)
Littlefuse 239.200 or equivalent
056S1..................................Set of 16 #4 pan head screws/washers
21
22

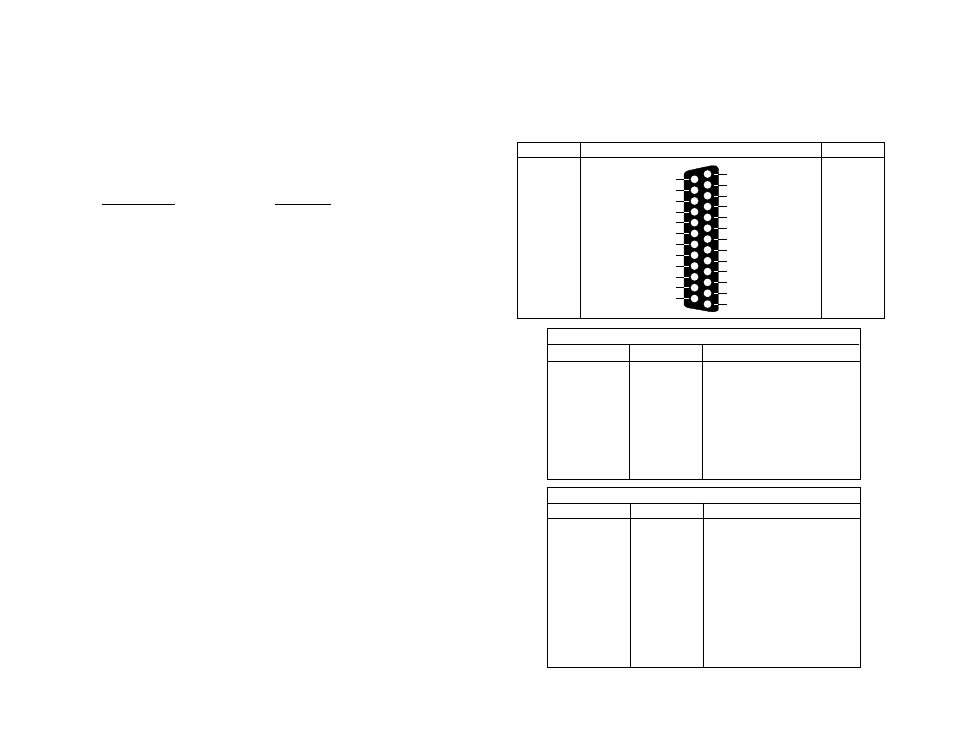

APPENDIX D.
MODEL 1070RC INTERFACE STANDARDS
1- (FG) Frame Ground
2- (TD) Transmit Data
To 1070RC
3- (RD) Receive Data
From 1070RC
4- (RTS) Request to Send
To 1070RC
5- (CTS) Clear to Send
From 1070RC
6- (DSR) Data Set Ready
From 1070RC
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
From 1070RC
From 1070RC
Transmit Clock - 15
From 1070RC
Receive Clock - 17
To 1070RC
Data Term. Ready (DTR) - 20
To 1070RC
External Clock - 24
DIRECTION
STANDARD RS-232C/V.24 "DCE" SETTING
DIRECTION
EIA/TIA-561 REFERENCE - 8 Wire RJ-45
Contact Number
Circuit
Description
1
125
Ring Indicator or DSR
2
109
Received Line Signal Indicator
3
108 / 2
DTE Ready
4
102
Signal Common
5
104
Received Data
6
103
Transmitted Data
7
106
Clear to Send
8
105 / 133
Request to Send / Ready for Receiving
PATTON MODIFIED MODULAR INTERFACE - 10 Wire RJ-45
Contact Number
Circuit
Description
1
N/A
Receive Clock
2
125
Ring Indicator or DSR
3
109
Received Line Signal Indicator
4
108 / 2
DTE Ready
5
102
Signal Common
6
104
Received Data
7
103
Transmitted Data
8
106
Clear to Send
9
105 / 133
Request to Send / Ready for Receiving
10
N/A
Transmit Clock
