Maintenance
Front Suspension
Spring Preload

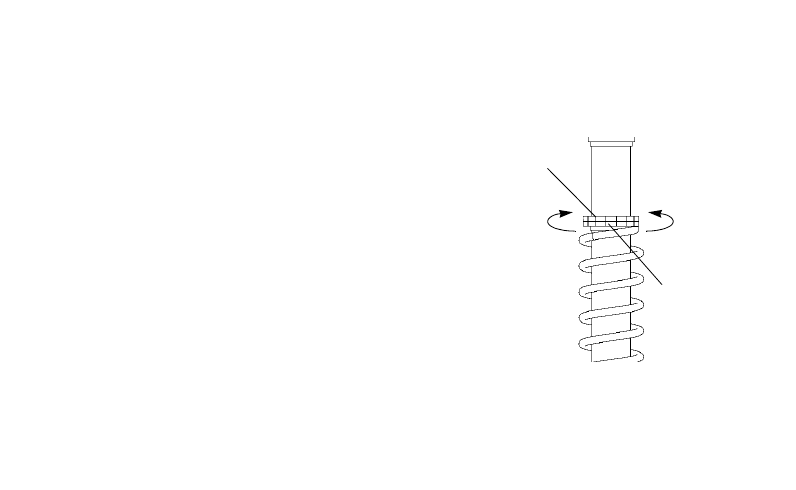

1. Raise and safely support the front of the vehicle
off the ground to allow the suspension to fully
extend.
2. Loosen the jam nut.
3. Turn the adjusting ring clockwise to increase
preload (1). Turn the ring counter-clockwise to
decrease preload (2).
4. Tighten the jam nut against the adjusting ring.
2
1
Adjusting
Ring
Jam Nut
