SWI-JACK
Universal Steering Wheel Control Interface
Before You Start
A. Is this product compatible with the vehicle?
• See application guide (separate sheet) for listing of vehicles and connection information. If not, please visit
http://www.pac-audio.com/swixprogramming/swixprogramming.asp for the most current list of compatible
vehicles.
B. Prepare for the installation.
• If possible, install the SWI-JACK while you are installing the new head unit. Keep in mind you may need to plug in
the factory stereo to locate certain wires; therefore do not complete the head unit installation until the SWI-JACK is
working properly.
• Plan a general installation location for both the SWI-JACK plug and the control body. Keep in mind that the sup-
plied wire harness is two feet long, and the 1/8" plug harness is three feet long.
• Use a multimeter or approved measuring device for checking vehicle circuits.
Pacific Accessory Corporation
SEEK
PRESET AM FM
VOLUME
PLAY MUTE
Power

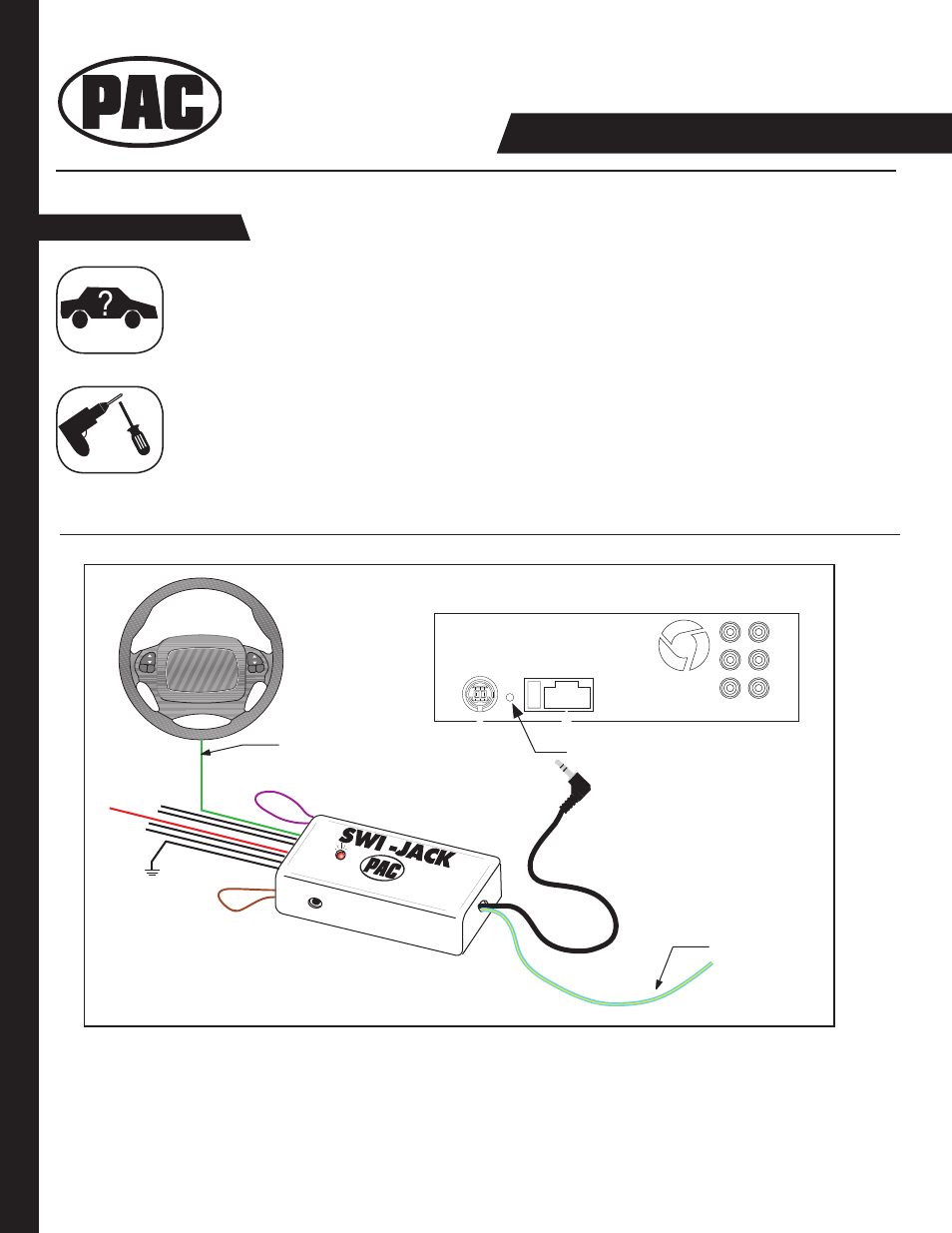

Jack for the SWI-JACK
Steering wheel
audio control wire
To Kenwood wired
remote control input
Installation Instructions
For Alpine, JVC, Clarion and
Kenwood OEM Steering Remote
Ready Radios
For Alpine, Clarion or JVC radios, connect the SWI-JACK 1/8" plug into the radio's Steering Wheel input jack on
back of radio or wire harness. For Kenwood radios, connect the blue/yel wire to the Remote Input wire (blue/yel) of radio.
Blaupunkt radios with optional wireless remote inputs are supported by the SWI-JACK, however we do not
supply any connectors or support for Blaupunkt. It is up to the consumer or installer to supply this connector. Use
vehicle Connector Chart and use VW connector as reference. Connect the SWI-JACK's blue/yel wire to pin #11 of VW
connector. The connector you obtain may come with two of three pieces, however the connector (usually green) should
show pin #11 on it.
