Antenna Connections
-6-
* For optimum picture quality, adjust antenna direction.

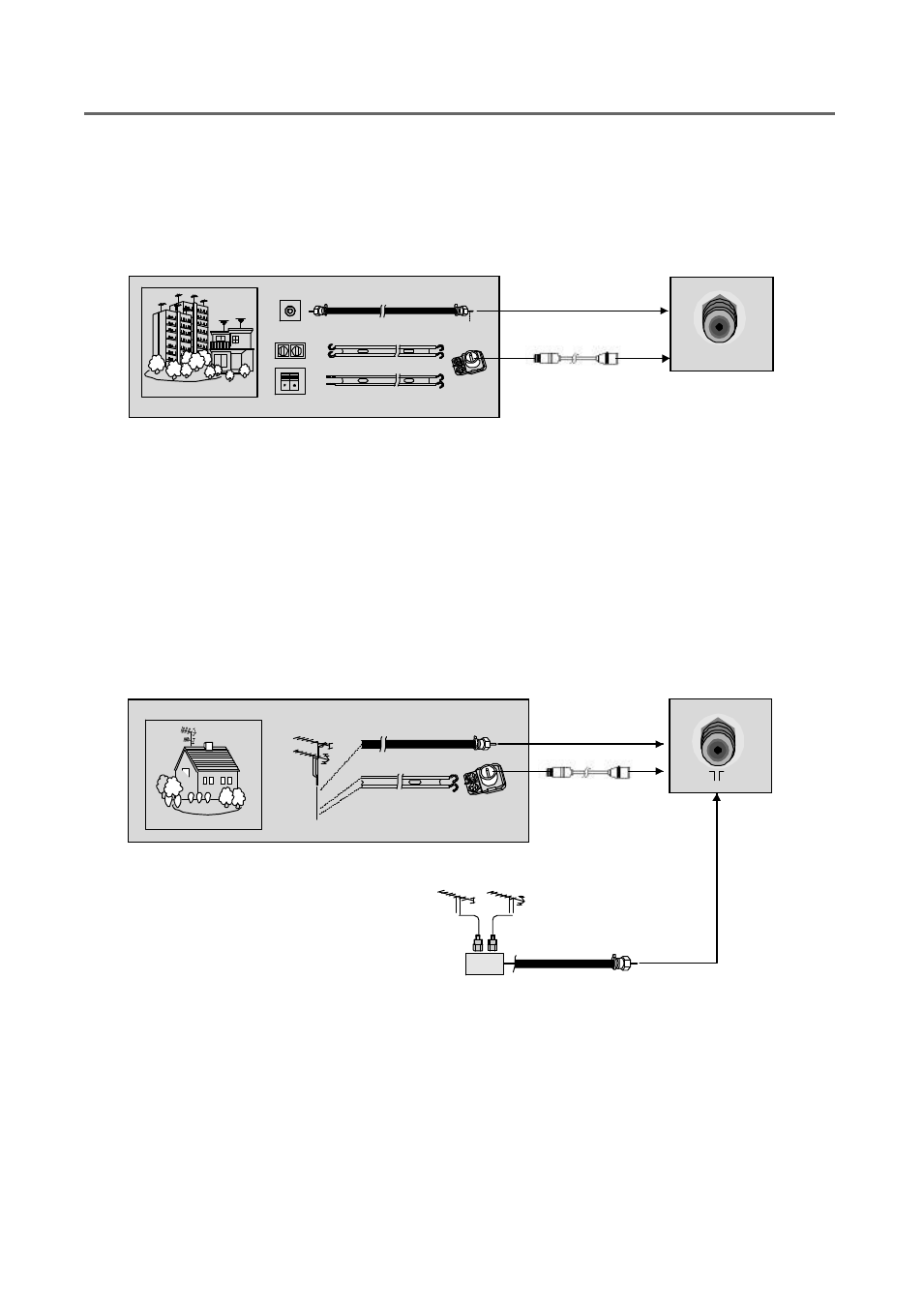

Indoor Antenna Connections
Typical Wall antenna jack used in apartment buildings, connect the antenna cable as shown
below (Please use the correct type of antenna cable according to the type of wall antenna jack).
*If you have a 75 ohm round cable, insert the bronze wire and then tighten the connection nut.
*If you have a 300 ohm flat wire, connect the twisted wire to the antenna converter and then connect
the converter to the antenna jack on the TV.
* When using 75 ohm round cable, please do not bend the bronze wire, it may make the video
quality poor.
Outdoor Antenna Connections
This type of antenna is commonly used in single family dwellings.
* In poor signal areas, to get better picture quality,
install the antenna as shown to the right.
* You can share the antenna with a signal splitter
for two TV sets.
75 ohm Round Cable
300 ohm Flat Wire
Antenna Converter
Single Family Home
VHF Antenna
UHF Antenna
UHF VHF
Signal
Amplifier
75 ohm Round Cable
Apartment buildings
75 ohm Round Cable
300 ohm Flat Wire
Bronze Wire
Wall Connection Jack
Antenna Converter
