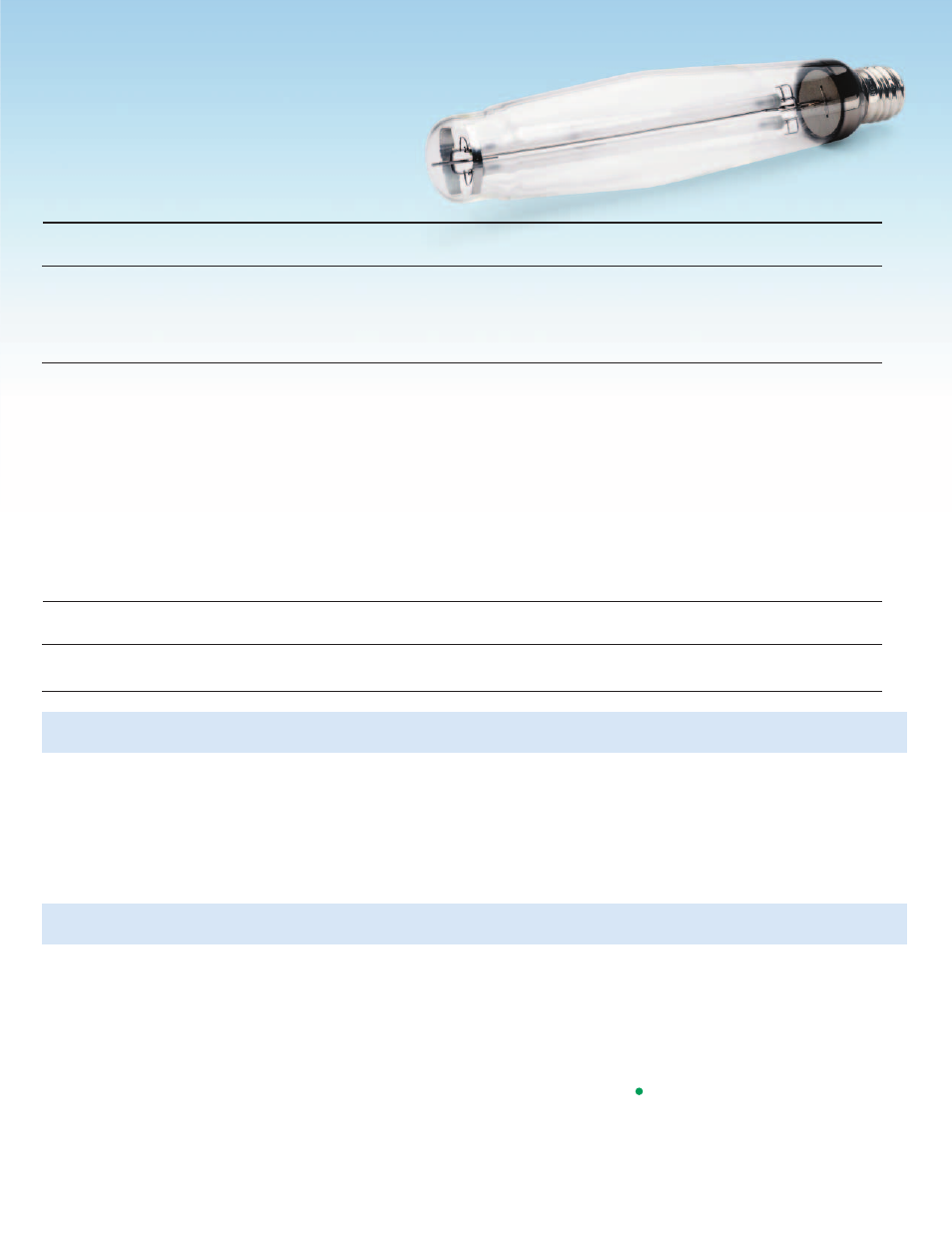

ANSI Std. Rated Approx. Approx.
Product Ordering Nom. Code/ Pkg. LCL MOL Avg. Life Initial Mean CCT
Number Code Watts Bulb Base Ballast Ref. Qty. Description (In.) (In.) Hrs. 1 Lumens 2 Lumens 3 CRI (K)
35467-0 C50S68/2 50 ED-23 1 ⁄
2
Mog. S68 12 G, S (4, 6, 9, 12, 14) 5 7 3 ⁄
4
24,000+ 3800 3450 21 2100
26541-3 C70S62/2 70 ED-23 1 ⁄
2
Mog. S62 12 G, S (4, 6, 9, 12, 14) 5 7 3 ⁄
4
24,000+ 5600 5050 21 2100
26560-3 C100S54/2 100 ED-23 1 ⁄
2
Mog. S54 12 G, S (4, 6, 9, 12, 14) 5 7 3 ⁄
4
24,000+ 9100 8190 21 2100
26561-1 C150S55/2 150 ED-23 1 ⁄
2
Mog. S55 12 G, S (4, 6, 9, 12, 14) 5 7 3 ⁄
4
24,000+ 15,600 14,000 21 2100
37717-6 C250S50/2 250 ED-18 Mog. S50 12 G, S (4, 6, 9, 12, 14) 5 3 ⁄ 4 9 3 ⁄ 4 24,000+ 27,500 24,750 21 2100
37688-9 C400S51/2 400 ED-18 Mog. S51 12 G, S (4, 6, 9, 12, 14) 5 3 ⁄ 4 9 3 ⁄ 4 24,000+ 49,000 44,000 21 2100
20412-3 C1000S52/2 1000 E-25 Mog. S52 6 G, S (4, 6, 9, 12, 14) 8 3 ⁄ 4 15 1 ⁄ 16 24,000+ 140,000 126,000 21 2100
See previous page for Warnings, Cautions and Operating Instructions
Electrical,Technical and Ordering Data (Subject to change without notice)
ANSI Std. Rated Approx. Approx.
Product Ordering Nom. Code/ Pkg. LCL MOL Avg. Life Initial Mean CCT
Number Code Watts Bulb Base Ballast Ref. Qty. Description (In.) (In.) Hrs. 1 Lumens 2 Lumens 3 CRI (K)
39194-6 C150S63/Retrolux 150 BT-28 Mog. S63 12 G, S (12, $) 5 9 ⁄
64
8 5 ⁄
16
24,000 15,000 13,500 25 2100
39195-3 C220S65/Retrolux 220 BT-28 Mog. S65 12 G, S (12, $) 5 9 ⁄
64
8 5 ⁄
16
24,000 25,000 22,500 25 2100
39196-1 C360S64/Retrolux 360 BT-37 Mog. S64 6 G, S (12, $) 7 1 ⁄
8
11 1 ⁄
2
24,000 45,000 40,500 25 2100
Electrical,Technical and Ordering Data (Subject to change without notice)
1) Rated average life is the life obtained, on the average,
from large representative groups of lamps in laboratory
tests under controlled conditions at 10 or more operating
hours per start. It is based on survival of at least 50% of
the lamps and allows for individual lamps or groups of
lamps to vary considerably from the average. For lamps
with a rated average life of 24,000 hours, life is based
on survival of 67% of the lamps.
2) Approximate lumen values listed are for vertical
operation of the lamp.
3) Approximate lumen output at 40% of lamp rated average life.
4) Follow fixture manufacturer’ recommendations regarding
proximity of ballast to bulb.
5) Electrically insulated support for bulb may be
required, especially in horizontal and nearly horizontal
operating positions.
6) Fixtures should be designed so that sockets and wiring
withstand starting pulse up to 5000 volts for 1000 watts
and WHITE SON
® types and 4000 volts for other sizes.
7) C150S55 and C150S56 lamps are not electrically
interchangeable. Different ballasts are required for the
proper operation of each lamp type. ANSI type S55
ballast is for the 55-volt (normal) lamp and the ANSI
type S56 ballast is for the 100 volt (nominal) lamp.
8) This lamp should be shielded from moisture to
prevent breakage.
9) For use in fixtures which do not redirect a substantial
portion of the energy toward the arc tube; otherwise
very early failure is anticipated.
10) Operates at rated output on ANSI 400W S145 ballasts.
11) UV filtered design (FadeBlock ™ ).
12) Heat resisting glass bulb.
13) PAR-38 (one piece)
14) Nickel plated brass base.
This product utilizes ALTO ® Lamp Technology. ALTO
products pass the US EPA's Toxicity Characteristic Leaching
Procedure (TCLP) for non-hazardous waste status.
Warnings, Cautions and Operating Instructions
CAUTION: Electric discharge lamp—Use only with proper
circuits and auxiliary equipment designed to produce
established electrical values for this lamp. Operating the lamp
improperly may result in damage to equipment or personal
injury, for which the lamp manufacturer does not assume
any responsibility.
If a lamp bulb support is used, be sure to insulate the support
electrically to avoid possible decomposition of the bulb glass.
Do not scratch the bulb or subject it to pressure, as it could
fail violently. If the outer bulb is broken, turn off the lamp and
replace it promptly.
The arc tube of this lamp contains sodium and mercury. Use
appropriate care in disposal. Protect lamp base, socket and wiring
against moisture, corrosive atmospheres and excessive heat.
Do not use this lamp in a fixture which redirects a substantial
portion of the energy toward the arc tube and its immediate
vicinity, as this may lead to very early lamp failure.
NOTICE: For total supply load, add auxiliary (ballast) watts
to lamp watts.
WARNINGS, CAUTIONS AND OPERATING INSTRUCTIONS for Ceramalux ® RetroLux High Pressure Sodium Lamps
FOOTNOTES for Ceramalux ® High Pressure Sodium Lamps
Instant Restrike High Pressure Sodium Lamps
◗ Extra arc tube offers light instantly after momentary power interruption
and will provide 80% light output within 1–2 minutes
◗ For applications where instant restrike is not required,
rated average life is 40,000 hours
◗ Operates on standard HPS ballasts and auxiliary equipment
Ceramalux ® RetroLux High Pressure Sodium Lamps
◗ For operation on all mercury vapor and metal halide ballasts of similar wattage
◗ 150W retrofits 175 watt mercury vapor or metal halide
◗ 220W retrofits 250 watt mercury vapor or metal halide
◗ 360W retrofits 400 watt mercury vapor or metal halide
