Your HD receiver 8
2.2 What you also need (not supplied)?
TV

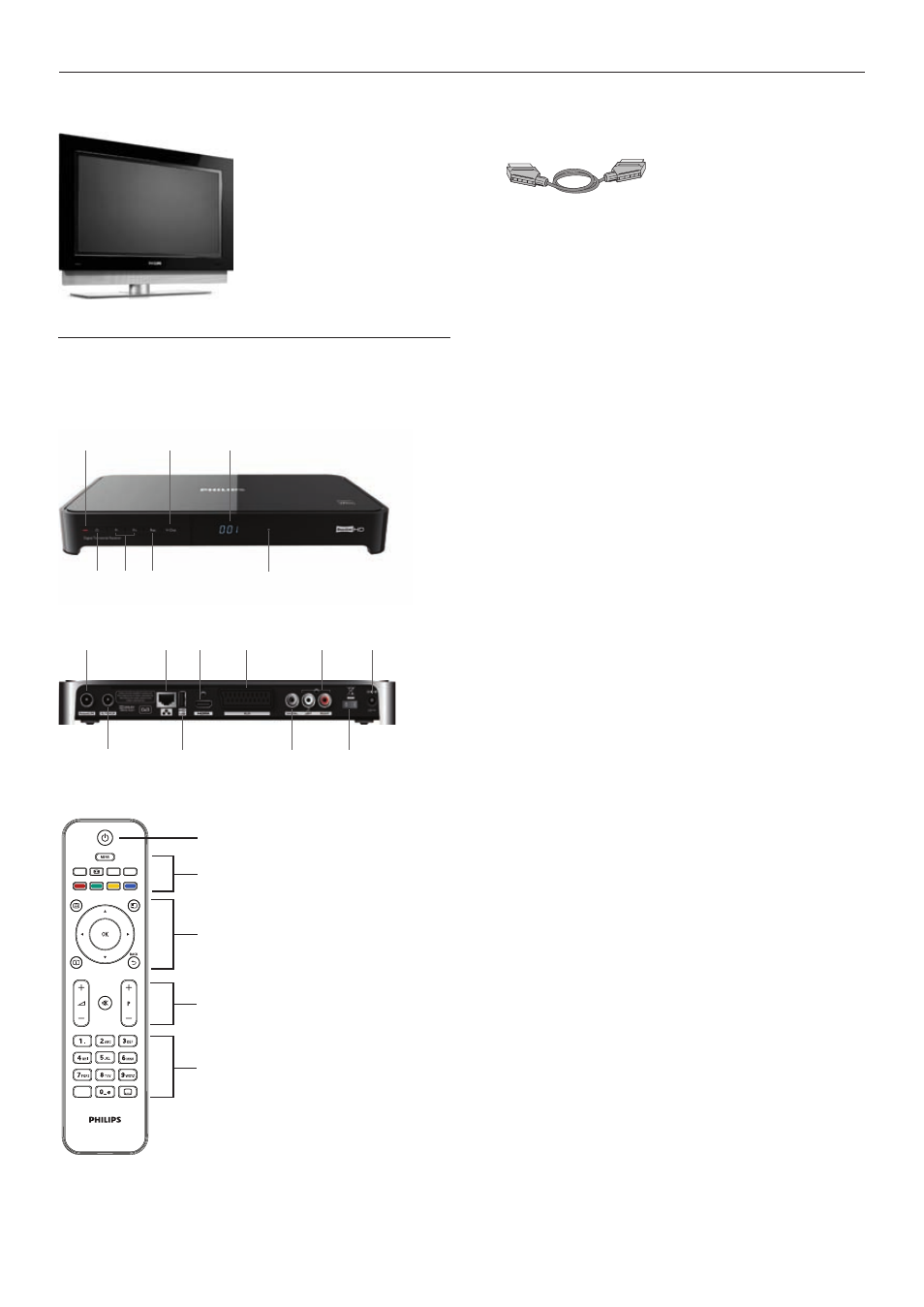

2.3 Overview
Front panel
4 2 3 7
5 1 6
Rear panel
8 1
2
3
4
5 6
7
10
9
Remote control
GUIDE OPTIONS
INFO
DIGITAL RECEIVER
TEXT RADIO EXIT
AD
1
2
4
5
3
Front Panel
1 Standby indicator
2 Standby button
3 Programme +/- buttons
4 Resolution button
5 V-Out button
6 Display
7 HD indicator
Rear Panel
1 Antenna IN *
2 Antenna output to TV/VCR (antenna signal) *
3 RJ45 Ethernet connector *
4 USB 2.0 connector *
5 HDMI™ connector *
6 AUX SCART connector *
7 DIGITAL audio out (digital) *
8 L/R audio out (analogue) *
9 ON/OFF switch
10 12 V power connector *
* Safe extra low voltage
Remote control
1 Standby
2 Menu, Text, Picture format, Radio, Exit
3 Guide, Options, Up/Down, Left/Right, OK,
Info, Back
4 Volume control, Programme +/-, Mute
5 Alphanumeric keypad, Audio description,
Subtitles
SCART cable (required only if you have a
standard-definition TV or if you want to record
a programme to an external recording device
such as a Video or DVD-R recorder)
