14

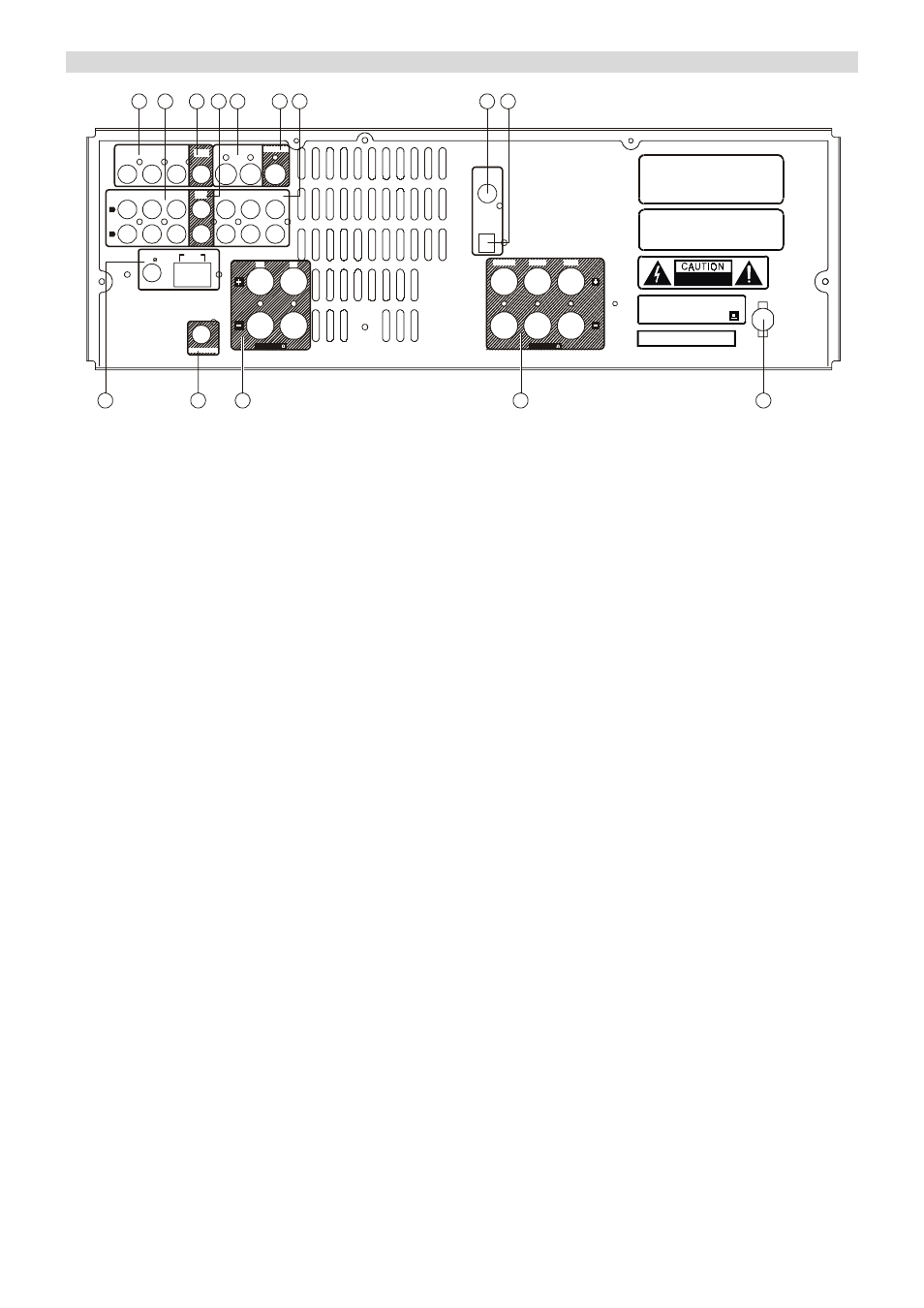

REAR PANEL INFORMATION
DVD VI DE O 1 VI DE O 2 AUX PHONO
AM
LOOP FM
75
VIDEO 1
COAXIAL
IN
VIDEO 2
OPTICAL
IN
L
R
SUB LINE OUT
RISK OF ELECTRIC SHOCK
DO NOT OPEN
M ANUFACTURE D UNDER L ICENSE FRO M DOL BY
L ABO RATO RIES LICENS ING CO RPO RAT ION.
"DO LB Y", "P RO LO GIC" AND T HE DO UBL E-D
SYM BO L ARE TRADE MARK S O F DOL BY
L ABO RATO RIES LICENS ING CO RPO RAT ION.
M an u fa ctur ed u n de r lice n se fr om Dig ita l T he a te r
System s,In c.US Pa t.No .5,4 5 1,9 42 , 5 ,9 5 6,6 74 ,
5 ,9 7 4,3 80 , 5 ,9 7 8,7 6 2 a n d oth er wo rld -wid e pa ten ts
issue d a nd p en d ing ."DTS "a n d "DT S Dig ital S ur ro u nd "
a re r eg iste r ed tra d em a rks o f Digita l Th ea ter Syste ms,
Inc.Co pyr igh t 1 99 6 ,2 000 Dig ita l T he a te r Syste m s,In c.
All Rig h ts Re se rve d.
TAPE OUT
SPE AKERS 8
CENTER LEFT RIGHT
DVD-S IN VIDEO 1-S IN VIDEO-S OUT DVD IN VI DE O 1 IN VI DE O 2 IN VI DE O OUT
RS
SPE AKERS 8
TAPE IN
POWER SOURCE:AC 120V~60Hz
POWER CONSUMPTION:500W
SER IA L N O.
LS LS
12 12 10
1 2 3 4 5 6 7 8 9
13 11
1. VIDEO
IN
DVD IN ---- connect to the line output terminals of a DVD player.
VIDEO 1 / VIDEO 2 IN ---- connect to the output terminals of a VCR to the VIDEO 1 and VIDEO 2 IN.
AUDIO IN --- connect to the output of external players.
2. AUDIO IN
DVD …connect to the output of a DVD player
VIDEO 1 / VIDEO 2 … connect to the output of VCD players.
3. VIDEO OUT …connect TV set to the VIDEO OUT.
4. TAPE OUT …connect to the line input terminals on the TAPE DECK.
5. S-VIDEO INPUTS
DVD-S IN --- connect to the line output terminal of a DVD player.
VIDEO 1-S IN --- connect to the output terminal of a VCR to the VIDEO 1-S IN.
6. VIDEO-S OUT …connect TV set to the S-VIDEO OUT.
7. ANALOGUE AUDIO IN
TAPE IN --- connect to the line output terminals on the TAPE DECK.
AUX --- connect to the line output of an external player.
PHONO … connect to the line output of a turntable.
8. VIDEO 1 COAXIAL IN --- digital audio input to the digital output of a VCD player.
9. VIDEO 2 OPTICAL IN --- digital audio input to the digital output of a VCD player.
10. FM / AM ANTENNA --- connect to the 7 channels output terminals of another player.
11. SUB LINE OUT … connect to a active subwoofer. (refer to speaker connection diagram)
12. SPEAKERS 8Ω --- connect to the external speakers.(refer to speaker connection diagram)
13. POWER CORD --- connect to the A/C socket.
