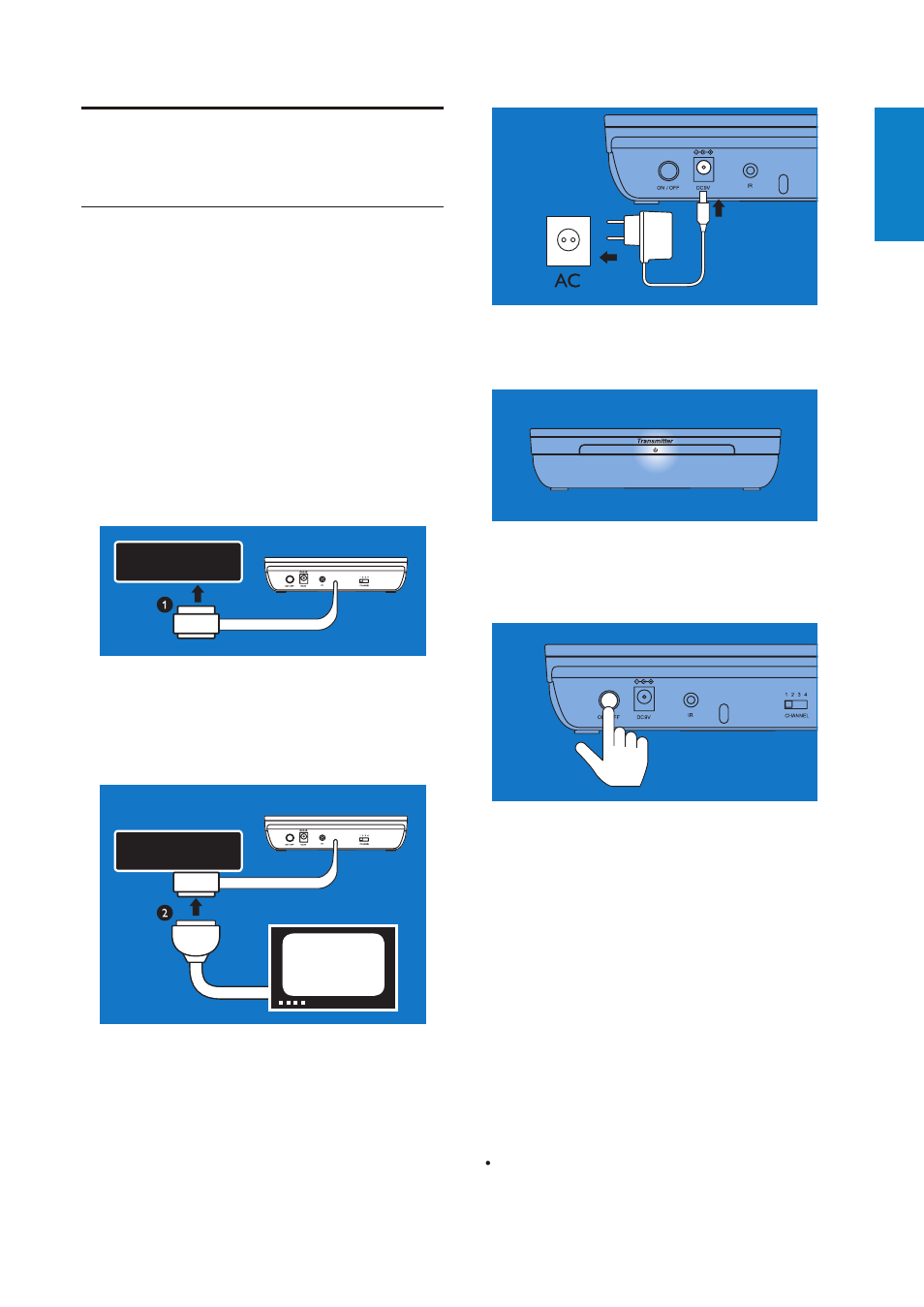

3 Getting started
3.1 Connect transmitter
1. Connect the video source to the
transmitter
a. Take the supplied transmitter (A).
Find the SCART cable that is
connecting the video source to the
TV1. Disconnect this SCART cable.
Note: the video source can be a
satellite receiver, a VCR, a DVD
player or recorder...
2. Connect TV1
Plug the SCART cable from TV1 into
the SCART connector of the
transmitter (A).
4. Check that TV1 is working well
a. Switch on TV1
b. Check that TV1 is working well.
c. Switch on the connected video
source.
d. Check if TV1 shows the image of
the video source.
> The transmitter is connected
correctly.
c. The green LED on the front panel
should be on.
Transmitter
5. Connect the remote control blaster
cord (D) to the IR socket.
Please reference to "3.4 Install the
remote control blaster cord" to
have more information.
3. Connect the power adapter
a. Take the supplied power
adapter (C) to plug the connector
into the DC 9V power connector
on the transmitter (A).
b. Plug the adapter into the power
outlet.
Note: if it is not the case, press the
ON/OFF switch on the back of the
product.
