Preparations
6

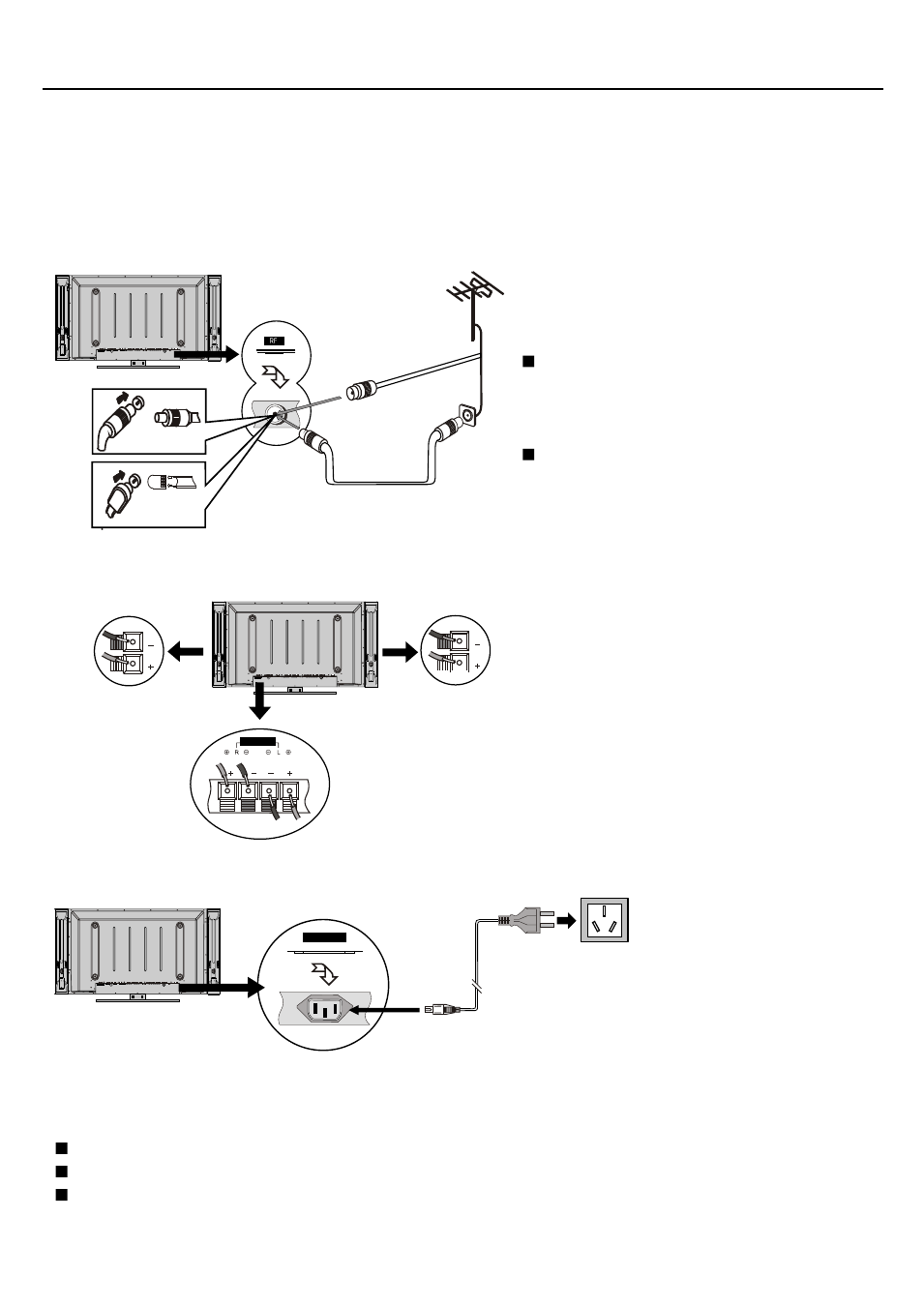

Antenna Connection
INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on
the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used.
The exact type and position of the aerial will depend upon your particular area.
Note:
It is recommended that the 75-ohm coaxial
cable be used to eliminate interference and
noise that may occur due to radio wave
conditions.
The aerial cable should not be bundled
with the power cord and the like.
Power Connection
1. Connecting the female plug to the AC socket on the unit.
2. Connecting the male plug to the wall outlet as illustrated.
Note:
This product should be operated only from the type of power source indicated on the marking label.
Always unplug the AC cord from power outlet when not using for a long period of time.
The illustration of the AC plug is for your reference only.
Speaker Connection
AC-INPUT
AC cord
Plug into AC outlet
Household
power outlet
(Black)
(Red)
(Black)
(Red)
SPEAKER
Connect the speaker audio cable to the
external speaker output jack on the unit
matching the "+" and "-" ends of the cable.
Note:
1. Unplug the plasma display and all connected
components before connecting the Speakers.
2. The illustration may be different depending on
model.
