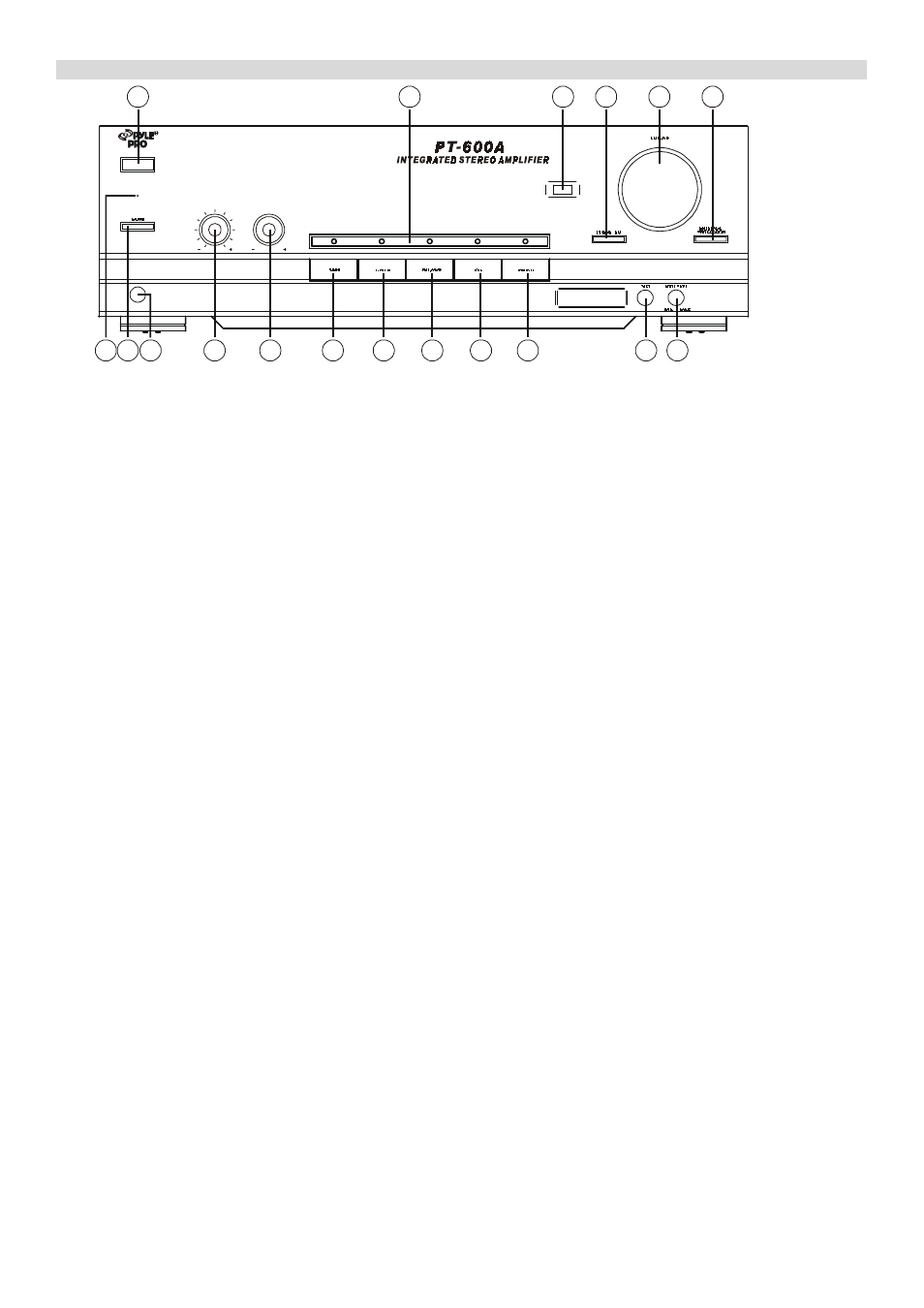

PANEL INFORMATION
1
2
3
4
5
6
18 17 16
15
14
13
12
11
10
9
8
7
REMOTE SENSOR
POW ER
BA SS
TRE BLE
PH ONE S
0
0
2
2
2
2
4
4
4
4
6
6
6
6
8
8
8
8
10
10
10
10
1. POWER
SWITCH
Power is supplied to the amplifier when this switch is depressed and
the power is switched off when the switch is released.
2. FUNCTION
Press either TAPE, TUNER, AV1/AV2, CD, PHONO, the relative
indicator will be grown.
3. REMOTE
SENSOR
Work with the remote control.
4. PRESET
EQ
Press this switch to preset one of the following kinds of music: POP
(green color), ROCK (red color), CLASSIC (orange color) and
FLAT (no color).
5. VOLUME
CONTROL
This is used to control the sound heard from the speakers or through
the headphones. Rotate it in clockwise or in counter clockwise, the
volume will be increased or decreased.
6. EXTERNAL
PROCESSOR
When this unit is connected to an external graphic equalizer or sound
processor, press this switch.
7.
MIC LEVEL VOLUME
Adjust the MIC LEVEL by rotating MIC LEVEL VOLUME knob.
8. MIC
JACK
Inserting Microphone if using.
9. PHONO
This switch is pressed when you wish to listen to records on the
turntable (PHONO) connected to the PHONO terminal.
10. CD
This switch is pressed when you wish to listen to the compact disc
player connected to the CD terminals.
11. AV1/AV2
This switch is pressed when this unit is connected to the external
amplifier.
12. TUNER
This switch is pressed when you wish to listen to the radio
broadcasts from the tuner connected to the TUNER terminals.
13. TAPE
This switch is pressed when you wish to listen to the cassette deck
connected to the tape terminal.
14. TONE CONTROL TREBLE VOLUME
The treble sound is emphasized when the TREBLE knob is rotated
clockwise from its “0” position while it is attenuated when the knob
is rotated counterclockwise.
15. TONE CONTROL BASS VOLUME
The bass sound is emphasized when the BASS knob is rotated
clockwise from its “0” position while it is attenuated when the knob
is rotated counterclockwise.
16. PHONES
JACK
This is the jack for headphones. Connect the plug on the stereo
headphones for private listening.
Adjust the volume so that it does not hurt your ears when using the
headphones.
If you do not intend to use your headphones, always ensure that
you unplug them.
17. MUTE
Press this switch to mute the sound, if resume, press it again.
18. REMOTE STANDBY INDICATOR
The Power Amplifier is in remote standby state if the remote standby
indicator is lighted.
