Light Direct Connect Fitting Installation Guide
8
13. Connecting the Copper Bonding Ground Wire: Insert the COPPER
BONDING GROUND WIRE into the BONDING TERMINAL. Using a
torque wrench, tighten the bonding terminal screw to a torque value of
25 in-lbs (minimum).
14. Connect the light cord ground wire (green) to the LOAD CENTER
GROUND bus.
15. Seal the cord grip using a polyurethane insulating foam sealant
(such as Great Stuff ® ) at the cord grip cap, where the light cord
exits, to restrict circulation of air flow through the conduit and cord
grip.
Note: The approved "duct seal type/method" is determined/
controlled by the local authority jurisdiction (NEC article 680.24).
16. Conduit Connection: Insert and glue the PVC conduit into the UL
Listed PVC union fitting. The PVC conduit connection must be sealed
with the proper solvent cement.
17. The Light Direct Connect installation is complete.

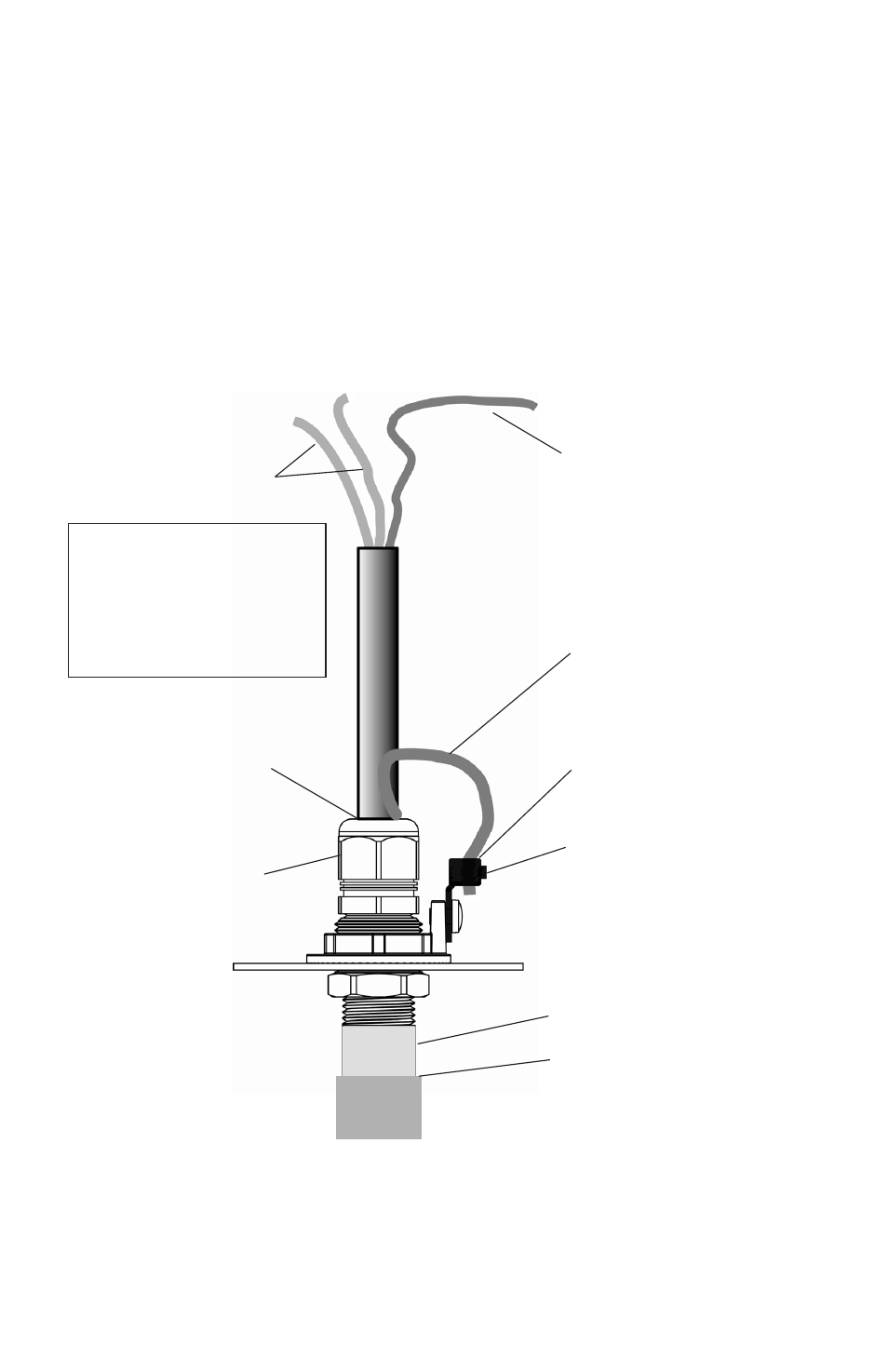

GROUND LIGHT WIRE
(GREEN) TO LOAD
CENTER GROUND BUS
LIGHT POWER
CORD WIRES
COPPER
BONDING
GROUND WIRE
BONDING TERMINAL
SCREW
1/2” to 3/4” PVC
UNION FITTING
PVC CONDUIT
(Seal joint with sealant )
Note: Each light circuit
must be connected to a
25 AMP (maximum) circuit
breaker in the load center,
when the Light Direct
Connect is installed.
SEAL CORD GRIP AT
TOP OF CAP USING
POLYURETHANE
INSULATING FOAM
SEALANT
CORD GRIP CAP
BONDING TERMINAL
