Pentair Light Direct Connect Kit User Manual
Page 10
Light Direct Connect Fitting Installation Guide
10
7.
Insert the LIGHT CORD into the CORD GRIP.
8.
Slide (or twist) the CORD GRIP down to the bushing.
9.
Screw the CORD GRIP into the BUSHING thread. Hand tighten the
cord grip to secure the cord in place. If needed, adjust the cord grip
nut to allow the cord grip more thread into the hub.
10. Slide the CORD GRIP CAP down to the top of the CORD GRIP.
11. Using a torque wrench, tighten the cap onto the cord grip to a torque
value of 80 in-lbs (minimum).

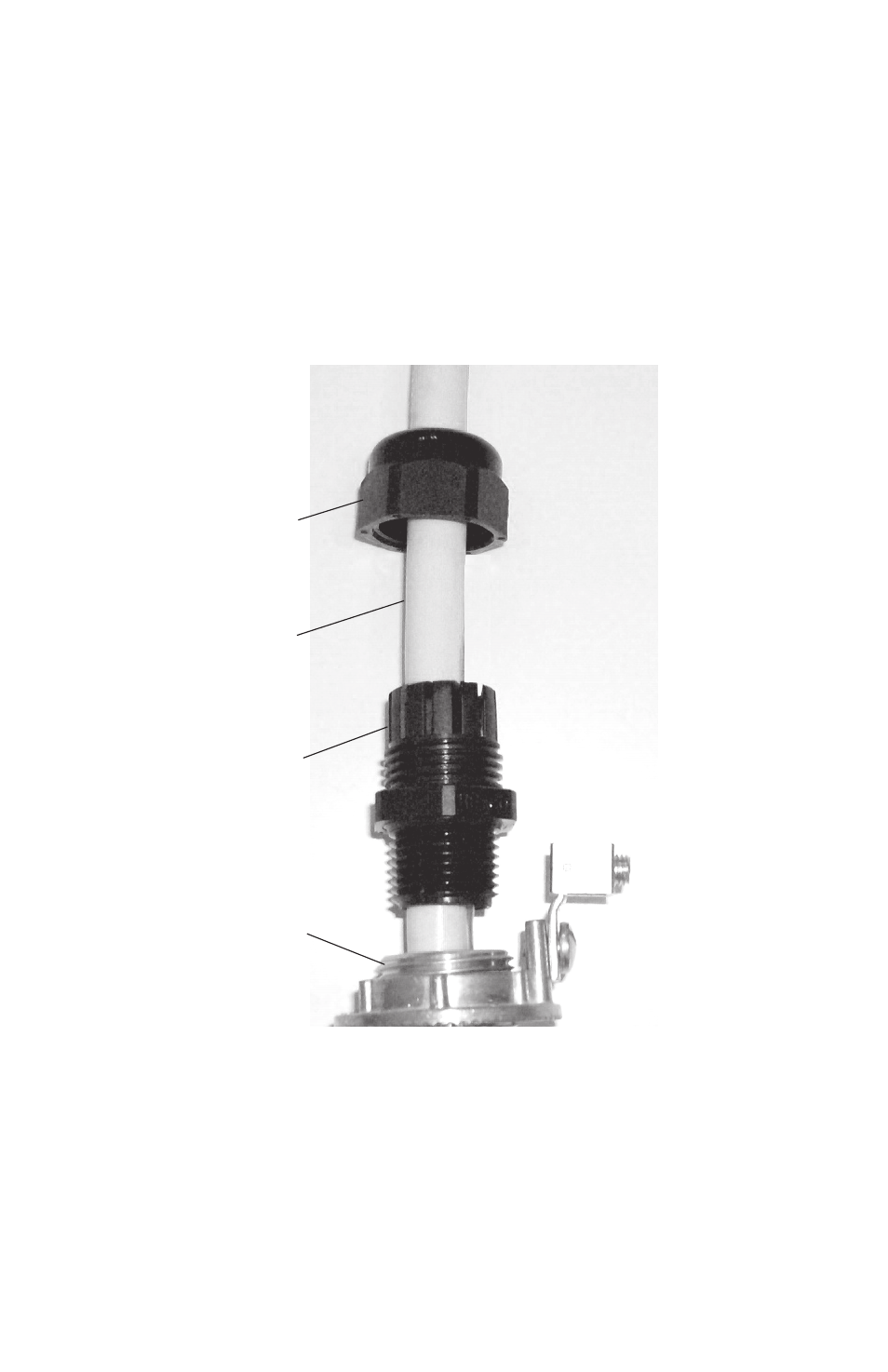

16 AWG LIGHT
POWER CORD
CORD GRIP
INSIDE
THREADED
BUSHING
CORD GRIP CAP
