12. Connect the light cord ground wire (green) to the LOAD CENTER
GROUND bus.
13. Seal the cord grip using a polyurethane insulating foam sealant
(such as Great Stuff ® ) at the cord grip cap, where the light cord
exits, to restrict circulation of air flow through the conduit and cord
grip.
Note: The approved "duct seal type/method" is determined/
controlled by the local authority jurisdiction (NEC article 680.24).
14. Conduit Connection: Insert the brass conduit into the bushing thread.
Use a pipe wrench to tighten the conduit in place.
15. The Light Direct Connect installation is complete.

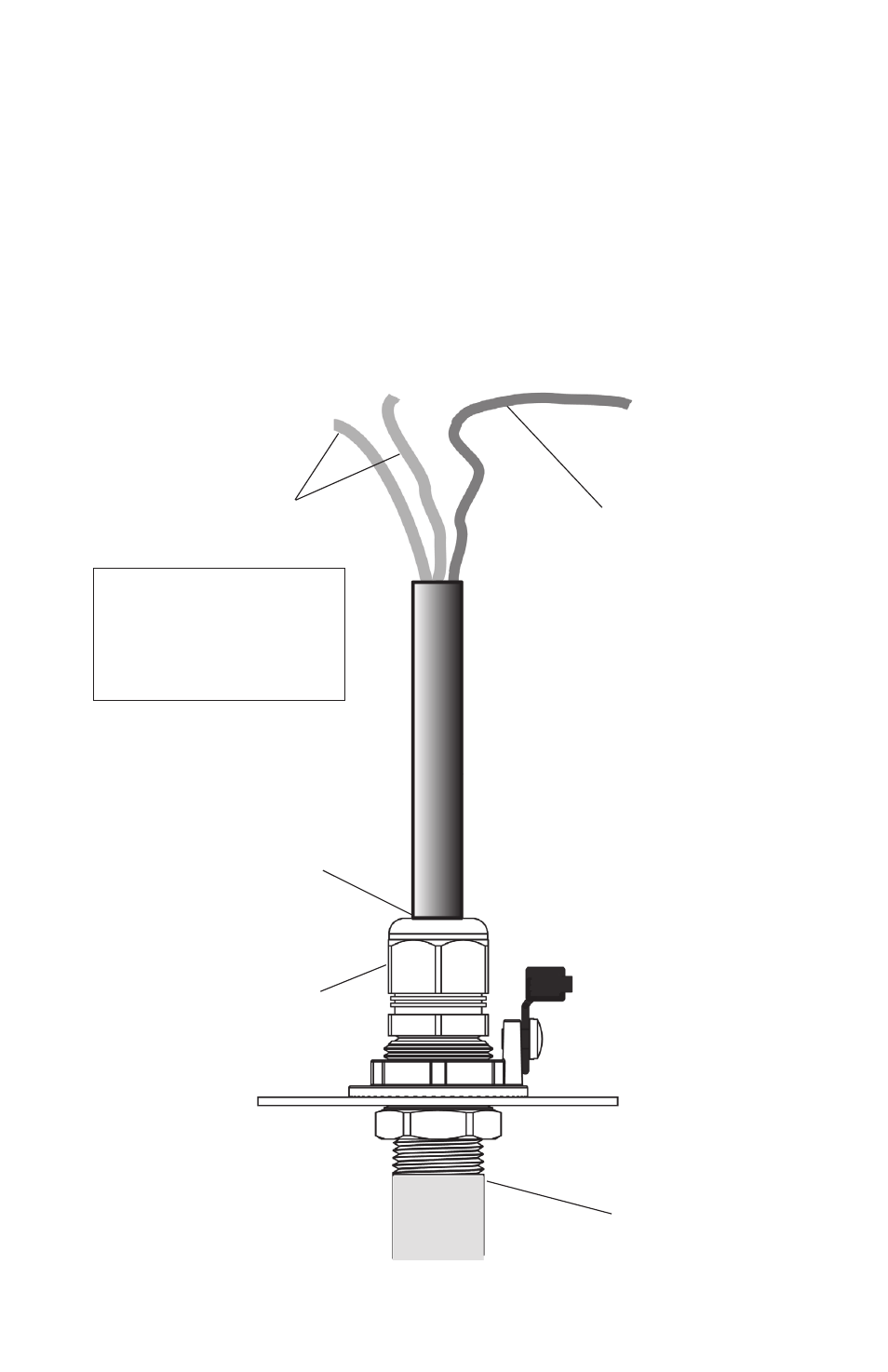

GROUND LIGHT WIRE
(GREEN) TO LOAD
CENTER GROUND
BUS
LIGHT POWER
CORD WIRES
RED BRASS
CONDUIT
Note: The load center
must be connected to a 25
AMP (maximum) circuit
breaker when Light Direct
Connect is installed.
SEAL CORD GRIP AT
TOP OF CAP USING
POLYURETHANE
INSULATING FOAM
SEALANT
CORD GRIP CAP
