Light Direct Connect Fitting Installation Guide
6
Installing the Light Direct Connect Fitting
Using Non-Metallic (PVC) Conduit
1. Remove one 3/4” knockout from the load center for the PVC conduit.
2. Position the LOCK NUT over the load center knockout opening to
align the lock nut and knockout opening.
3. While holding the lock nut in place, insert the BUSHING through the
knockout and into the lock nut thread. Hand tighten the bushing into
the lock nut.
4. Using a 1” pipe wrench, tighten the bushing to secure in place. Be
sure to position the ground terminal screw to one side for the
ground wire connection.
5 . Route the LIGHT POWER CORD and the No. 8 AWG COPPER
BONDING GROUND WIRE into the 1/2” to 3/4” PVC UNION FITTING
(sold separately).
6 . Pull the cord and ground wire into the PVC conduit union.
7. Route the light cord and copper bonding ground wire up through the
bushing and lock nut into the load center. Leave enough cord and
ground wire slack for connections to the load center relay, and
ground terminal, respectively.

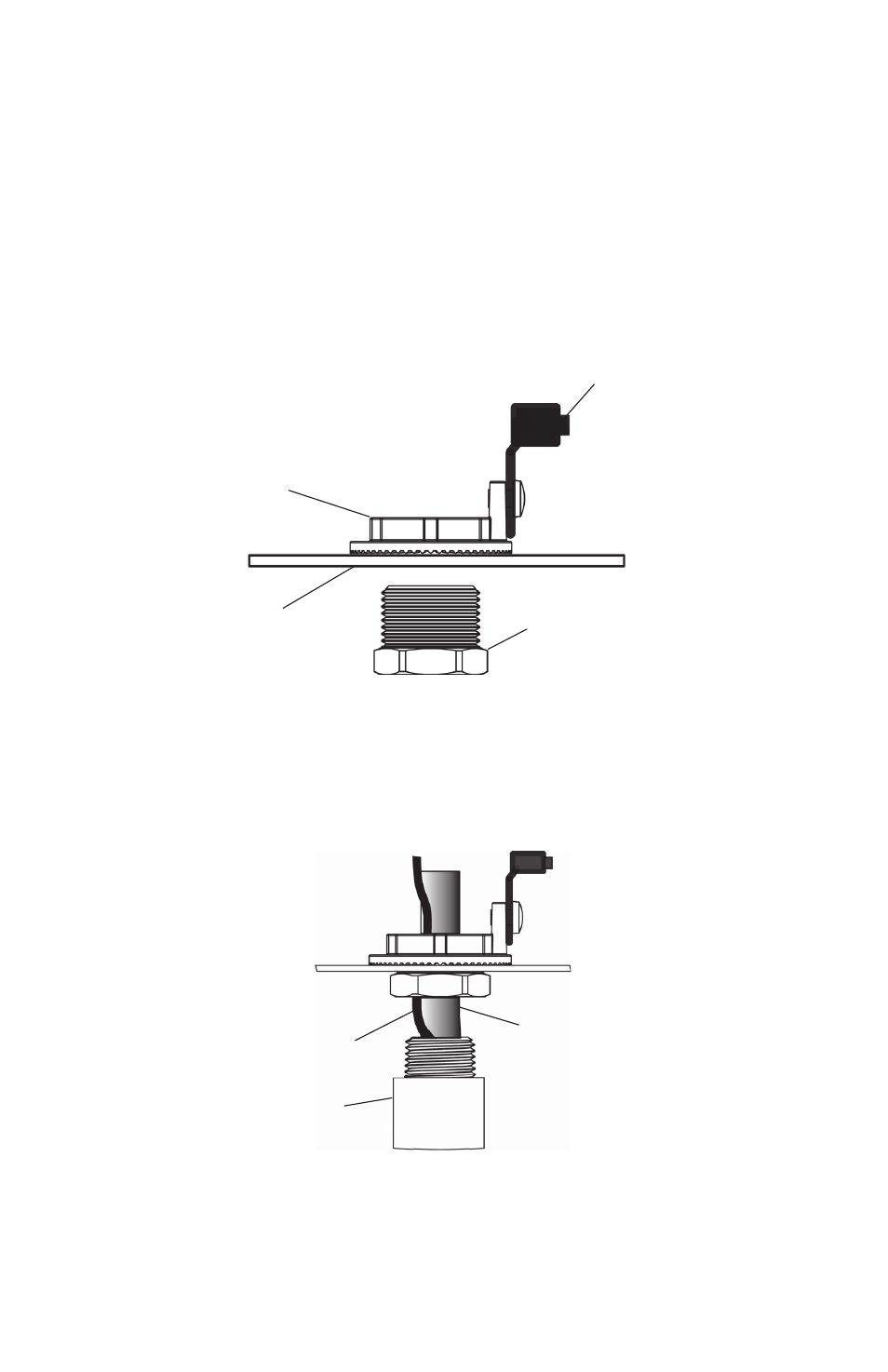

LOCK NUT
LOAD CENTER
KNOCKOUT
BUSHING
BONDING TERMINAL
SCREW
LIGHT POWER CORD
1/2” to 3/4” PVC
UNION FITTING
COPPER BONDING
GROUND WIRE
