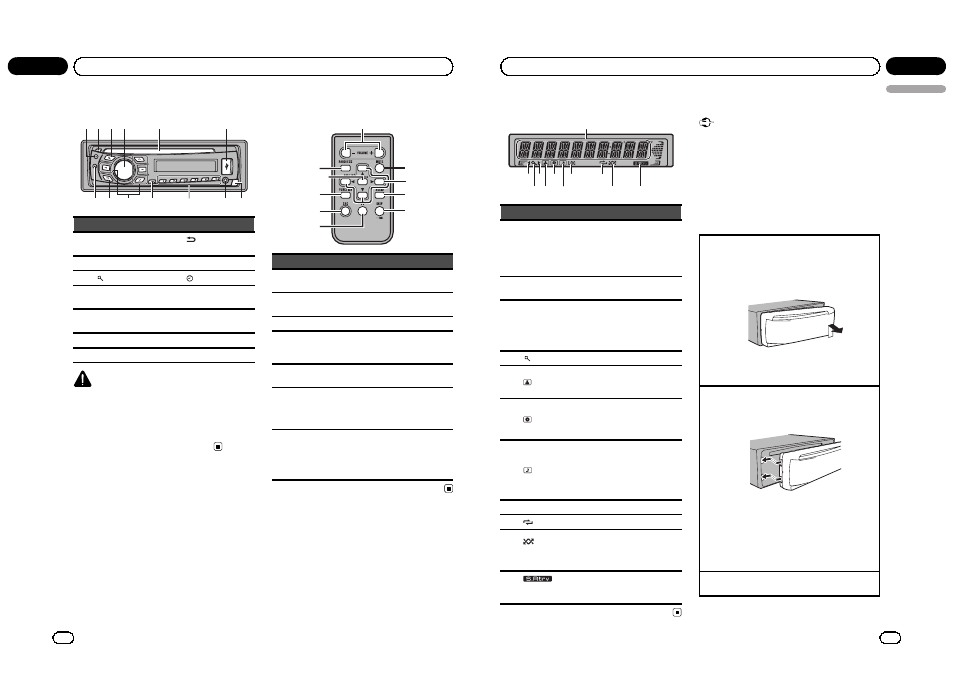

Head unit
1 2 4 5 6 3
7 8 a b c d 9
Part Part
1 S (SRC/OFF) 8
(Back/display/
scroll)
2 h (eject) 9 a/b/c/d
3 (list) a (clock)
4
MULTI-CONTROL
(
M.C.)
b 1 to 6
5 Disc loading slot c
AUX input jack (3.5
mm stereo jack)
6 USB port d Detach button
7 B (BAND/ESC)
CAUTION
! Use an optional Pioneer USB cable (CD-U50E)
to connect the USB audio player/USB mem-
ory as any device connected directly to the
unit will protrude out from the unit and may
be dangerous.
! Do not use unauthorized products.
Remote control
e
k
i
f
h
g j
7
1
9
Part Operation
e VOLUME
Press to increase or decrease vo-
lume.
f MUTE
Press to mute. Press again to un-
mute.
g AUDIO Press to select an audio function.
h DISP/SCRL
Press to select different displays.
Press and hold to scroll through
the text information.
i e
Press to pause or resume play-
back.
j FUNCTION
Press to select functions.
Press and hold to recall the initial
setting menu when the sources
are off.
k
LIST/
ENTER
Press to display the disc title,
track title, folder, or file list de-
pending on the source.
While in the operating menu,
press to control functions.
En
4
Section
02 Operating this unit
Display indication
4 5
6 3 8
a b
9
1
2
7
Indicator State
1
Main dis-
play sec-
tion
! Tuner: band and frequency
! Built-in CD, USB storage de-
vice and iPod: elapsed play-
back time and text
information
2 c
An upper tier of folder or menu
exists.
3 d
A lower tier of folder or menu ex-
ists.
It flashes when a song/album re-
lated to the song currently playing
is selected from iPod.
4 (list) The list function is operated.
5 (artist)
The artist name is displayed.
Artist search refinement of the
iPod browsing function is in use.
6 (disc)
The disc (album) name is dis-
played.
Album search refinement of the
iPod browsing function is in use.
7 (song)
The track (song) name is dis-
played.
A playable audio file has been se-
lected while operating the list.
Song search refinement of the
iPod browsing function is in use.
8 LOC The local seek tuning is on.
9 (repeat) Track or folder repeat is on.
a
(ran-
dom/shuf-
fle)
Random play is on.
The iPod source is selected and
the shuffle or shuffle all function
is on.
b (sound re-
triever)
The sound retriever function is
on.
Basic Operations
Important
! Handle gently when removing or attaching
the front panel.
! Avoid subjecting the front panel to excessive
shock.
! Keep the front panel out of direct sunlight and
high temperatures.
! To avoid damage to the device or vehicle inter-
ior, remove any cables and devices attached
to the front panel before detaching it.
Removing the front panel to protect your unit from
theft
1 Press the detach button to release the front
panel.
2 Push the front panel upward and pull it toward
you.
3 Always keep the detached front panel in a protec-
tion device such as a protection case.
Re-attaching the front panel
1 Slide the front panel to the left.
Make sure to insert the tabs on the left side of the
head unit into the slots on the front panel.
2 Press the right side of the front panel until it is
firmly seated.
If you cannot attach the front panel to the head
unit successfully, make sure that you are placing
the front panel onto the head unit correctly. For-
cing the front panel into place may result in da-
mage to the front panel or head unit.
Turning the unit on
1 Press S (SRC/OFF) to turn the unit on.
En
