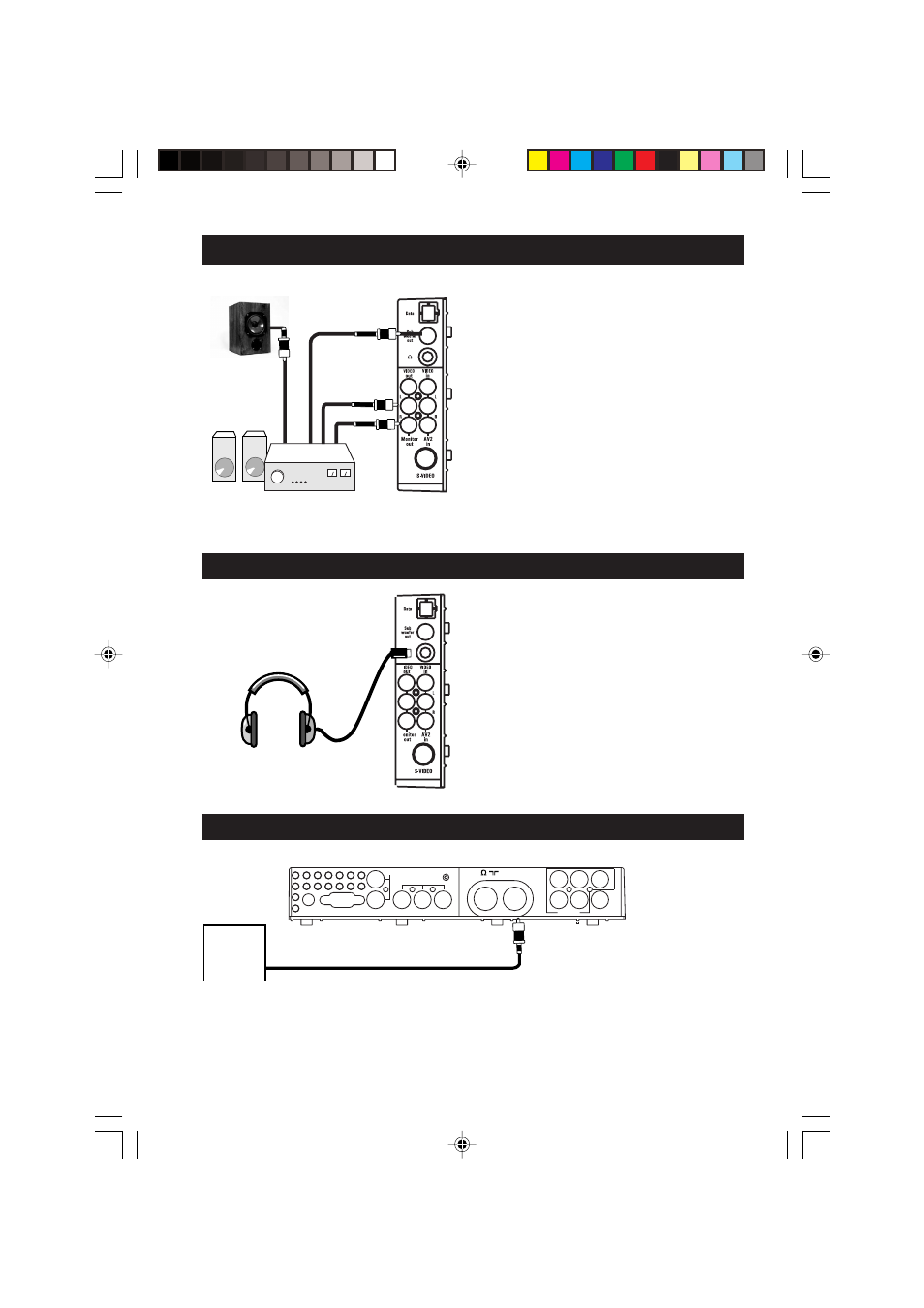

Connect the audio cable to the audio input
of your audio equipment and to AUDIO L
and R at the rear of the TV
If you have a subwoofer, connect the cable
from Subwoofer Out socket to an external
amplifier.
You can listen to your TV sound via your
audio equipment.
Note : If you want to connect more
equipment to your TV, consult your dealer.
Insert the plug into the headphone soket
; at the Side sockets of the LCD TV.
To enable you to access FM radio mode in
the TV, you must connect from FM Antenna
socket to the
FM Radio mains.
C
ONNECTING TO THE
A
UDIO
E
QUIPMENT
, A
MPLIFIER AND
S
UBWOOFER
SPEAKERS
L R
Side Controls SUBWOOFER
C
ONNECTING TO THE
H
EADPHONE
C
ONNECTING TO THE
FM R
ADIO
M
AINS
Rear of TV
To FM
Radio
Mains
Monitor
out
AV1
in
Audio
out
COMP
VIDEO
INPUT FM ANT 75 Audio in (PC / HD)
HD input
DC in PC input (VGA)
L
R Y Pb Pr
AV1
in
Pb Pr Y
R L
Audio in Video in
SIDE CONTROLS
(EXTERNAL 2)
