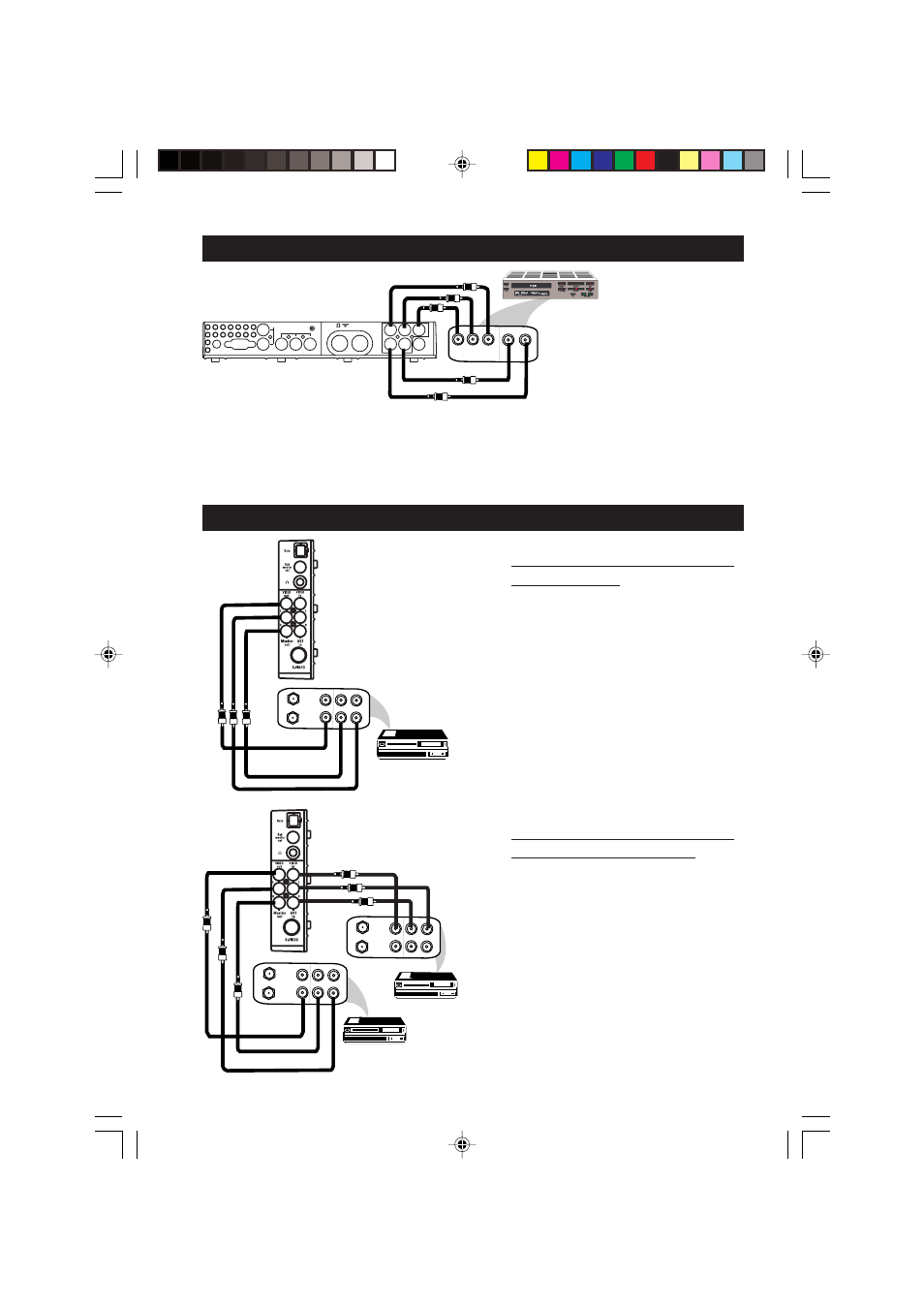

You can view the playback of DVD discs by using the COMPONENT VIDEO INPUT
sockets at the rear of the LCD TV.
– Connect the “Y”, “Pb” and the “Pr” sockets at the rear of the LCD TV to the “Y”, “Pb”
and “Pr” OUTPUT sockets of the DVD player to view playback of DVD discs.
C
ONNECTING THE
A
UDIO
/V
IDEO
S
OCKETS
(R
ECORDING
)
AUDIO Y L R Pb Pr
DVD (Equipped
with "Y", "Pb" and "Pr"
and Output sockets)
Monitor
out
AV1
in Audio
out
COMP
VIDEO
INPUT FM ANT 75 Audio in (PC / HD)
HD input
DC in PC input (VGA)
L
R Y Pb Pr AV1
in
Pb Pr Y
R L
Audio in Video in
Connection for recording from
the TV channel
– Connect the corresponding INPUT
sockets of the VCR to the MONITOR
OUTPUT sockets at the rear of the
LCD TV.
Connection for recording from
one VCR to another VCR
– Connect the sockets of the VCR which
you want to record from, to the
corresponding sockets at AV2.
– Connect the sockets of the receiving VCR
to the MONITOR OUTPUT sockets
at the side of the LCD TV.
VCR (Equipped
with Video and
Audio sockets)
ANTENNA
OUT
IN
OUT
IN
AUDIO R L VIDEO
IN
OUT
VCR
Side Sockets
VCR (Equipped
with Video and
Audio sockets)
IN IN
ANTENNA
OUT
IN
OUT
AUDIO R L VIDEO
OUT
VCR 1
Side Sockets
ANTENNA
OUT
IN
OUT
IN
AUDIO R L VIDEO
IN
OUT
VCR 2
