7
C
ONNECTING THE
A
UDIO
/V
IDEO
S
OCKETS
(P
LAYBACK
)

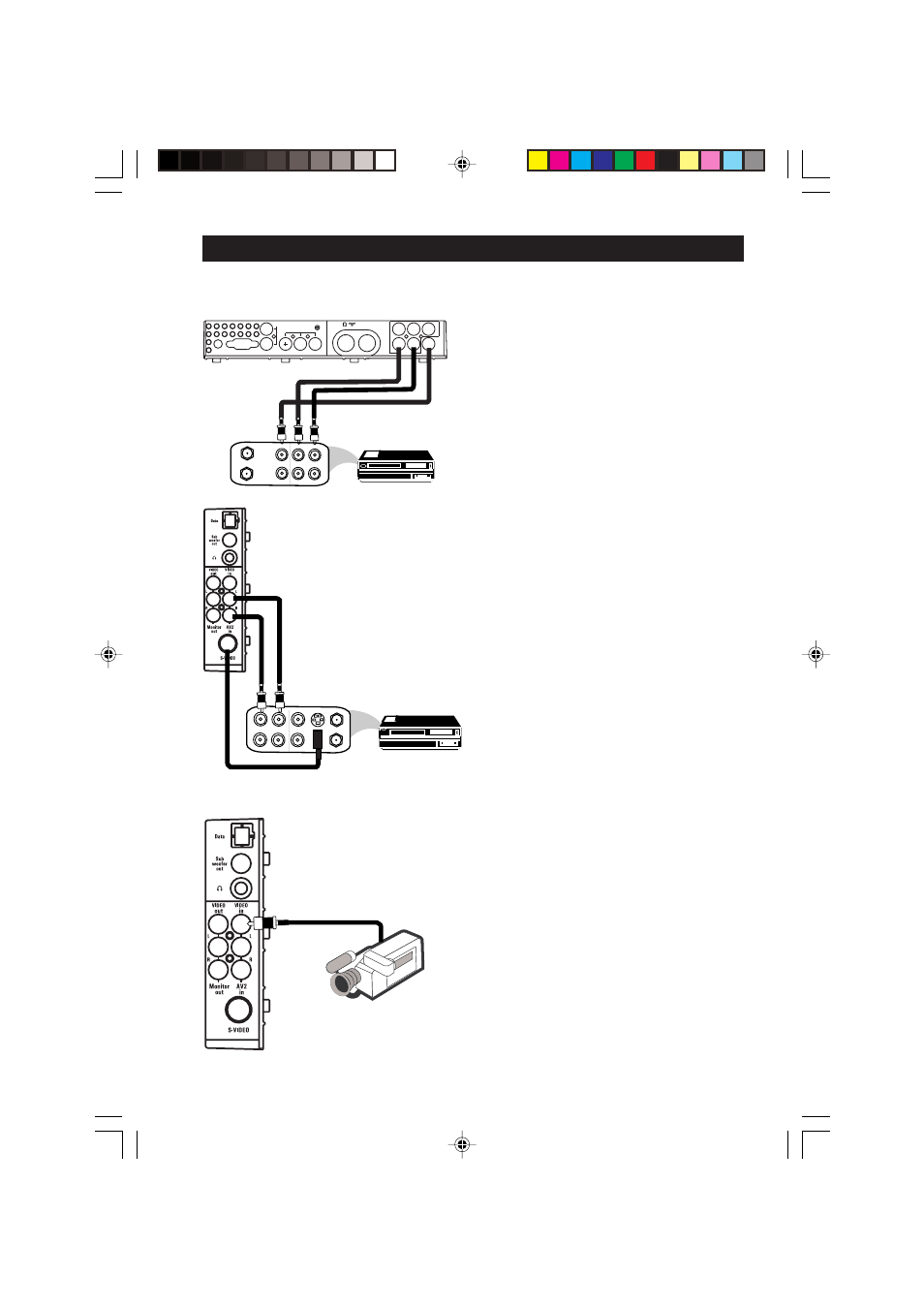

You can view the playback of VCR tapes (Video Disc players, camcorders, etc.) by using the
AUDIO and VIDEO INPUT sockets on the rear of the TV.
– Connect the VIDEO and AUDIO IN
sockets on the rear of the LCD TV to the
AUDIO and VIDEO OUT sockets on
the VCR.
The S-Video connection on the Side of
the LCD TV is used for the playback of
S-VHS VCR tapes, Video Discs, Video
Games or Compact Disc-Interactive (cd-i)
discs. Better picture detail and clarity is
possible with the S-Video playback as
compared to the picture from a normal
antenna (RF) connection.
– Connect the S-VIDEO socket on the
side of the LCD TV to the S-VHS OUT
socket on a S-VHS VCR.
– Connect the AUDIO IN sockets from
the rear of the TV to the AUDIO OUT
sockets on the VCR. Note : You need
not connect the VIDEO IN socket of the
LCD TV if S-VIDEO IN socket is
connected.
For more convenient direct playback
connections, the Side Audio/Video Input
sockets allow for quick and easy
connections, particularly Camcorder tape
recordings.
– Connect the S-VIDEO socket (if
available) from the Camcorder to the
Side S-VIDEOsocket of the TV. You
need not connect the Side VIDEO IN
socket of the TV if the S-VIDEO socket
is connected.
– Connect the AUDIO OUT sockets
(Right and Left) from the Camcorder to
the Side AUDIO IN sockets.
ANTENNA
OUT
IN
OUT
IN
AUDIO R L VIDEO
IN
OUT OUT
S-VIDEO
Back of S-VHS VCR
VCR (Equipped
with Video and
Audio sockets)
Rear of TV Monitor
out
AV1
in Audio
out
ANTENNA
OUT
IN
OUT
IN
AUDIO R L VIDEO
IN
OUT
Rear of VCR
VCR
COMP
VIDEO
INPUT FM ANT 75 Audio in (PC / HD)
HD input
DC in PC input (VGA)
L
R Y Pb Pr AV1
in
Pb Pr Y
R L
Audio in Video in
Camcorder
Side Controls
