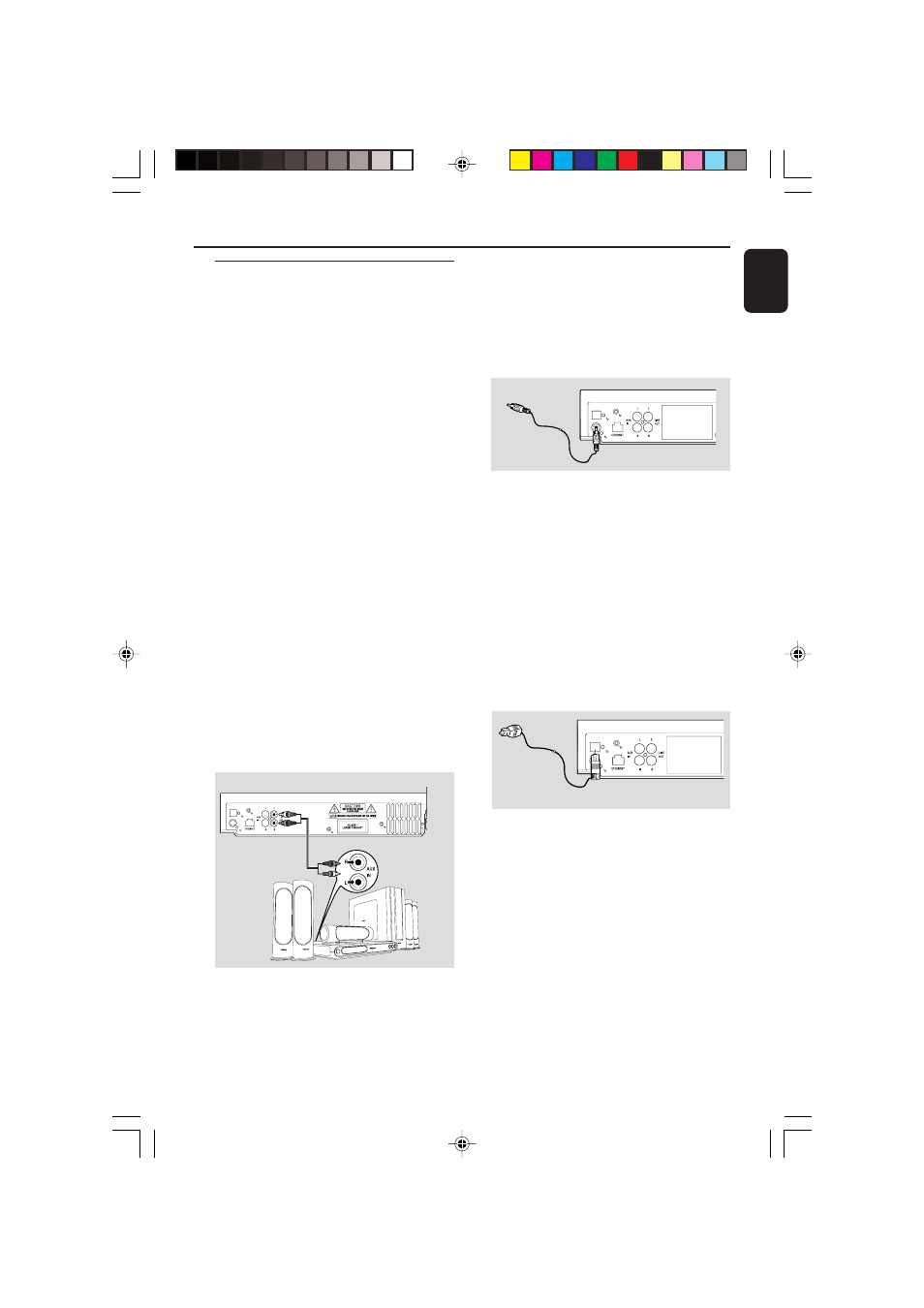

Rear connections
Warning:
Never make or change connections with
the mains supply switched on.
A Connecting to an audio system
You can easily connect your WAC5 to your
existing home audio systems, such as the audio/
video receiver, home theatre system, mini/micro
system, or multimedia speaker boxes (with built-
in amplifier) and audio amplifiers.
Using audio cables, connect one (one set) of
WAC5’s sound output terminals:
LINE OUT,
DIGITAL OUT or OPTICAL OUT to the
corresponding input terminals in the connected
device. For better sound output, use
DIGITAL
OUT or OPTICAL OUT if it is available on
the connected device.
LINE OUT:
1
Connect Center to an audio system:
a. Insert the red plug of the red/white audio
cables (supplied) to the red socket
LINE
OUT R and the white plug to the white
socket
LINE OUT L
b. Connect the other end of the audio cables to
the
AUX IN (or AUDIO IN) terminals of
the additional appliance, red plug to the red
socket
AUX IN R and white plug to the
white socket AUX IN L
OPTICAL OUT
DIGITAL OUT
2
Select AUX mode in the connected audio
system
Installation
(for illustration only)
DIGITAL OUT:
1
Insert the plug of digital audio cables (not
supplied) to the
DIGITAL OUT socket
2
Connect the other end of the audio cables to
the
DIGITAL IN terminal of an additional
appliance
OPTICAL OUT
DIGITAL OUT
3
Select the Digital Input mode (such as DI) in the
connected audio system.
Helpful hints:
– Always refer to the owner’s manual of other
equipment for details.
OPTICAL OUT:
1
Insert the plug of optical audio cables (not
supplied) to the
OPTICAL OUT socket
2
Connect the other end of the audio cables to
the
OPTICAL IN terminal of the additional
appliance.
OPTICAL OUT
DIGITAL OUT
3
Select the optical input mode in the connected
audio system.
Helpful hints:
– Always refer to the owner’s manual of other
equipment for details.
