8
OUTPUT INPUT
Use this configuration when connecting the TV to a cable TV system using a Cable Box.
Connect the cable from the Output
terminal on the back of the Cable
Box to the ANT terminal on the left
side of the TV.
CABLE BOX
TERMINAL ON THE BACK
OF THE CABLE BOX
Incoming Cable from
Antenna or Cable TV
System
Incoming Cable From Home Antenna (75 Ohm) / Incoming 75 Ohm Cable (From Cable Company)
Cable Connection - For reception of cable channels (01 - 125) connect the
cable supplied by your local cable company. Antenna Mode must be set to
CABLE. (Refer to Antenna Mode section.)
Note:
Certain cable systems offset some channels to reduce interference or have
Premium (scrambled) channels. A cable converter box is required for proper
reception. Check with your local Cable company for its compatibility requirements.

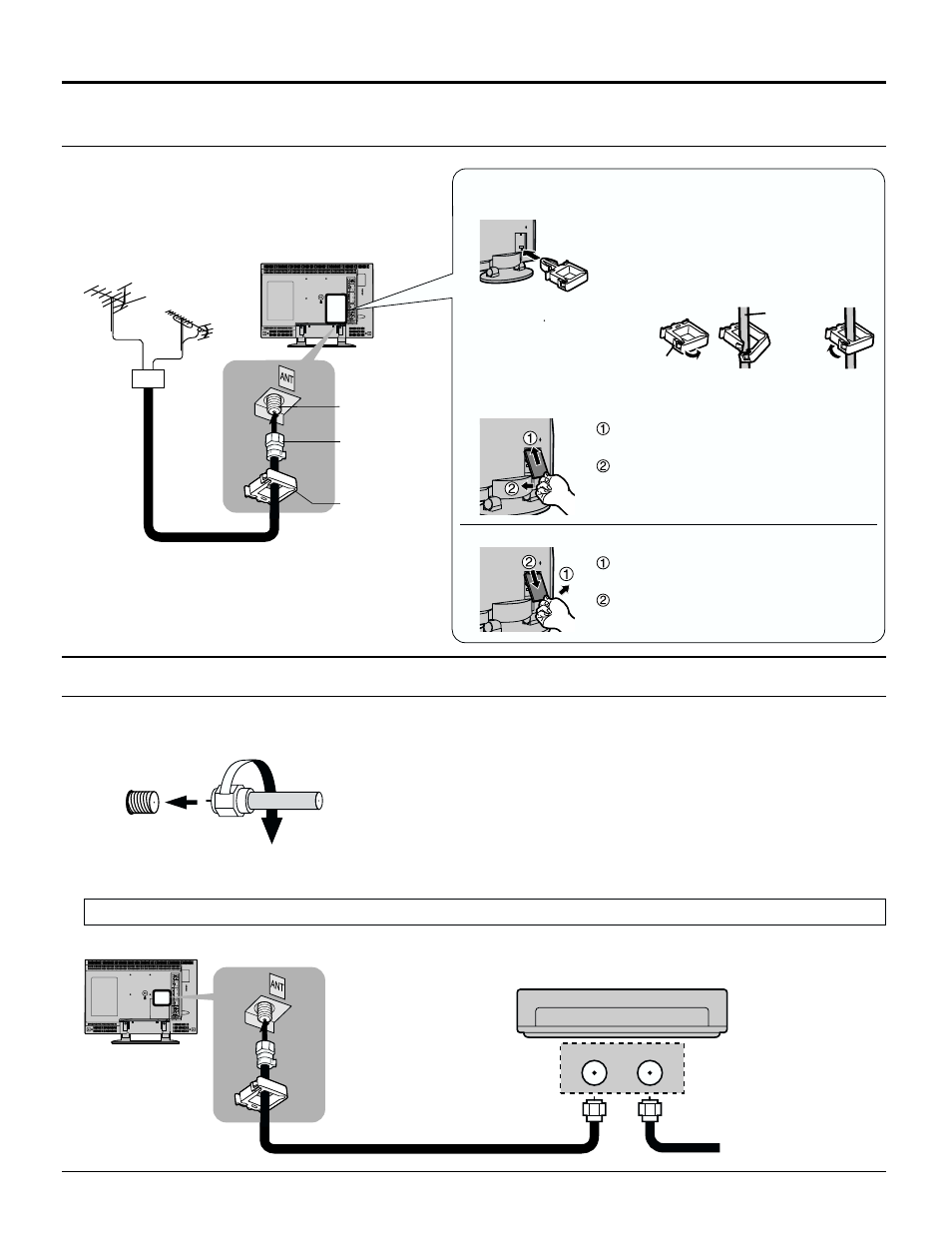

Connecting the Antenna Cable to the RF In Terminal
UHF Antenna
VHF Antenna
Mixer
75 Ohm Coaxial Cable
RF in Terminal
Coaxial
Antenna Plug
Clamper
Antenna Connection - For proper reception of VHF/
UHF channels, an external antenna is required. For
best reception an outdoor antenna is recommended.
Antenna Mode must be set to TV.
Installation
Antenna / Cable Connection
ANTENNA
TERMINAL ON
THE LEFT SIDE
OF THE TV
Antenna Connection (Cable Box, no VCR)
VHF/UHF
Using the Cable Cover
4. Installing the Cable Cover
3. Connect the antenna cable to RF in terminal.
2. Using the Cable Clamp
Insert the 2 upper claws into the
mating slots.
Press in the bottom section of the
cover.
Removing the Cable Cover
Release the 2 lower claws from their
slots.
Slowly pull the cover downward.
Claw
1. Installing the cable clamp.
Coaxial
cable
Open the cable clamp
and pass the antenna
cable through.
