– 85 –
Setting the Time Data
Locking the Time Code to an External Source
The time code generator of the VTR section can be locked to an external generator.

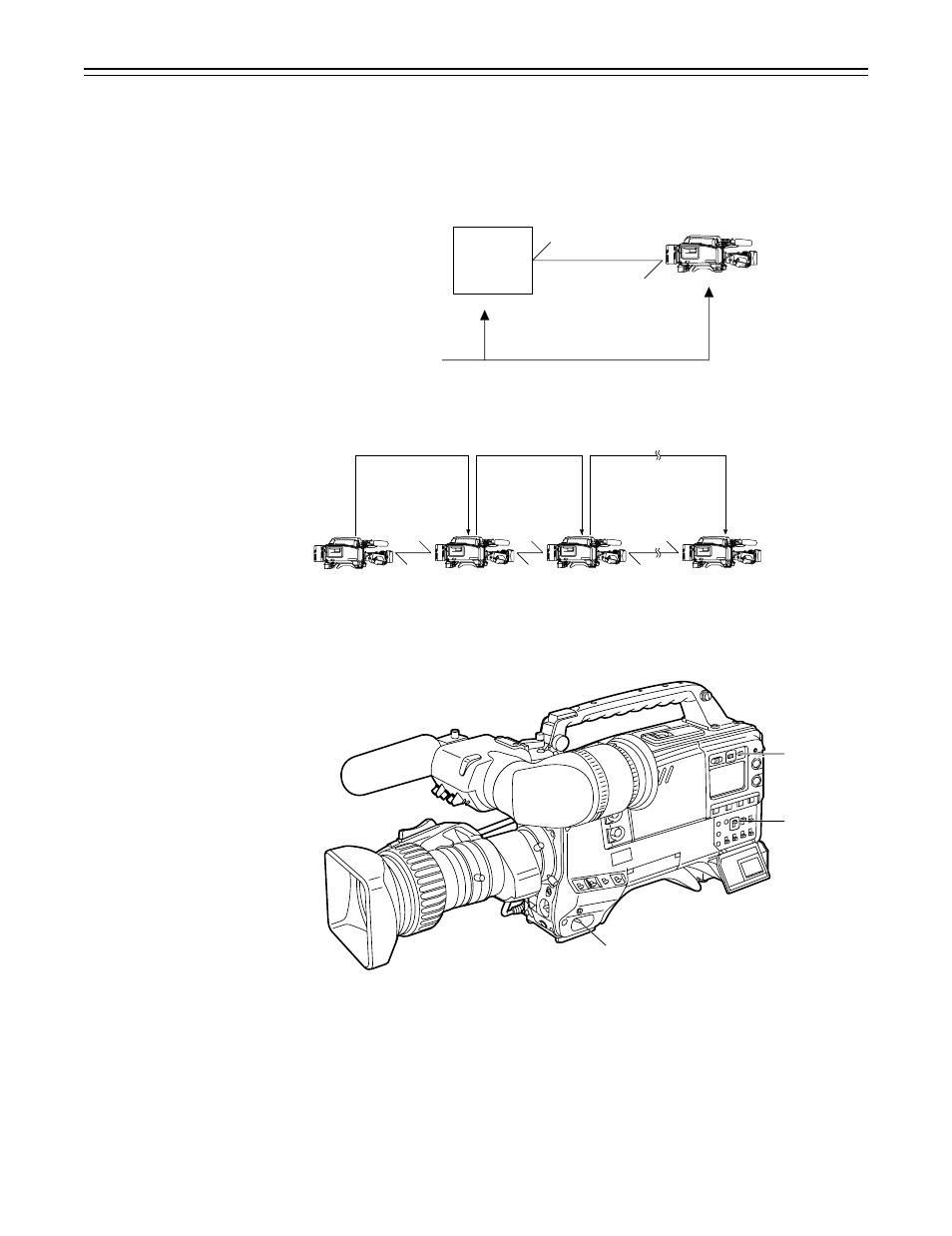

Example of connections for external locking
Example 1: Locking the time code to an external signal
Example 2: When a multiple number of AJ-SDC915 units are connected with one unit
serving as the master unit and the others as the slave units
Reference video signal
To the next unit
External Lock Operation Procedure
1
Set the POWER switch to ON.
2
Set the F-RUN/R-RUN switch to F-RUN.
3
Set the DISPLAY switch to TC.
4
Supply reference time code and reference video signals, whose phases correlate in a way
that meets the time code standards, to the TC IN and GENLOCK IN/(VIDEO IN) connectors,
respectively.
MASTER SLAVE SLAVE
CAM OUT
TC OUT TC OUT TC OUT
TC IN TC IN TC IN
GENLOCK
IN
GENLOCK
IN
GENLOCK
IN
CAM
OUT CAM
OUT
2
3
1
GENLOCK IN
GENLOCK IN
TC OUT
TC IN
Reference
time code
