– 27 –

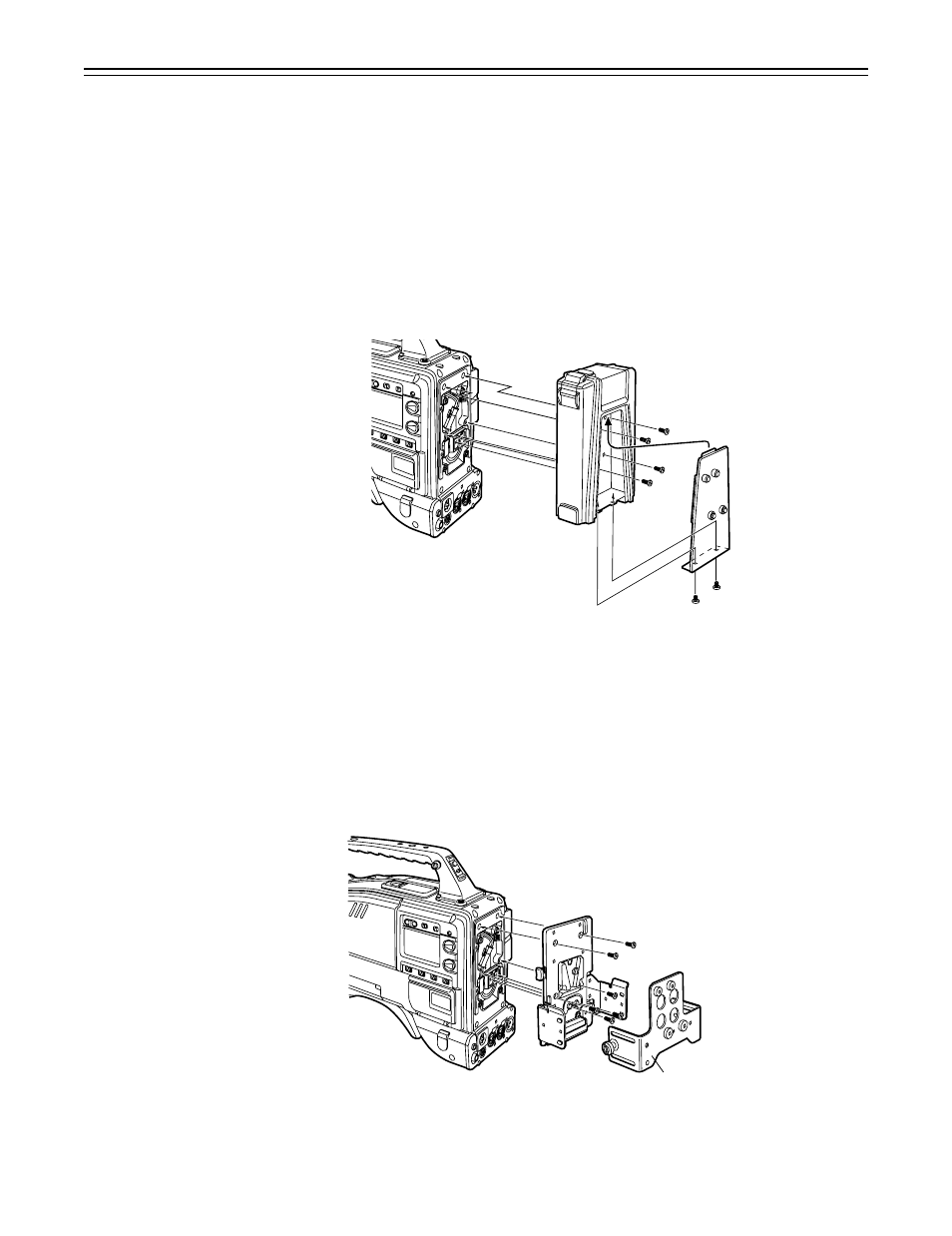

Using the Sony BP-90 Battery Pack
1
Mount the accessory battery mounting connector.
(See the preceding page.)
2
Mount the BP-90 battery case.
A Tighten the mounting screws.
B
Tichten the power supply contact screws.
C
Insert the top of the detached cover in the direction of the arrow.
D Align the hole at the bottom (metal part) of the cover with the bottom of the case and mount
the cover to the battery mounting connector with the screw.
Using the Sony BP-L60/BP-L90 lithium-ion Battery Pack
1
Attach the supplied battery mounting terminals.
2
Attach the lithium-ion battery holder.
A As shown in the figure, remove the battery clamp, and attach the holder using the mount-
ing screws.
B Tighten the power supply contact screws.
C Put the battery clamp back into place.
| Notes {
Á The unit’s power must be set to OFF before the plug is inserted or removed.
Á Take care when attaching the battery case/battery holder that the wires are not pinched.
Battery clamp
Power Supply
