MAINTENANCE
Toe Alignment
Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 1/8" to 1/4" (3-6 mm) toe out.
1. Place the handlebars in a
straight-ahead position.
2. Place stands in front of
the vehicle, perpendicular
to the rear tires.
3. Tie an elastic string
around the stands, mak-
ing sure the string just
touches the side surface
of the rear tires on each
side of the vehicle and
goes around the stands in
front of the vehicle.
4. Measure the distance
from the string to the rim
at the front and rear of the
front rim. Rear measure-
ment should be 1/16" to
1/8" (2-3 mm) more than
the front measurement.
NOTE: If you discover
improper alignment,
see your Polaris dealer
for service.
WARNING
Severe injury or death can result from improper toe alignment and
adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments
should be performed by an authorized Polaris dealer.

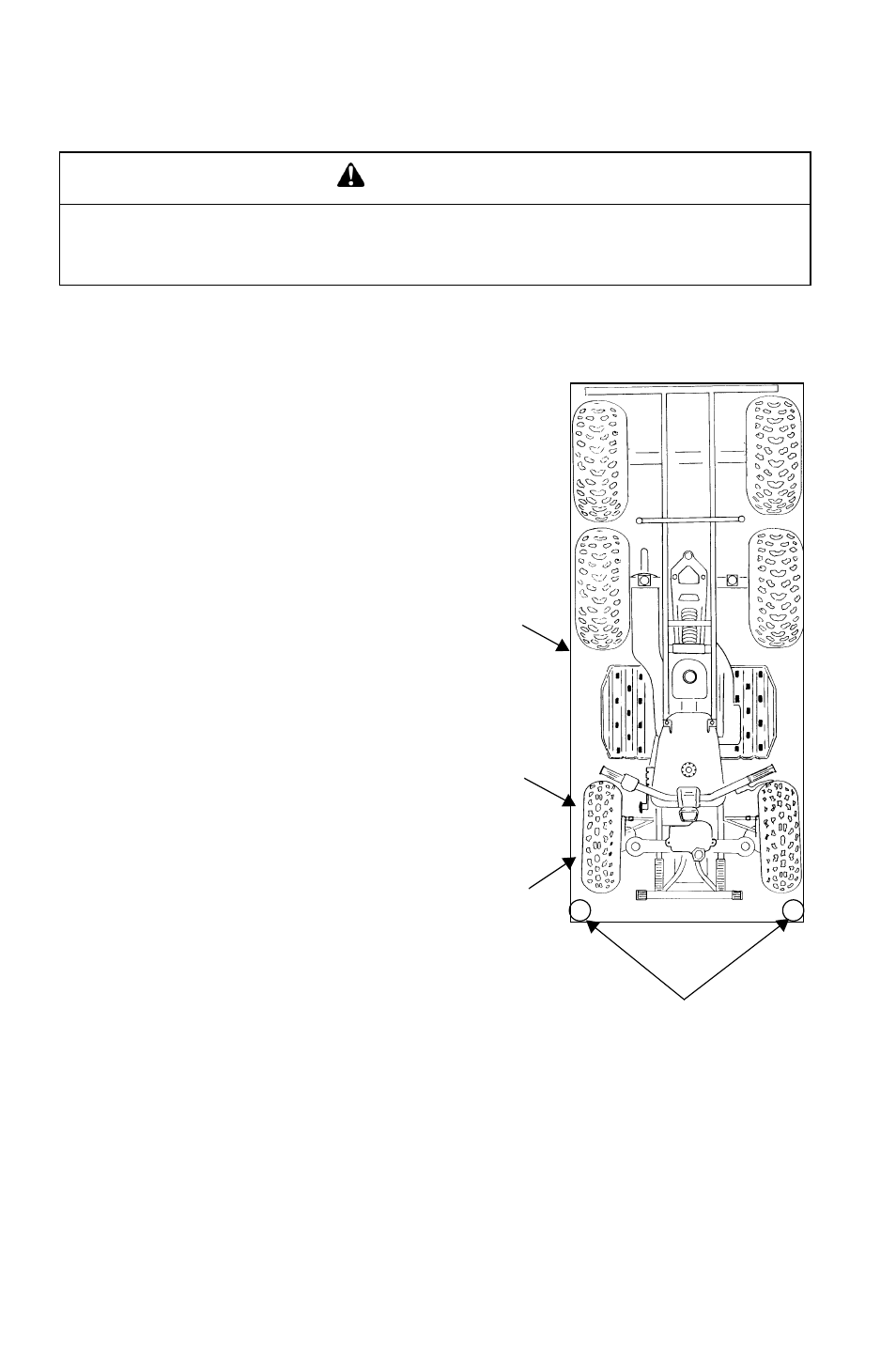

String
Stands
Rear of
Front Rim
Front of
Front Rim
