Before Use

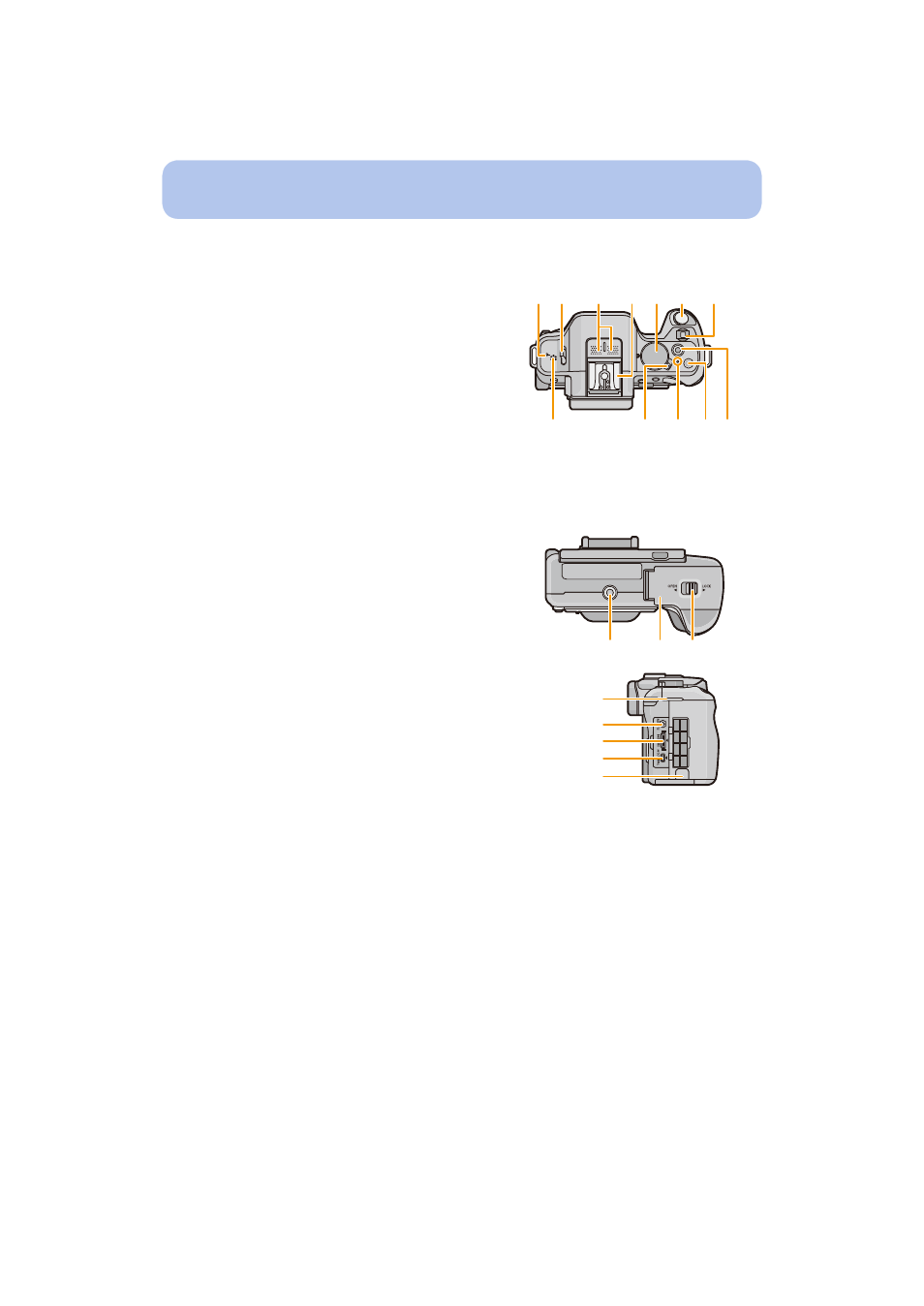

22 Focus distance reference mark (P103)
23 Flash open lever (P84)
24 Stereo microphone (P162)
• Be careful not to cover the microphone with your
finger. Doing so may make sound difficult to
record.
25 Hot shoe (P206)
26 Mode dial (P31)
27 Shutter button (P38)
28 Function lever (P15 , 81 , 88)
29 Speaker (P71)
• Be careful not to cover the speaker with your
finger. Doing so may make sound difficult to hear.
30 Camera ON/OFF switch (P29)
31 Status indicator (P29)
32 Intelligent Auto button (P42)
33 Motion picture button (P53)
34 Tripod mount (P217)
• A tripod with a screw length of 5.5 mm (0.22 inch)
or more may damage this unit if attached.
35 Card/Battery door (P26)
36 Release lever (P26)
37 Shoulder strap eyelet (P20)
• Be sure to attach the shoulder strap when using the
camera to ensure that you will not drop it.
38 [REMOTE] socket (P208)
39 [HDMI] socket (P193)
40 [AV OUT/DIGITAL] socket (P193 , 198 , 201 , 202)
41 DC coupler cover
• When using an AC adaptor, ensure that the Panasonic
DC coupler (optional) and AC adaptor (optional) are used.
(P208)
