INSTALLATION
Dashboard or
Console

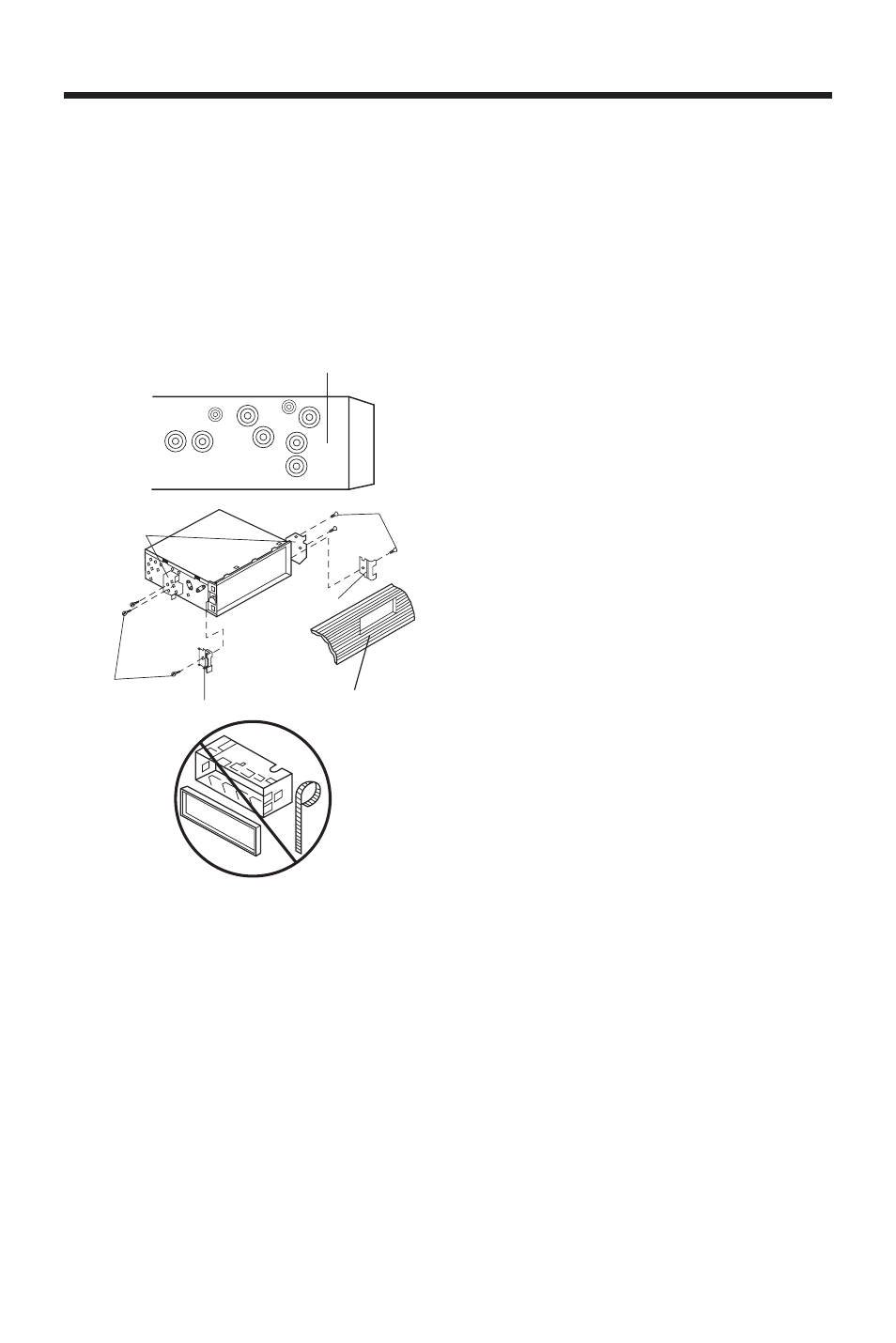

Side view showing
Screw Holes marked T, N or S
Factory Radio
Mounting
Bracket
Hook
Screw
Screw
Hook
DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota or
Suzuki, follow these mounting instructions.
Use the screw holes marked T (Toyota),
N (Nissan) or S (Suzuki) located on both
sides of the unit to fasten the unit to the
factory radio mounting brackets supplied
with your vehicle.
To fasten the unit to the factory radio
mounting brackets.
1. Use a screwdriver to loose the hook's
screws on the front left and right sides
of the unit and remove the hooks.
2. Align the screw holes on the bracket
with the screw holes on the unit, and
then tighten the screws on each side.
3. Fasten with the supplied truss screws
(5x5mm) or flush surface screws
(4x5mm), depending on the shape of
the screw holes in the bracket.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
