11. Put the batteries in place and plug the 2-pin battery harnesses
into the adjoining harnesses that are also located on the control
module. See figures 19 and 20.
12. Connect the battery tie-down strap.
13. If you removed the utility tray from the rear component, connect
the 6-pin motor harness plug. See figure 21.
14. Gently place the rear shroud over the seat pedestal.
15. Connect the rear light harness. See figure 22. Make sure that
the rear plastic shroud does not make any contact with the rear
wheels.
16. Slide the shroud down in place.
17. Carefully lift the seat and slide the small seat post (on the seat
bottom) into the seat post tower. See figure 23.
18. Rotate the seat until it locks into place.
V I I I . A S S E M B L Y A N D D I S A S S E M B L Y

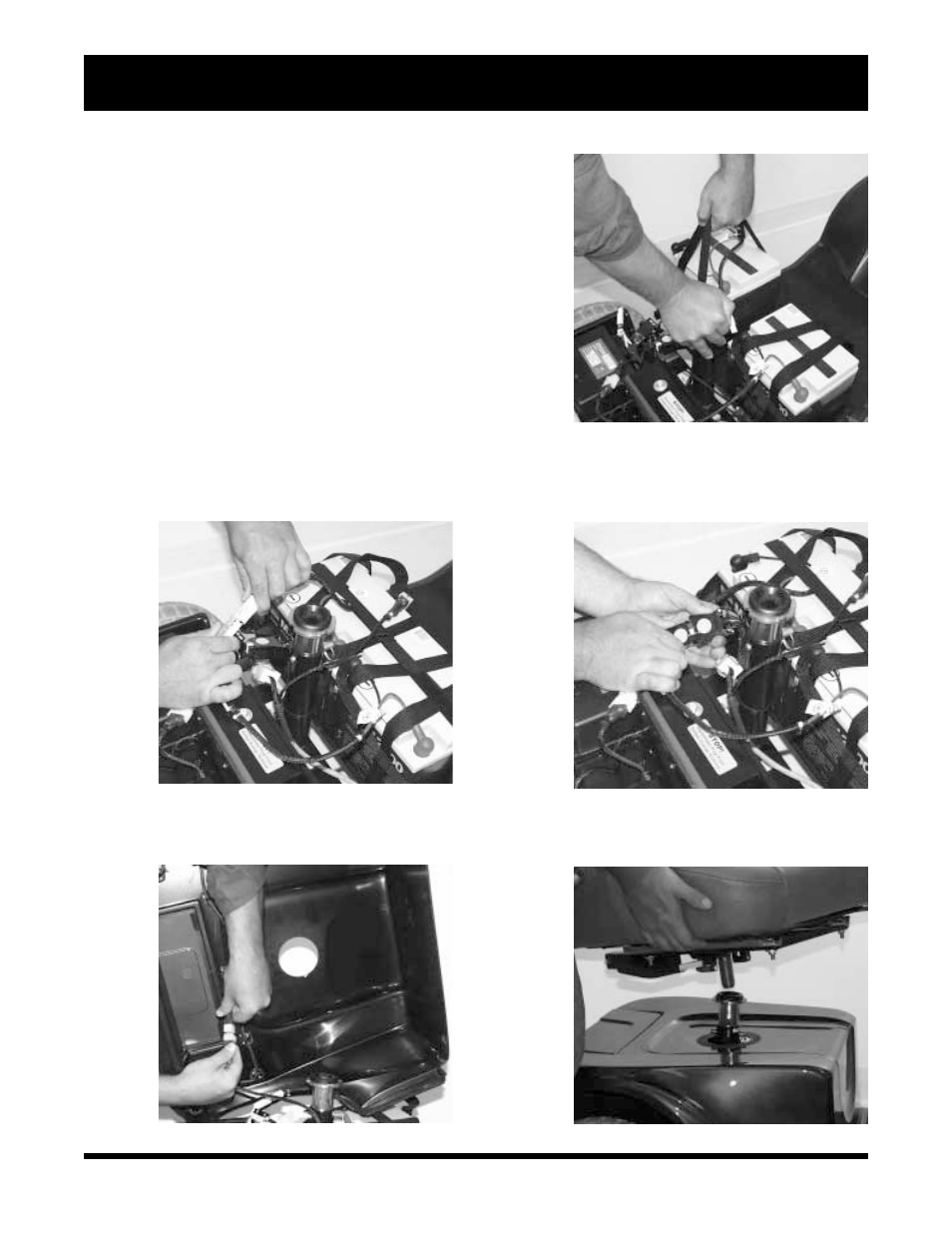

Figure 20. Connect Battery Harnesses
Figure 21. Connect Motor Harness Plug
Figure 23. Slide the Seat into Place Figure 22. Connect Rear Light Harness
Figure 19. Put Batteries in Place
