14 Hurricane
Charger Cord
Battery Connectors
Ammeter
Onboard Battery
Charger
Front-to-Rear
Connector
Main Circuit Breaker
(Reset Button)
Utility Tray
Freewheel Lever
Electronic Controller Module

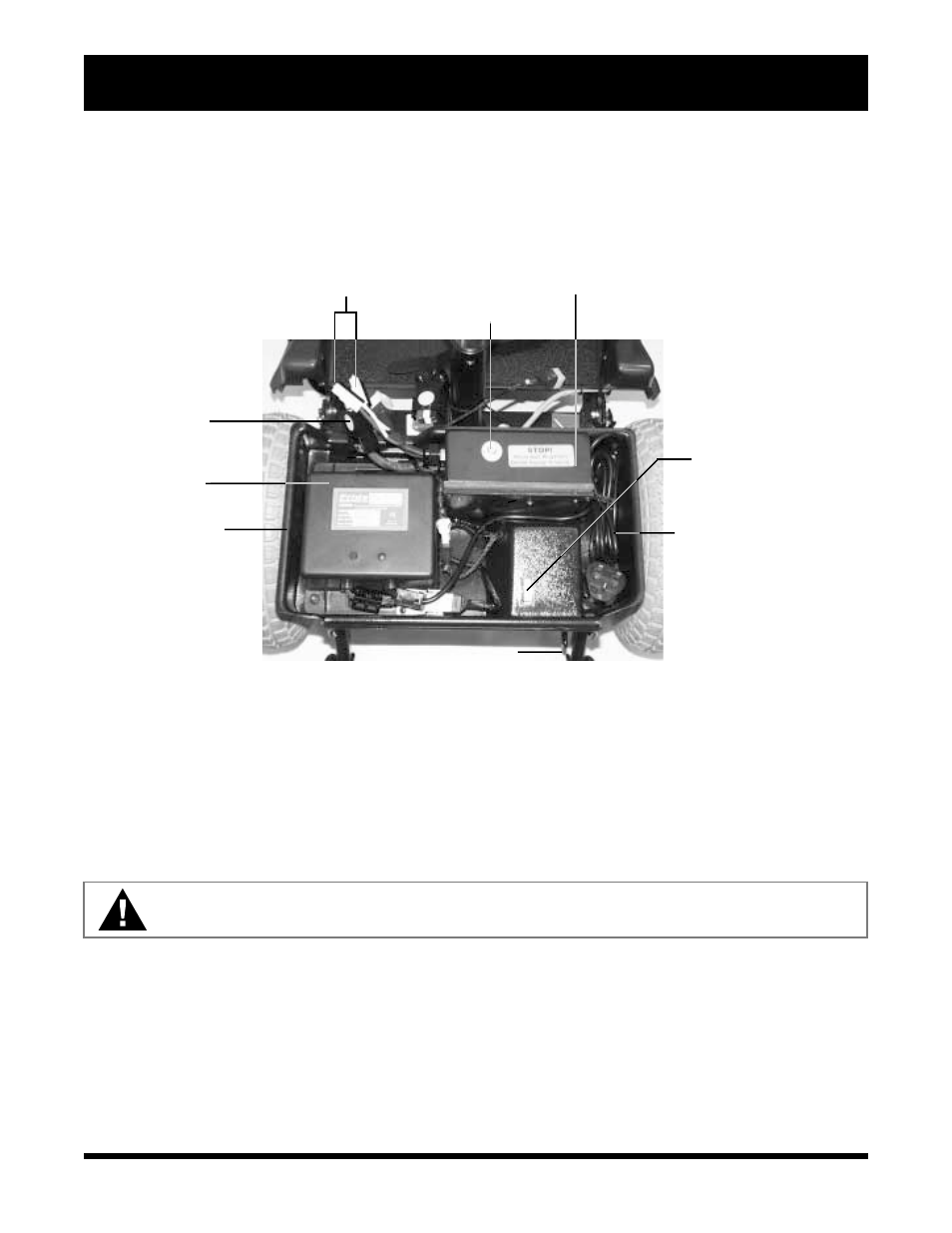

Figure 8. Utility Tray Components
REAR SECTION
The onboard battery charger, charger cord, batteries, electronic controller module, main circuit breaker,
freewheel lever, and the motor/transaxle assembly are located on the rear section of your Hurricane. See
figure 8. (The batteries and motor/transaxle assembly are not shown in figure 8.) Refer to VIII. “Assembly and
Disassembly” for instructions on removing the rear shroud.
I V . D E S C R I P T I O N
Onboard Battery Charger
The onboard battery charger converts household current (AC) to direct current (DC) and charges your Hurricane’s
batteries. See V. “Batteries and Charging.”
n The charger is located on the utility tray.
n The charger is a black box with a green LED indicator on the exterior of the case.
n The charger cord extends from the charger. Keep the cord coiled when not in use.
WARNING! For your safety, use only the supplied onboard battery charger.
Batteries
The batteries store the electrical energy that powers your Hurricane. For directions on charging your batteries,
see V. “Batteries and Charging.”
Electronic Controller Module
This module is located behind the batteries and at the forward right corner of your Hurricane’s rear section. The
electronic controller module receives electrical signals from the console controls and sends power to the motor, the
brakes, and the lighting system.
