V I I . C O M F O R T A D J U S T M E N T S

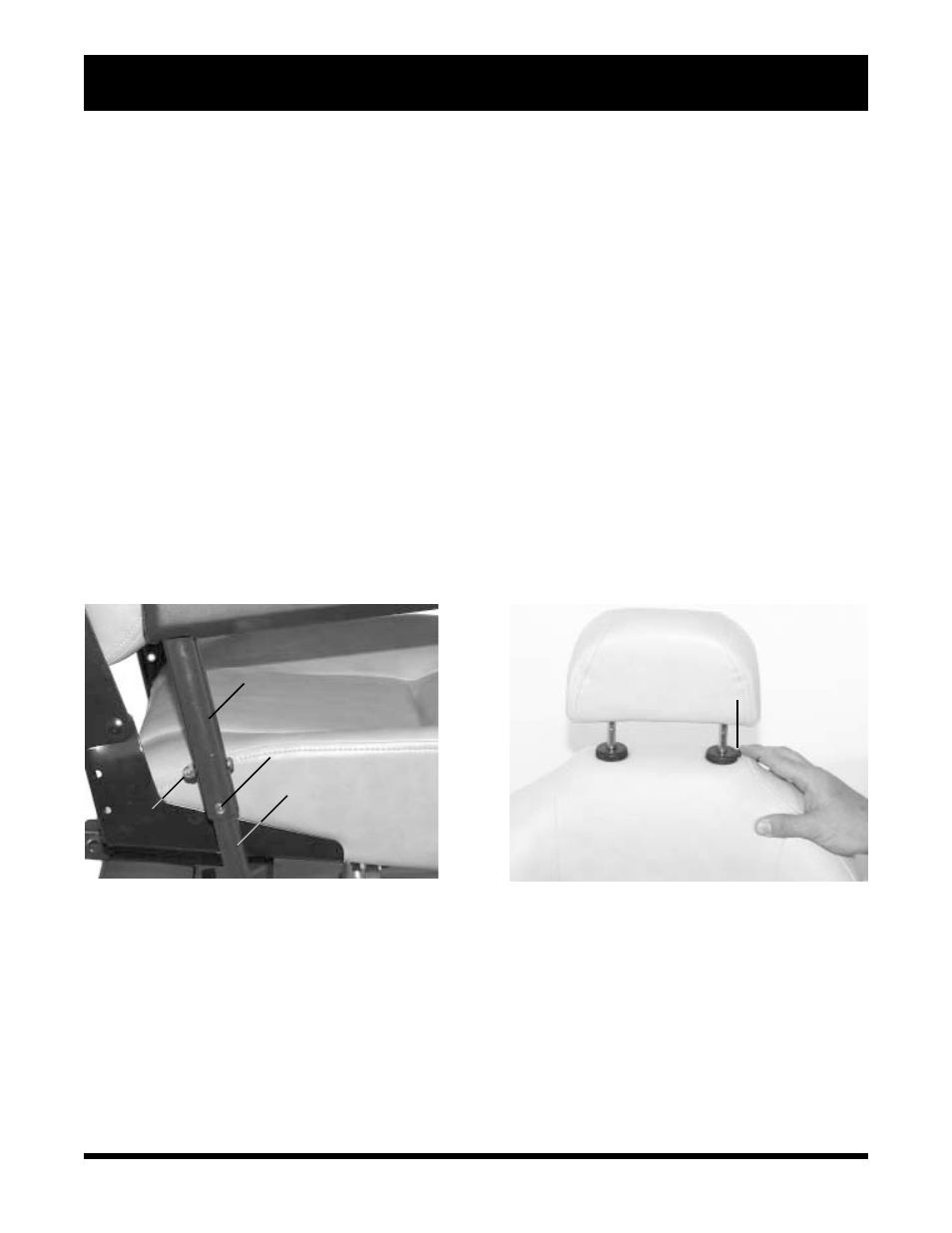

Figure 14. High-Back Seat Headrest Adjustment
Lock Release Button
Figure 13. Armrest Height Adjustment
Acorn Nut
Setscrew
Height Adjustment Tube
Armrest Upright
ARMREST HEIGHT ADJUSTMENT
You will need the following tools to adjust the height of the armrests:
n 5/32” hex key
n 1/8” hex key
n 7/16” wrench
1. Loosen the setscrew on the side of the height adjustment tube with the 1/8” hex key. See figure 13.
2. Loosen and remove the acorn nut and screw holding the height adjustment tube in place.
3. Raise or lower the height adjustment tube to the desired height.
4. Align the holes in the adjustment tube with the holes in the armrest upright.
5. Insert the screw through the holes in both the height adjustment tube and the armrest upright.
6. Install and tighten the acorn nut.
7. Tighten the setscrew on the side of the height adjustment tube.
8. Repeat for the other armrest.
HIGH-BACK SEAT HEADREST ADJUSTMENT
If your Hurricane is equipped with a high-back seat, it has an adjustable headrest that locks into three heights.
1. Press the lock release button to unlock the headrest. See figure 14.
2. Slide the headrest up or down until it locks into the desired position.
