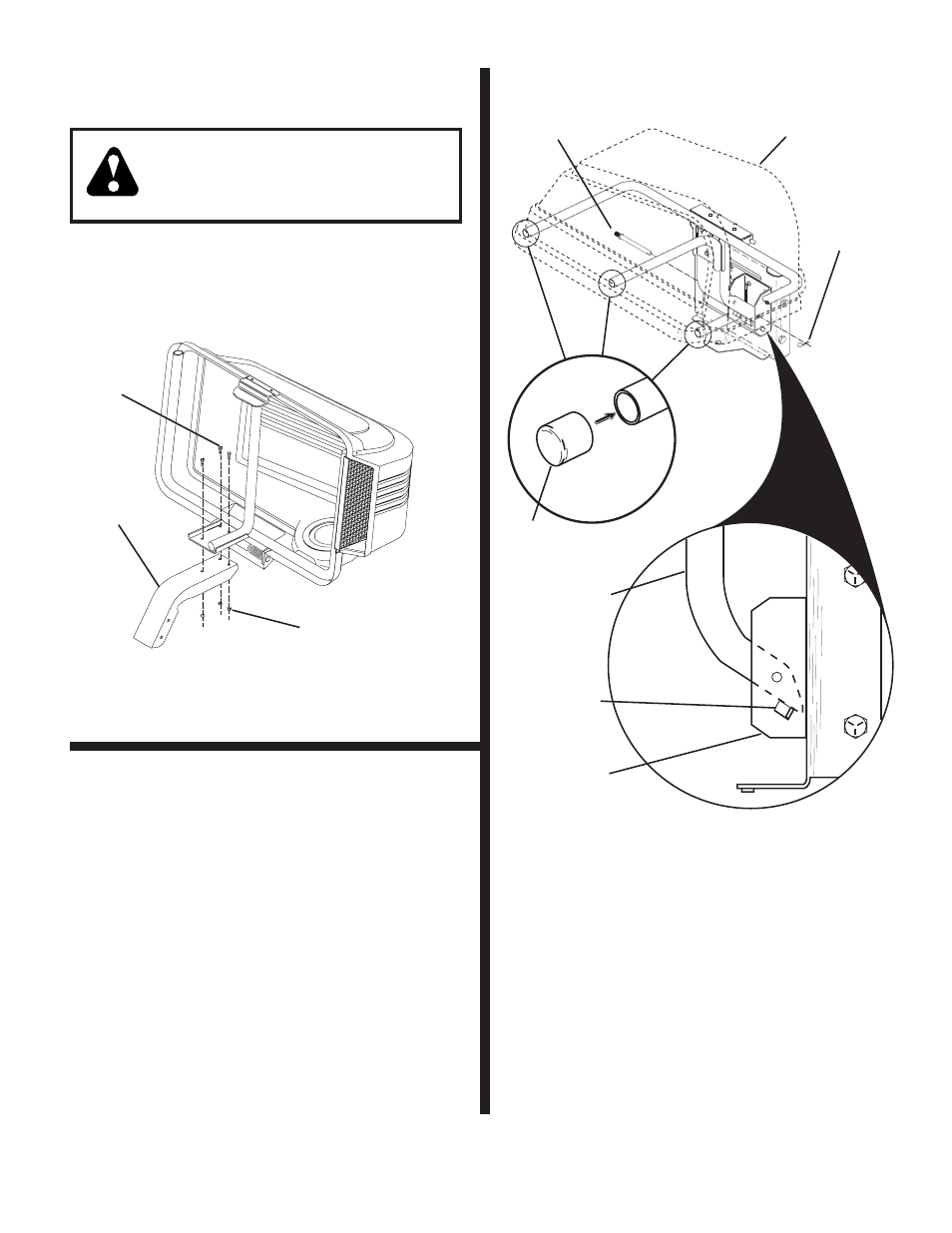

SUPPORT POST (See Fig. 4)
Use Hardware - - GROUP "C"
CAUTION: Container sup port is spring
loaded and locked to the cover. Handle
cover assembly carefully so as not to
unlatch the cover from the container
support.
1. Rotate cover assembly onto its side as shown.
2. Assemble support post to container support with
the three (3) carriage bolts and locknuts. Tighten
securely.
FIG. 5
END CAP
COVER ASSEMBLY
SUPPORT POST
MOUNTING
BRACKET
LANCED TABS
BRACKET
SUPPORT PIN
RETAINER
SPRING
4
MOUNTING TO TRACTOR (See Fig. 5)
Use Hardware - - GROUP "D"
NOTE: For ease of assembly, you may wish to obtain the
as sis tance of another person for mounting assembly to
tractor.
1. Raise seat on tractor to allow assembly to be
mounted.
2. With cover closed, lift assembly and place support
post inside mounting bracket. Allow assembly to rest
on lanced tabs of mounting bracket.
3. Line up holes in mounting bracket with holes in support
post and insert bracket support pin. Secure with retainer
spring.
4. Unlatch and open cover.
5. Install the three (3) tubing end caps onto container
support.
6. Tap each end cap onto container support tubes to seat
securely.
5
FIG. 4
LOCKNUTS
CARRIAGE
BOLTS
SUPPORT
POST
