DEH-1500R/XU/EW

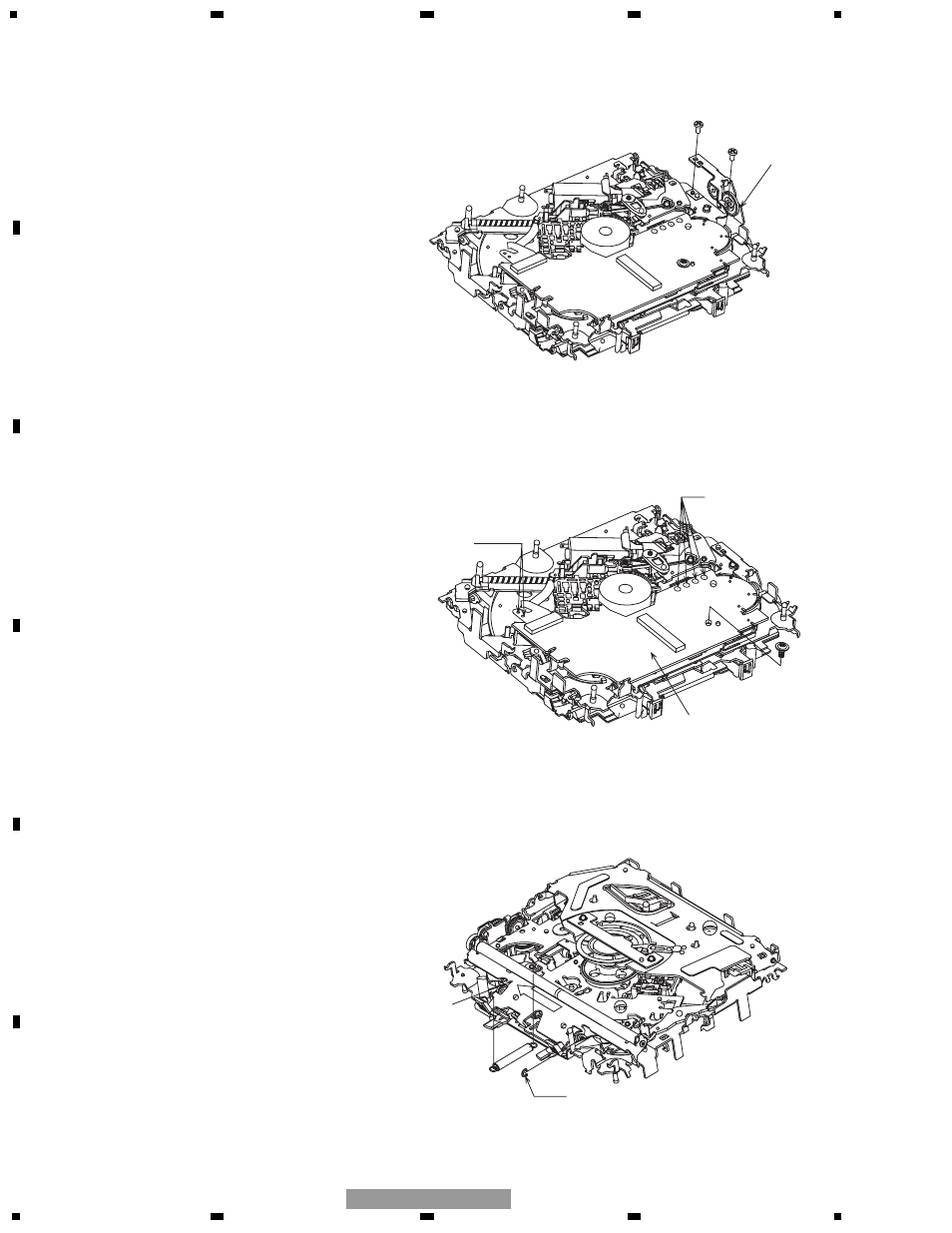

- Removing the CD Core Unit(S10)
1. Apply shorting solder to the Pickup flexible cable.
Disconnect the cable.
2. Remove the solder from the four leads, and loosen
the
screw.
3. Remove the CD core unit(S10).
Caution: When assembling the CD core unit(S10), set
the mechanism to the clamp mode to protect the
switches from any damage.
- Removing the Roller Arm Assy
1. Remove the guide arm Assy and set the mechanism
to the eject mode.
2. Remove the CD core unit(S10). (You do not have
to remove the solder from the four leads.)
3. Remove the spring and E-shaped ring from the
fulcrum
shaft.
4. Slide the roller arm Assy in the direction marked
with an arrow.
Bevel Gear
Bracket
Solder
Shorting
Solder
CD Core Unit(S10)
E-Shaped Ring
Roller Arm Assy
