System connections 3 (with msu) – Panasonic AK-HC3500P User Manual
Page 21
1

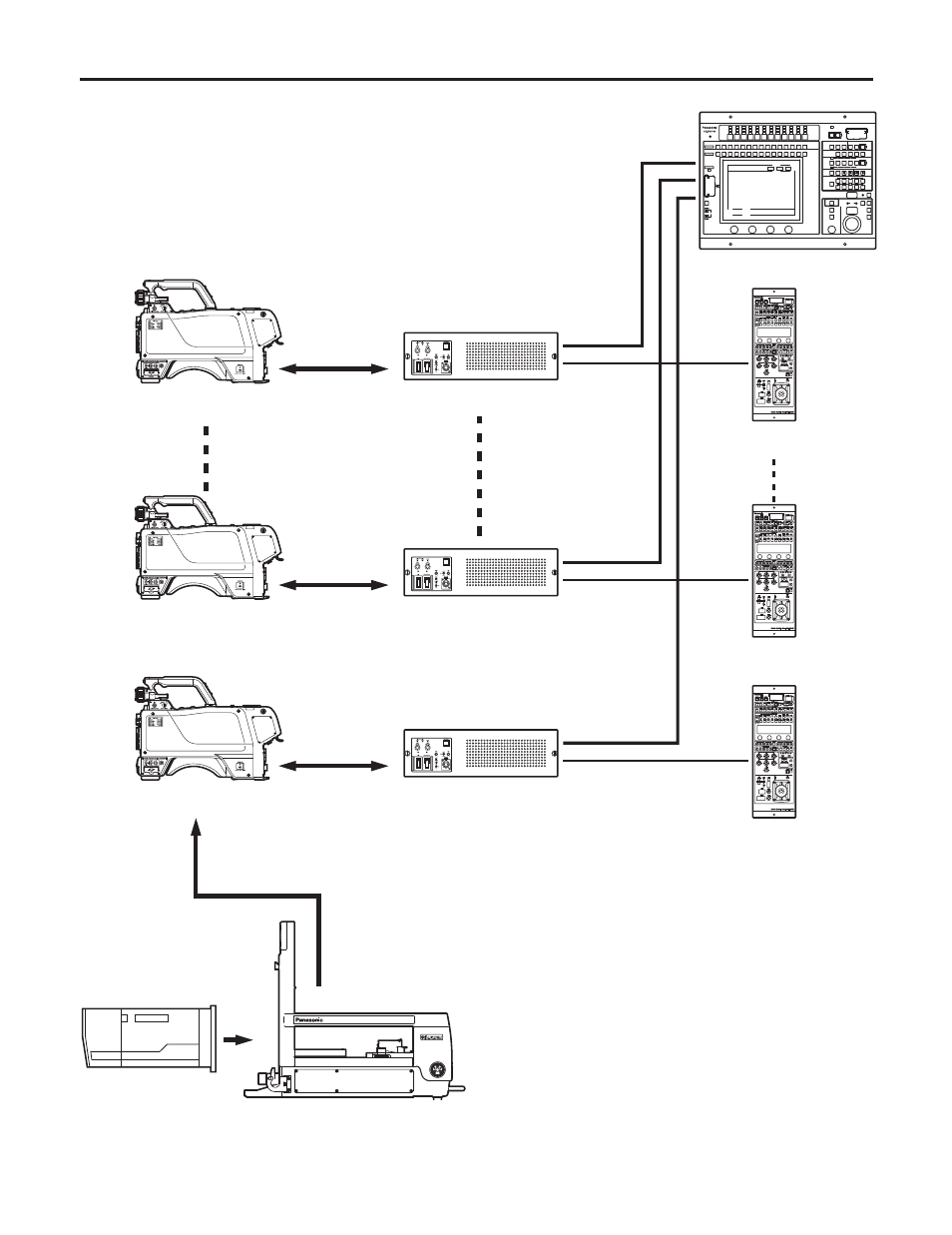

System connections 3 (with MSU)
Optical cable
Large lens
Multi-Format Camera
AK-HC3500
Master Setup Unit
AK-MSU935
Remote Operation Panel 1
AK-HRP931
Camera Control Unit 1
AK-HCU931
Multi-Format Camera
AK-HC3500
Multi-Format Camera
AK-HC3500
Camera Control Unit 11
AK-HCU931
Camera Control Unit 12
AK-HCU931
Remote Operation Panel 11
AK-HRP931
Remote Operation Panel 12
AK-HRP931
Buildup Unit
AK-HBU3500
Optical cable
Optical cable
A multiple number of cameras (up to 1 units) can be controlled in one location using the MSU.
The cameras can be controlled by both the ROPs and MSU.
