System connections 1 (with multi-format camera) – Panasonic AK-HC3500P User Manual
Page 19

19

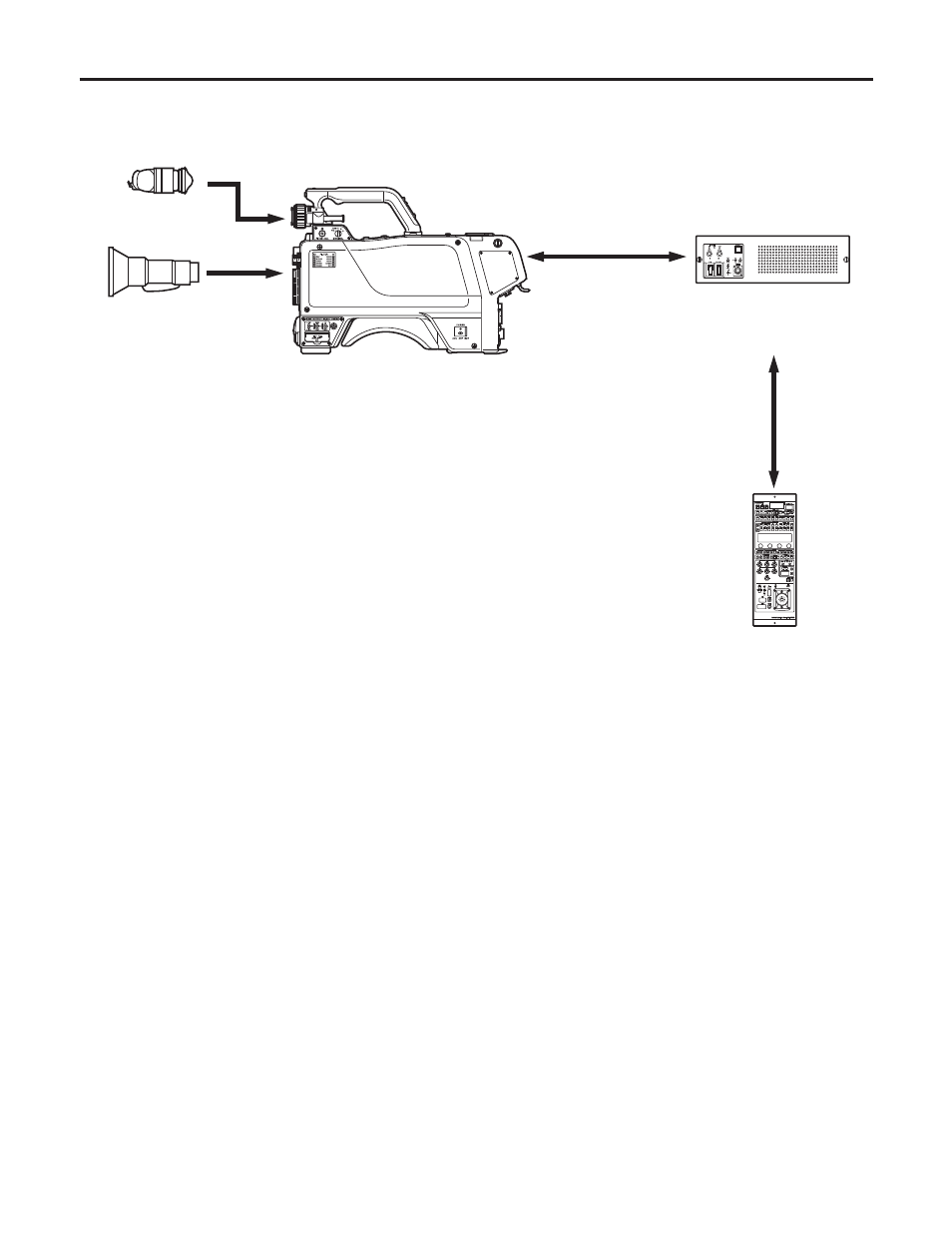

System connections 1 (with Multi-Format Camera)
2˝ Electronic HD Viewfinder
AJ-HVF21
Lens
Multi-Format Camera
AK-HC3500
ROP cable
Remote Operation Panel
AK-HRP931
Camera Control Unit
AK-HCU931
Optical cable
Before proceeding with the connections, set the CCU power switch to the OFF position.
Connect the optical cable to the Multi-Format Camera and CCU.
Connect the ROP cable to the CCU and ROP.
When the camera power switch is set to ON after the CCU main power switch has been set to ON, the camera can be
controlled using the ROP.
Upon completion of shooting, set the CCU camera power switch and main power switch to OFF.
