11
Connecting the Unit

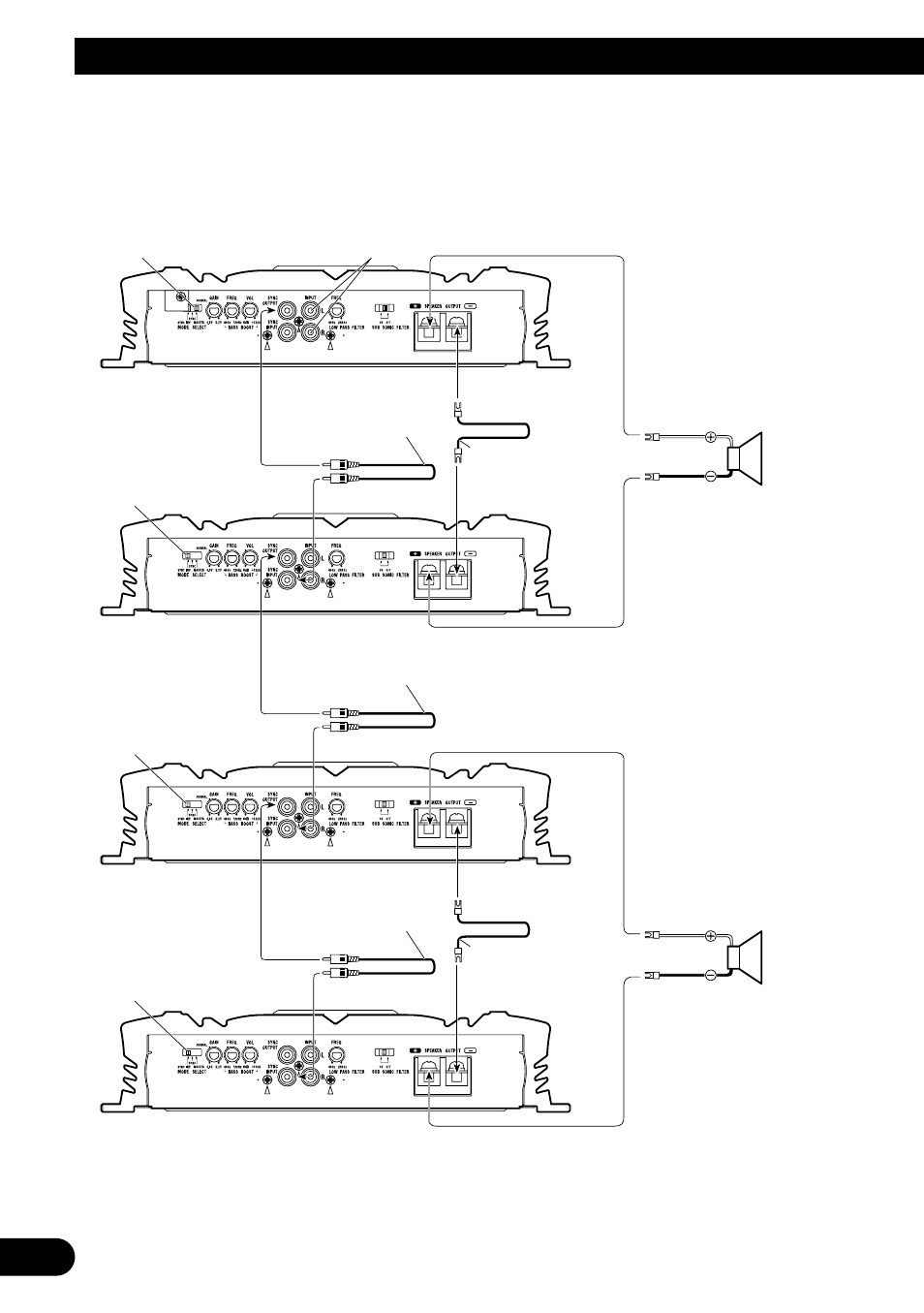

Four Amplifier Bridged
• Speaker wire size must be 12 AWG minimum.
• Load may be any combination of speakers but impedance must be 4
Ω or larger.
MODE SELECT switch
must be in MASTER position.
Connecting wire with
RCA pin plugs (sold
separately).
Connecting wire with
RCA pin plugs (sold
separately).
Connecting wire with
RCA pin plugs (sold
separately).
Connecting
speaker wire
(sold separately).
4
Ω
minimum
2,000 W
4
Ω
minimum
2,000 W
MODE SELECT switch
must be in SYNC INV
position. Before setting to
the position, remove the
screw and the stopper.
MODE SELECT switch
must be in SYNC INV
position. Before setting to
the position, remove the
screw and the stopper.
MODE SELECT switch
must be in SYNC INV
position. Before setting to
the position, remove the
screw and the stopper.
Connecting
speaker wire
(sold separately).
Connect to a car stereo.
For details, see the “Connection Diagram” section.
