4 Model 3087 Quick Start Guide
IP Interfaces:
ID | Name | IP Address | DHCP | Transport
---|------|----------------|----------|--------------
1 | ip1 | 192.168.200.10 | disabled |
---------------------------------------------- ------
2. Modify the IP address for the LAN port according to your network requirements.
fi ip set interface ip1 ipaddress 10.10.10.5 255.255.255.0
Note The above IP address ( 10.10.10.5/24) is only an example. You must choose an IP address on the same
subnet as your PC.
3. Verify the new address is correct and save it in system boot memory.
fi ip list interfaces
fi system config save
fi
3.0 Connect to the local IP network
Now you can connect the ipRocketLink to your local IP network and complete the remaining configuration from
your PC using a standard web browser.
Connect the ipRocketLink’s Ethernet port (green) to the same Ethernet segment as your PC (see
figure 2 ). The
front-panel Ethernet Link LED should turn on. If it does not, press the rear-panel MDI-X switch so that the Ethernet
Link
LED illuminates.
You can check the connection with the ping command. For example shown in figure 2 , you would ping
10.10.10.5 from a PC on the IP network.

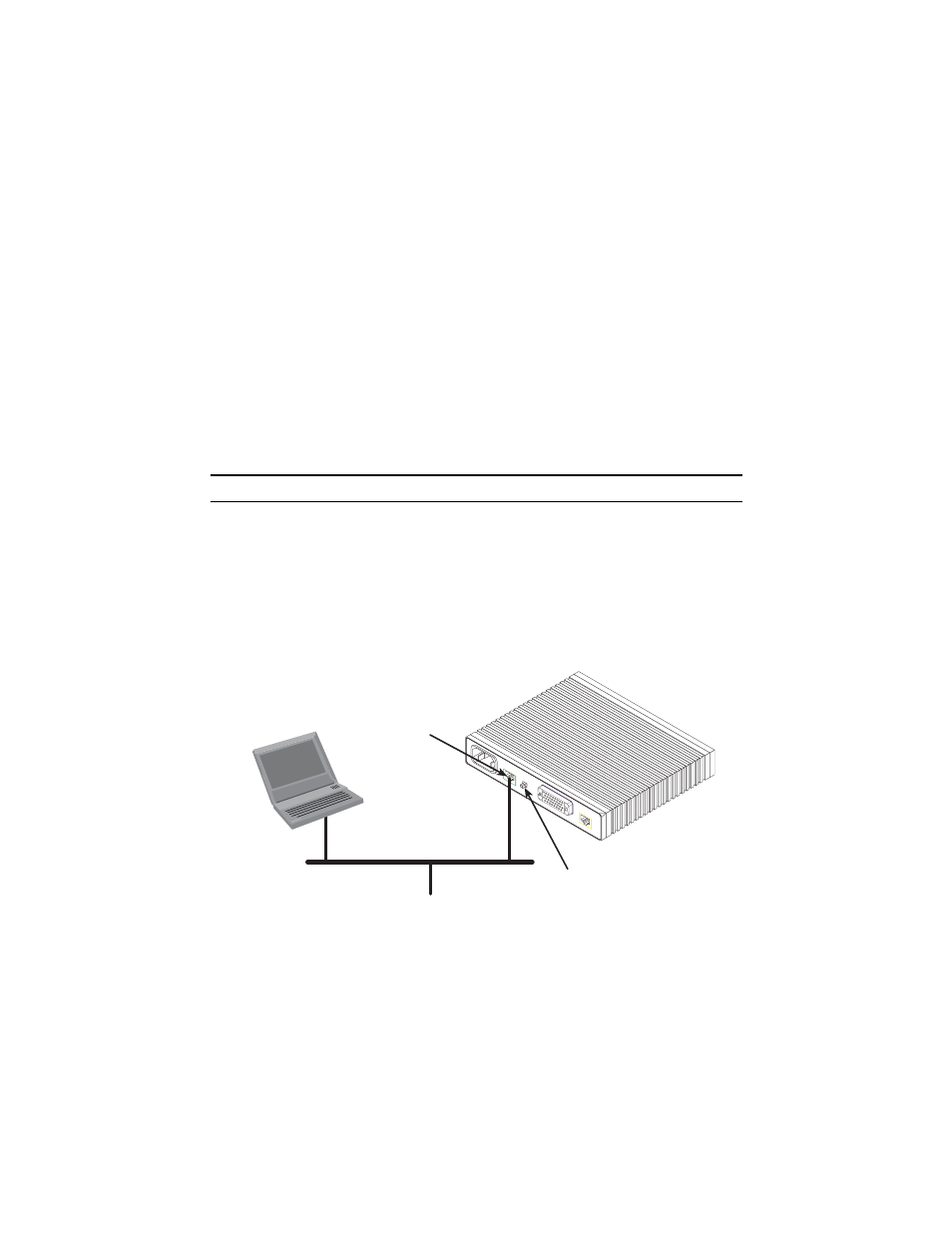

Figure 2. Connecting the ipRocketLink to the local IP network
Crossover
10/100
Ethernet
DSL
Power
MDI-X
Connect to Ethernet port
Ethernet port
MDI-X switch
PC
Interface Port
