The ISP1122 overcurrent detection circuit has been designed with a nominal trip
voltage (
∆
V
trip
) of 85 mV. This gives a typical trip current of approximately 850 mA for
a power switch with an on-resistance of 100 m
Ω 1 .
12.3 Tuning the overcurrent trip voltage
The ISP1122 trip voltage can optionally be adjusted through external components to
set the desired trip current. This is done by inserting tuning resistors at pins SP/BP or
OCn (see
Figure 9 ). R
tu
tunes up the trip voltage
∆
V
trip
and R
td
tunes it down
according to Equation 1 .
(1)
with I
ref(nom)
= 5
µ
A and I
OC(nom)
= 0.5
µ
A.
12.4 Reference circuits
Some typical examples of port power switching and overcurrent detection modes are
given in
Figure 10 to Figure 13 .
The RC circuit (47 k
Ω
and 0.1
µ
F) around the PMOS switch provides for soft turn-on.
The series resistor connecting the SP/BP pin to V
CC
tunes up the overcurrent trip
voltage slightly (see Figure 9 ). In the schematic diagram the resistor separates the
net names for pins V
CC
and SP/BP. This allows an automatic router to use a wide
trace for V
CC
and a narrow trace to connect pin SP/BP.
1. The following PMOS power switches have been tested to work well with the ISP1122: Philips PHP109, Vishay Siliconix Si2301DS,
Fairchild FDN338P.
∆
V
trip
∆
V
trip intrinsic
( )
I
ref
R
tu
⋅
I
OC
R
td
⋅
– + =
I
ref(nom)
= 5 µ A
I
OC(nom)
= 0.5
µ
A
I
OC(nom)
= 0.5 µ A
a. Self-powered mode. b. Bus-powered mode.

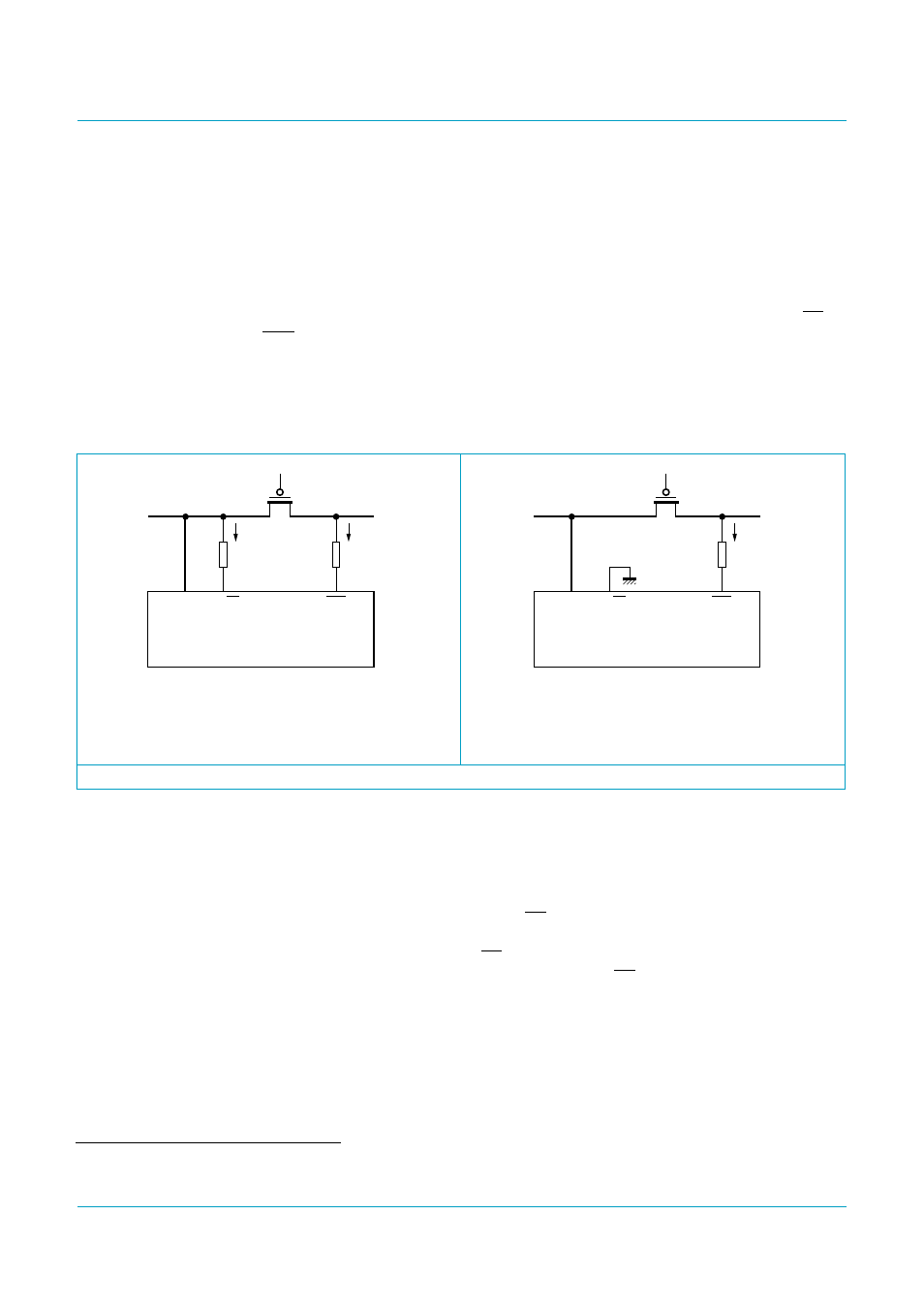

Fig 9. Tuning the overcurrent trip voltage.
handbook, halfpage
MBL042
VCC
Iref
Rtu Rtd
low-ohmic
PMOS switch
VCC SP/BP
ISP1122
OCn
IOC
handbook, halfpage
MBL043
VBUS
Rtd
low-ohmic
PMOS switch
VCC SP/BP
ISP1122
OCn
IOC
