Jazzy 610 www.pridemobility.com 25
V . C O M F O R T A D J U S T M E N T S
the quick release fastener is unclamped. When the lever is
closed, the quick release fastener is clamped.
To clamp the quick release fastener:
1. Make sure the lever is in the open position.
2. Turn the nut clockwise until it is snug.
3. Rotate the lever until it is in the fully closed position.
NOTE: If the lever will not rotate to the fully closed
position, then turn the nut counterclockwise one-quar-
ter or one-half turn.
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform with a hex key.
See figure 16.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the setscrew and jam
nut..
2. Loosen the jam nut.
3. Turn the setscrew counterclockwise to raise the front of
the platform or clockwise to lower the front of the plat-
form.
4. Tighten the jam nut to secure the setscrew.
Controller Position
You can position the controller for either left-hand or right-
hand use.
WARNING! Do not place the controller
cable so that it can be pinched in the seat
frame or the power base frame.
To change the controller position:
1. Turn off the power to the controller.
2. Loosen the rear shroud fastener. See figure 6.
3. Remove the rear shroud.
4. Unplug the controller connector(s) from the power base.
5. Cut the wire tie(s) securing the controller cable to the
armrest.
6. Flip up the armrest and loosen the setscrew. See figure 19.
7. Slide the controller out of the armrest.
8. Loosen the setscrew in the other armrest.
9. Place the controller in the other armrest.
10. Tighten the setscrew to secure the controller.
11. Use a wire tie to secure the controller cable to the arm-
rest.

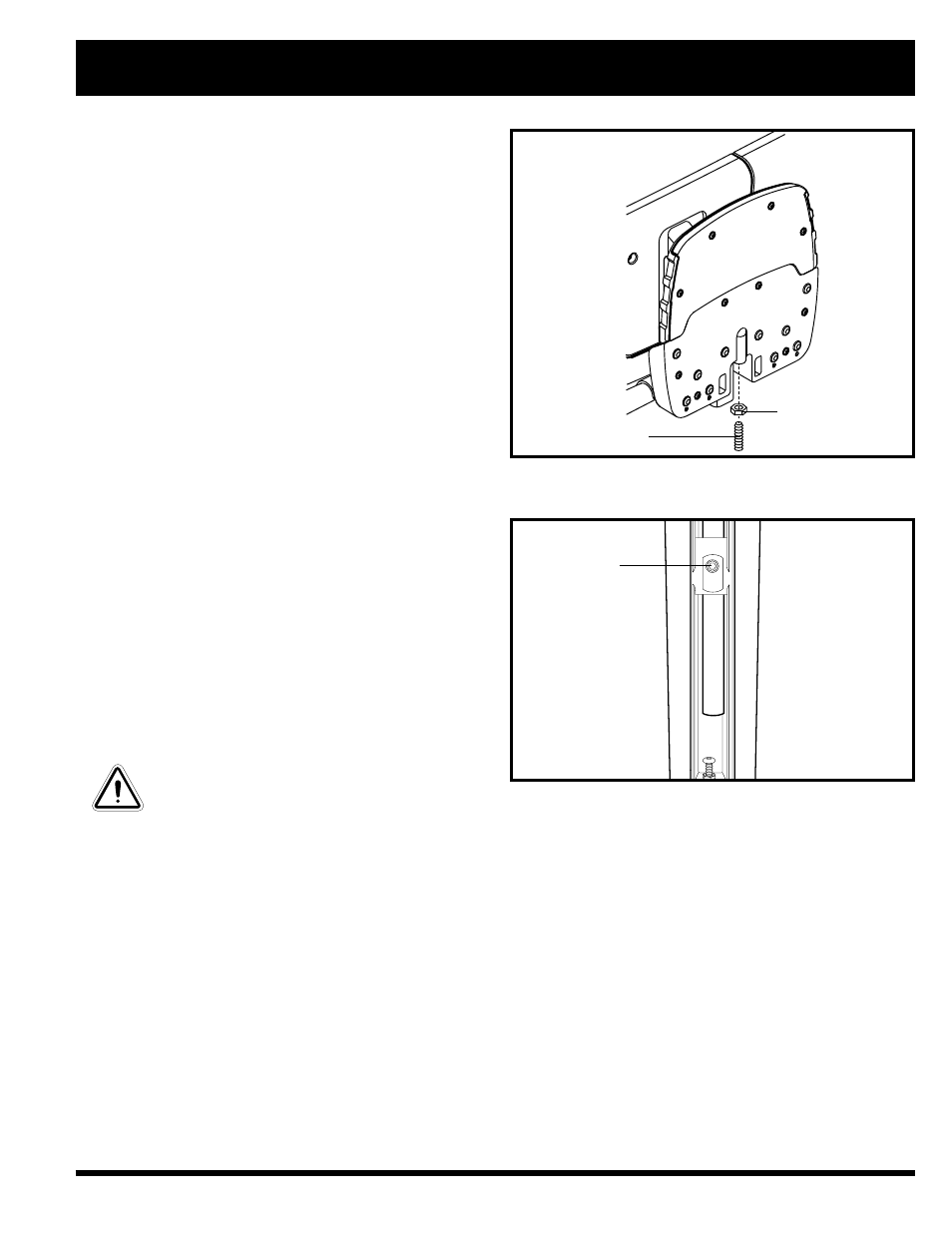

Figure 19. Underside of Armrest
SETSCREW
Figure 18. Underside of Foot Platform
SETSCREW
JAM NUT
