7 operating i nstructions, Main unit, Vertical airflow direction vane

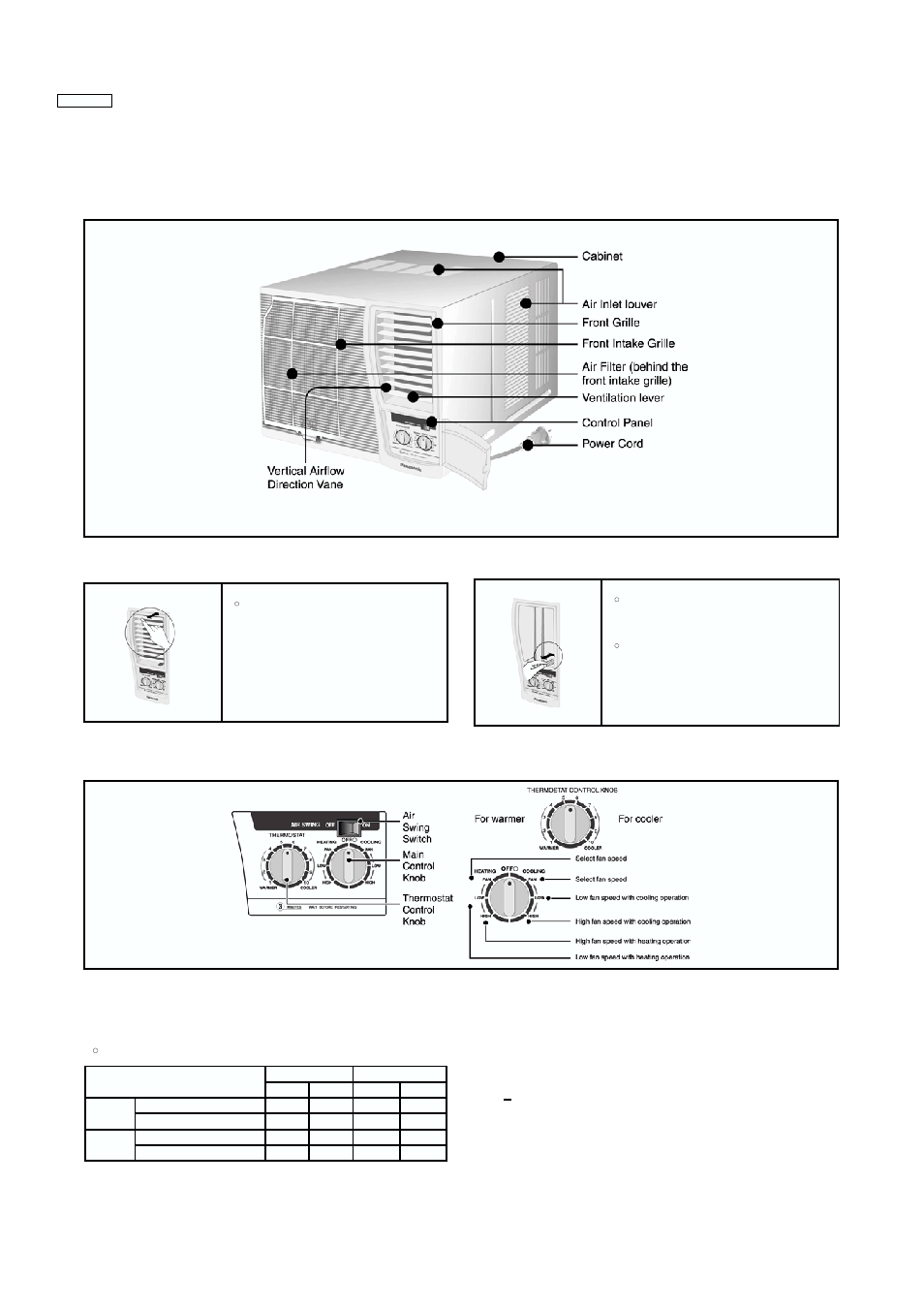

7.1. Main Unit
7.1.1. Vertical Airflow Direction Vane.
Airflow direction adjustment Up-and-Down.
• The vertical airflow direction vane may
be
positioned
to
deflect
the
air
upwards,downwards or straight on.
Use the air conditioner under the following conditions:
• Operating temperature range.
I
ndoor side
Outdoor side
D.B.T. W .B.T. D.B.T.
W .B.T.
Cooling Maximum Temperature
32°C
23°C
43°C
26°C
Minimum Temperature
21°C
15°C
21°C
15°C
Heating Maximum Temperature
27°C
----
21°C
15°C
Minimum Temperature
20°C
----
-5°C
-6°C
7.1.2. Ventilation Lever.
W hen the slide lever is in the:
• “OPEN”position,the ventilation door is
opened to allow air,smoke and odors to
be expelled from the room.
• “CLOSE”position,the ventilation door is
closed and the air inside the room is
circulated and conditioned.
D.B.T.: Dry Bulb Temperature
W .B.T.: W et Bulb Temperature
Note: Humidity may exceed 90% .
− Continuous operation at humidity may create
condensation and result in water drops on the intake
and outlet vanes
7 Operating I
nstructions
7.1.3. Main Control Knob
7.1.4. Operation Conditions.
8
