3
• Flexible suspension provisions
• Robust power handling
capabilities
• Passive crossover included
• Biamplified crossover provisions
Applications
• Stadiums
• Arenas
• Multi-purpose facilities
• Cruise ships
• Theme parks
• Houses of worship
• Live music venues
• Hotel meeting rooms
• Conference facilities
• Theaters
• Auditoriums
• Civic centers
• Judicial facilities
• Gymnasiums
• Performing arts centers
Description
The new Peavey ILS ™ 1294H
(horizontal) loudspeaker system is a
two-way, vented low frequency
enclosure using a 12" low frequency
driver paired with a 90° (horizontal) by
40° (vertical) high frequency
waveguide. The HF section employs a
1.6 exit/100 mm voice coil compression
driver mounted on one of Peavey’s
revolutionary new Quadratic Throat
waveguides. The ILS 1294 has a full
range sensitivity of 96 dB SPL –
(1 Watt/1 meter) and a maximum output
of 130 dB at 1 meter (full range).
The Peavey ILS 1294 is a high
performance loudspeaker system for
use in demanding sound reinforcement
applications. The robust construction of
the ILS 1294 provides power handling
capacities of 750 W continuous, 1.5 kW
program and 3.0 kW peak (full range).
The unit may be operated using the
internal passive crossover or may be
biamplified. Twelve 3/8"x16 threaded
mounting suspension points (2 each
top, bottom and back and 3 each sides)
allow a variety of suspension
configurations. Multiple units may be
mounted to form a vertical/horizontal
array [see limitations under mounting
instructions]. Both versions of the ILS
1294 are solidly constructed of 3/4"
void-free poplar plywood and finished
with an exterior grade hardened black
paint.
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
50
60
70
80
90
100
110
120
dB
SPL
(re
20
Pa)

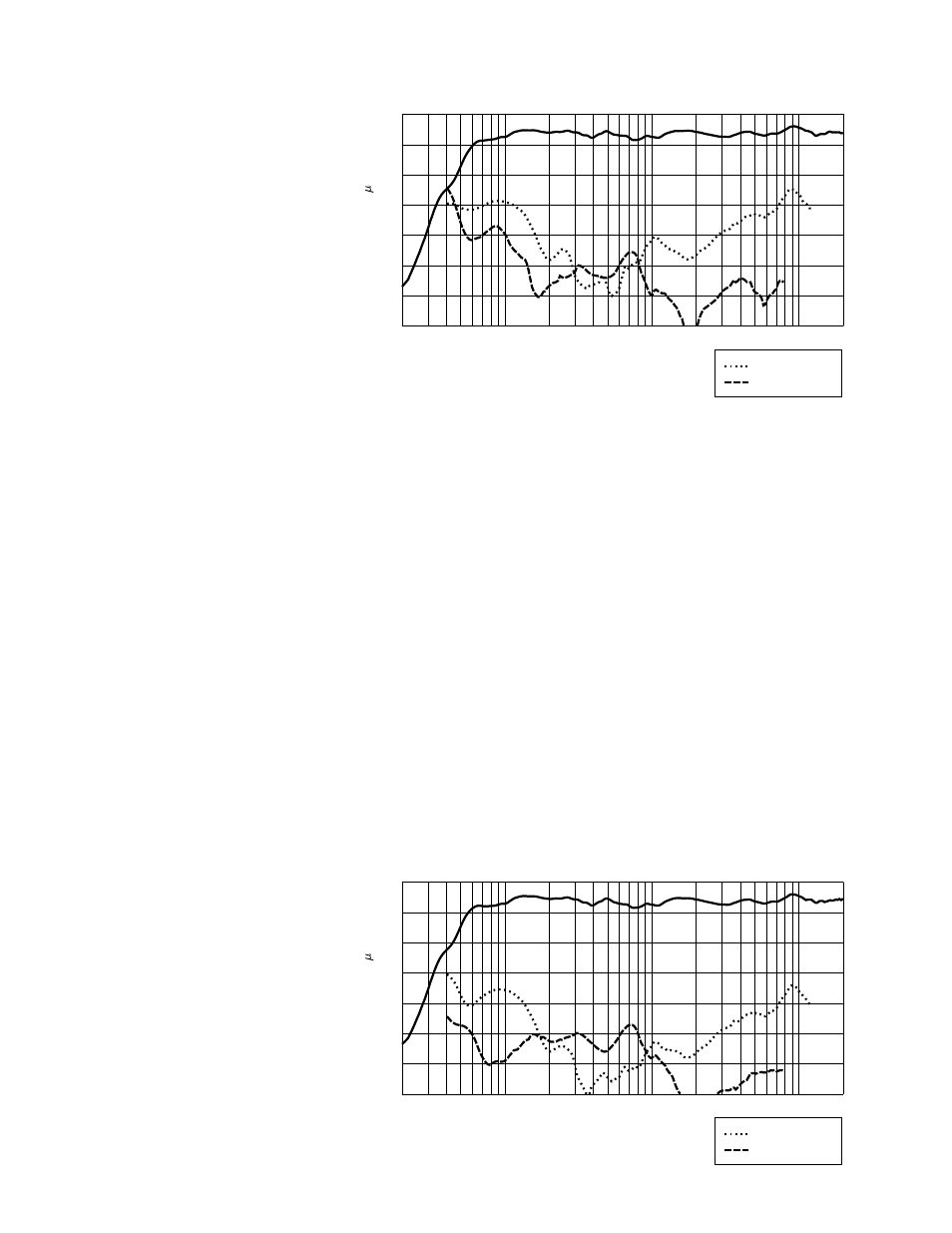

Harmonic Distortion : 10% Rated Power
Figure 5
3rd Harmonic
2nd Harmonic
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
40
50
60
70
80
90
100
110
dB
SPL
(re
20
Pa)
Harmonic Distortion : 1% Rated Power
Figure 6
3rd Harmonic
2nd Harmonic
