1810 VoIP Gateway User’s Guide
Chapter 2 Hardware Installation

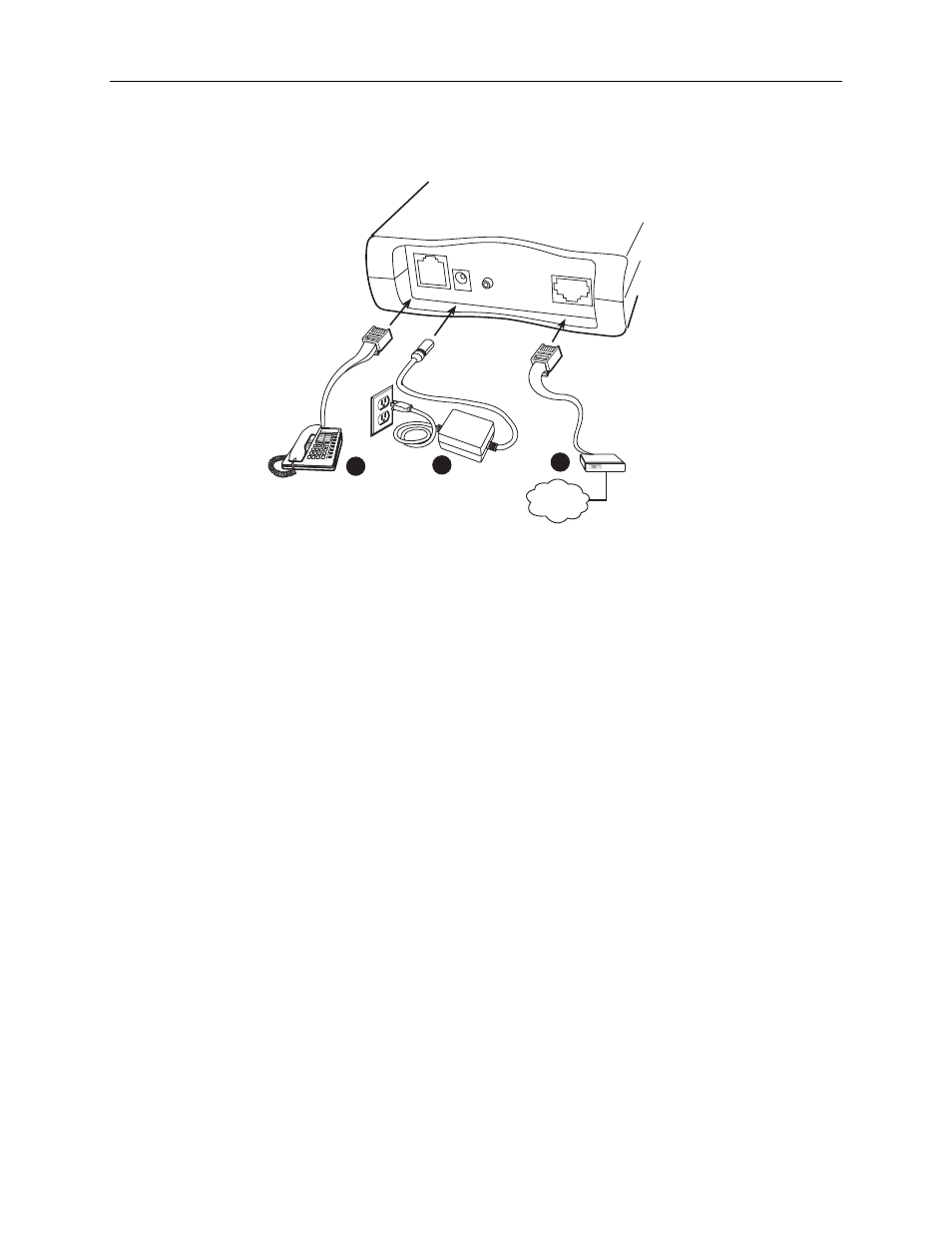

The figure below illustrates the back panel of the gateway.
Power Cable
05-17623
Power
WAN
Phone
DSL Modem
DSL LAN Port
Telephone
Cable
(RJ11)
Telephone
Internet
1 2
3
1. Connect the power adapter to the POWER jack of the device, and then plug the power adapter into
the wall outlet.
2. Connect the WAN port to your DSL modem’s LAN port using a standard RJ45-to-RJ45 cable.
3. Connect the telephone set to PHONE port for VoIP service using a standard RJ11-to-RJ11 cable.
If the device fails to power on, or it malfunctions, first verify that the power supply is correctly connected,
and then power it on again.
2.1 Reset Button
In the middle of the rear panel is a reset button. This button is used to reload the factory default settings.
Use a small object like a ballpoint pen to press the button and hold it down for over three seconds. The
gateway will reset itself and all parameters will return to their factory default settings. You can verify this
process by monitoring the PHONE LED, which will turn off and then on again as the gateway restarts.
