CQ-5330U

Electrical Connections

(Continued)

Extension Cable for connecting the unit and the XM receiver.

ŏThe Extension cable does not come along with the unit,
if need, please consult your dealer.

XM ANT

XM RECEIVER

(XM-RVR-D-001)

antenna

RCA (Red) R

8P DIN (Male)

RCA (White) L

contoroller/

head unit

FM out

audio out

power

CQ-5330U

XM control connector
(10P connector)

- SAT

DISP UP

Wired Remote
( CA-RC330U, option )

SEL

PWR

RC330U

APM/PRG

BAND

SEEK

VOL

TUNE

DISP

MODE

XM control connector
(2P connector)

Wired Remote Connector
(8P connector)

Note:

For wiring, carefully read the operation instructions for the devices connected.

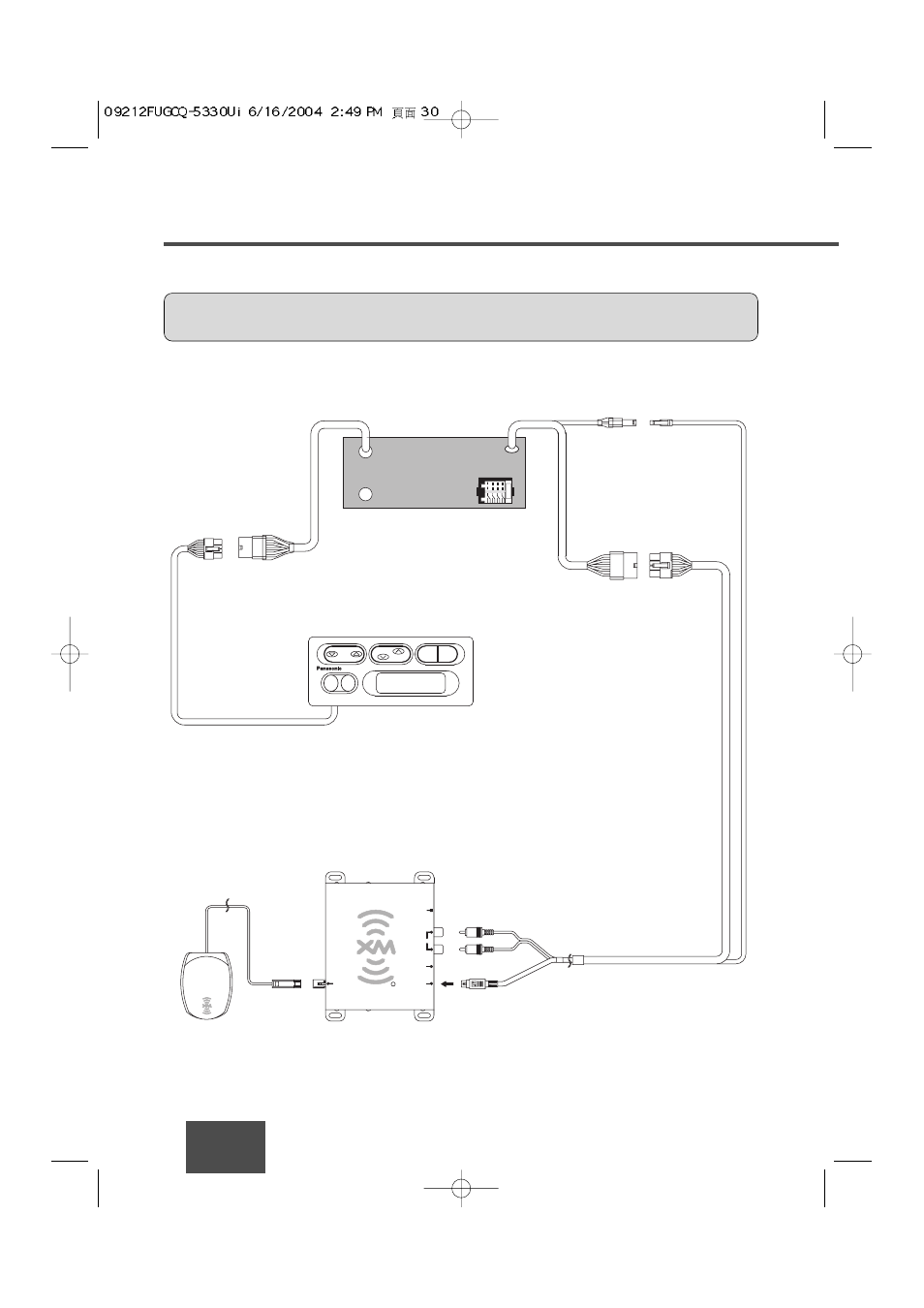

❐ Upgrading the system (connect a XM receiver and the wired remote.)
