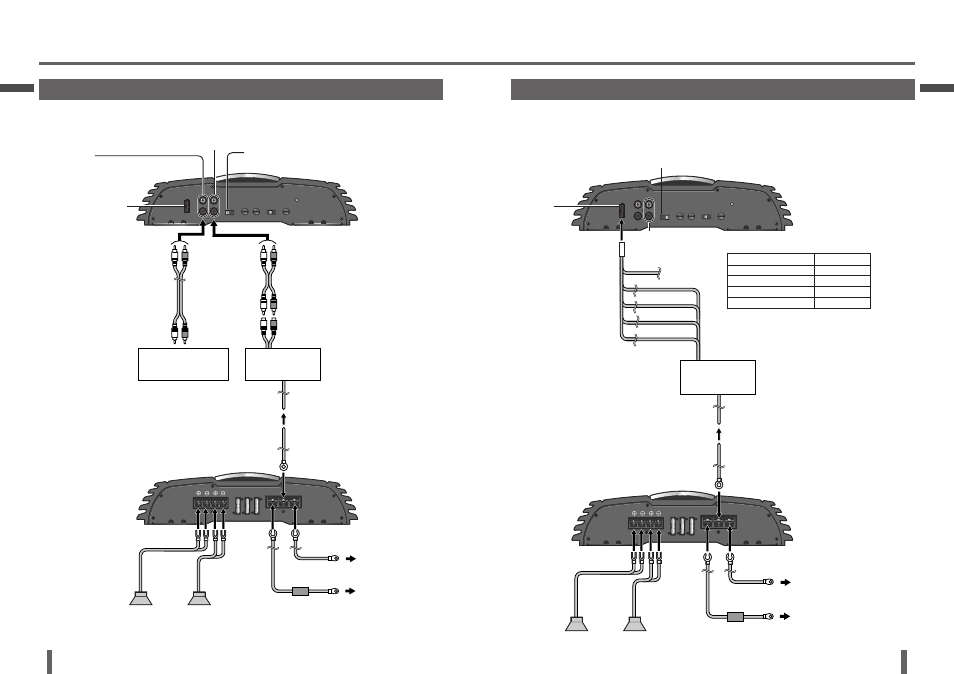

Speaker Connections with SPEAKERS INPUT Connectors
Example: 2 channel speaker connection
INPUT
(Not used.)
Head Unit
Battery Lead (Yellow)
To the car battery, continuous
12 V DC.
Ground Lead (Black)
To a clean, bare metallic part of the
car chassis.
External Amplifi er Control Lead
(Blue/white stripe)
To Head Unit’s external amplifi er control power lead.
Left (min. 2
)
Right (min. 2
)
SPEAKERS
INPUT
Speaker Output
INPUT SELECT
SPEAKERS
Speaker output
Speaker input connector
Speaker lead’s color
Channel
White
Left (
)
White/black stripe
Left (
)
Gray
Right (
)
Gray/black stripe
Right (
)
Ground lead
Note for the ground lead of the speaker input
connector:
Connect to the Head Unit’s earth.
Do not allow the speaker output and ground
to short out. Doing so will cause damage to
this unit.
Wiring
Speaker Connections with RCA cord
Example: 2 channel speaker connection
Head Unit
Power amplifi er
PRE-OUT
Left (min. 2
)
Right (min. 2
)
Battery Lead (Yellow)
To the car battery,
continuous
12 V DC.
External Amplifi er Control Lead
(Blue/white stripe)
To Head Unit’s external amplifi er control
power lead.
Ground Lead (Black)
To a clean, bare metallic
part of the car chassis.
SPEAKERS INPUT
Not used.
OUTPUT
When connecting another
power amplifi er:
INPUT
INPUT SELECT
LINE
RCA cord
(option)
L (White)
L (White)
L (White)
R (Red)
RCA cord
(option)
R (Red)
R (Red)
Speaker output
