3.0 INSTALLATION
Because the CopperLink Ethernet Extender requires no configuration, it can
be installed quickly. Installation consists of the following:
• Connect the line interface between the units (refer to section 3.1,
“Connecting the Twisted-Pair Line Interface” on page 7)
Note See Figure 2 for the rear-panel connectors locations.
• Connect the Ethernet interface (refer to section 3.2, “Connecting
10Base-T Ethernet Port to PC (DTE)” on page 8 or section section 3.3,
“Connecting 10Base-T Ethernet Port to Hub (DCE)” on page 8).
• Connect the power plug (refer to section 3.4, “Connecting Power” on
page 9).

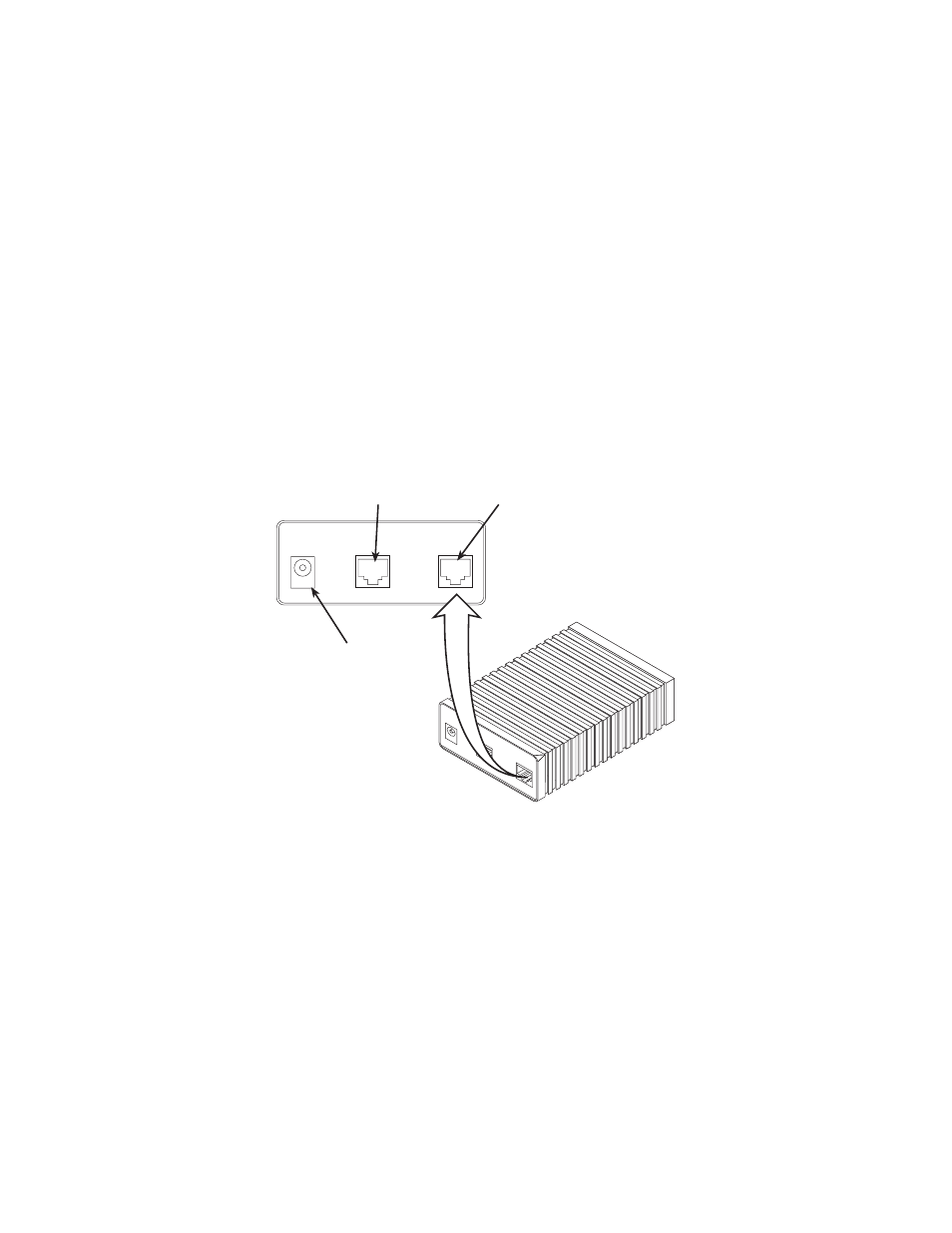

Figure 2. CopperLink Ethernet Extender rear panel
3.1 CONNECTING THE TWISTED-PAIR LINE INTERFACE
The Model 2155 supports communication between two peer Ethernet
LAN sites over a distance greater than 5 miles (8 km) over 24 AWG (0.5
mm) twisted-pair wire.
Follow the steps below to connect the CopperLink interfaces.
Note Model 2155 units work in pairs. One of the units must be a
Model 2155/L (local) and the other unit must be a Model 2155/R
(remote).
G.703/G.704 T
est Modes
511E
Model 1194E Single Mode Fiber - Quad G.703/G.704 Modem
Interface
Power
Made in the USA
DSL
ON
OFF
|
O DSL
DSL interface
Power Interface
Made in the USA
Interface connector
Power input
connector
