7
C
ONNECTING THE
A
UDIO
/V
IDEO
S
OCKETS
(P
LACKBACK
)

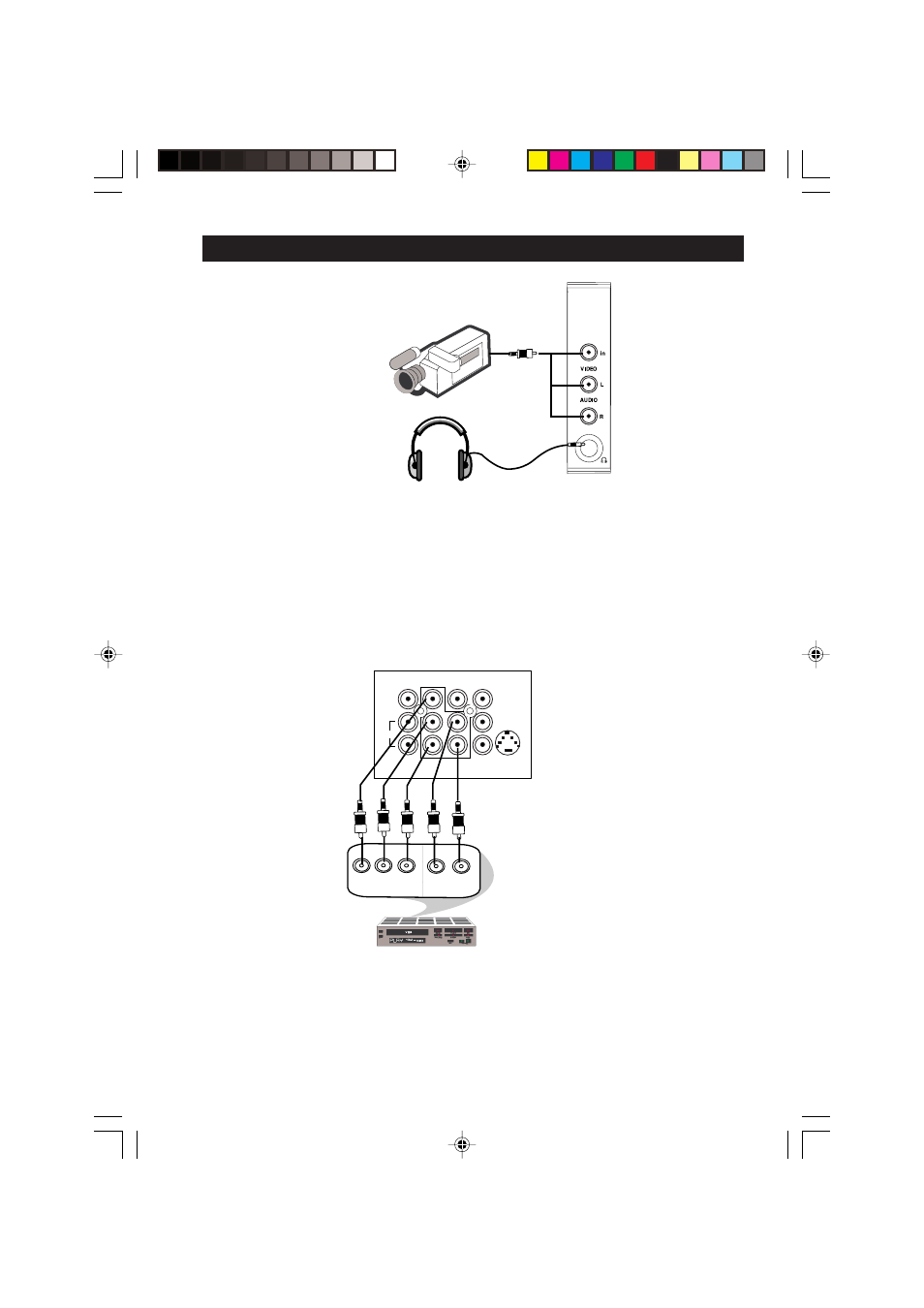

For more convenient direct playback connections, the Side Audio/Video Input sockets allow for quick
and easy connections, particularly Camcorder tape recordings.
– Connect the VIDEO socket from the Camcorder to the Side VIDEO in socket of the TV.
– Connect the AUDIO OUT sockets (Right and Left) from the Camcorder to the Side
AUDIO IN sockets.
You can view the playback of DVD discs by using the COMPONENT VIDEO INPUT sockets on the
rear of the TV.
– Connect the
“Y”, “Pb” and the “Pr” INPUT sockets on the TV to the “Y”, “Pb” and
“Pr” OUTPUT sockets on the DVD to view playback of DVD discs.
Connect headphone jack to
socket for personal listening
Camcorder
AV sockets on rear of TV
Back of DVD
DVD (Equipped with “Y”,
“Pb” and “Pr” and Output
sockets)
OUT
AUDIO Y L
OUT
R Pb Pr
L
R
S-VIDEO
VIDEO
AUDIO
AV1
in
AV2
in
Monitor
out
COMPONENT VIDEO INPUT
Y
Pb
Pr
