PBM-070L
Page - 6 - Installation Manual
Step 5. Loosely install the hinge pin screws, flat washer and nylon spacer to each side of the base box.
Step 6. Slide the nylon spacer and the flat washer to the back of the screws.

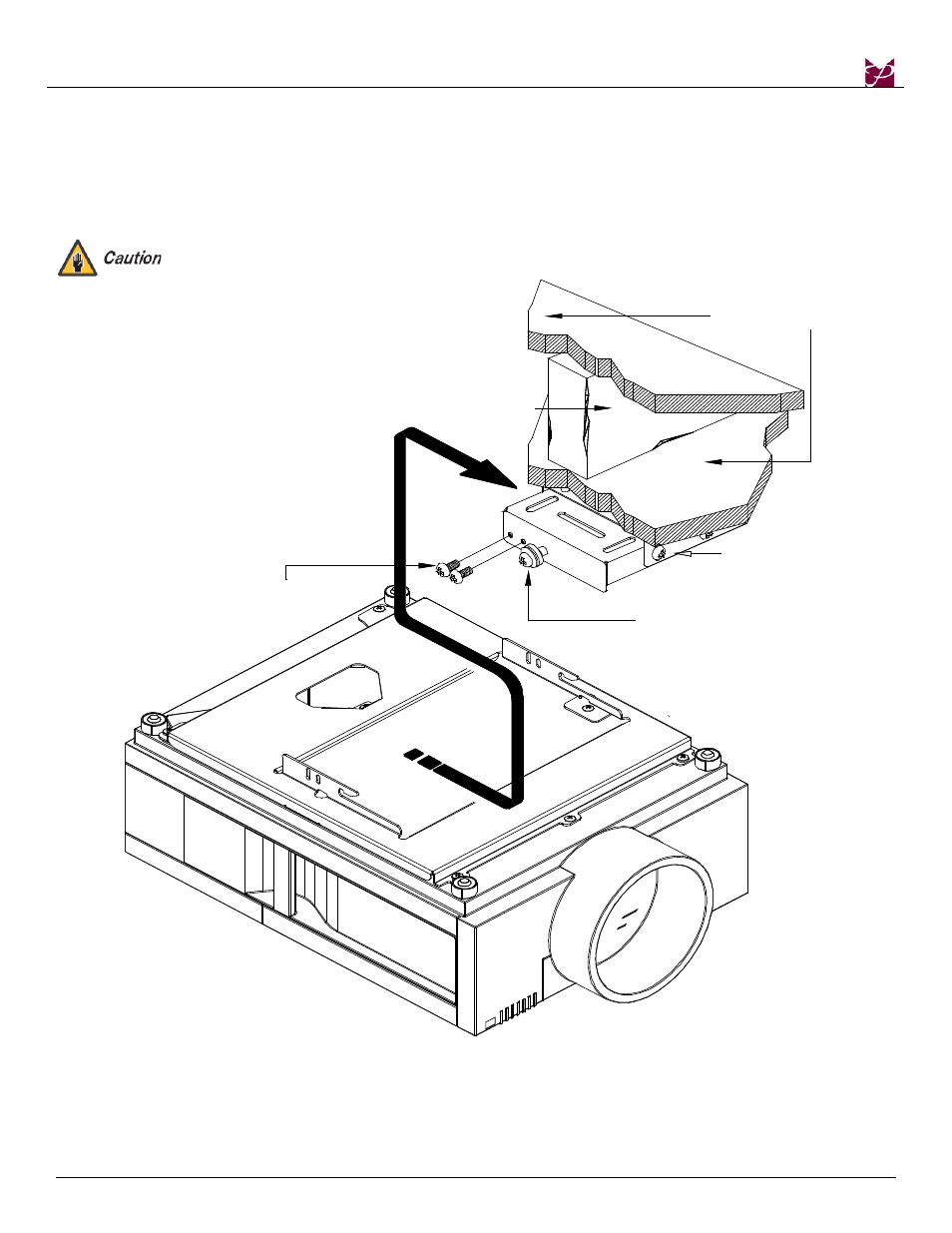

Step 7. Raise the mounting bracket and attached projector to the base box and insert the hinge-pins through the hinge-pin openings.
Step 8. Tighten the hinge pin screws.
Step 9. Determine the viewing angle. Once the viewing angle has been determined, insert and tighten the four (4) tilt locking
screws.
Do not over-tighten the screws.
Ceiling Structure
Top Bridge
Hinge Pin Bolt
Flat Washer
Tilt Locking
Screws
Wood Stud
