Chapter 2:
Controls and displays

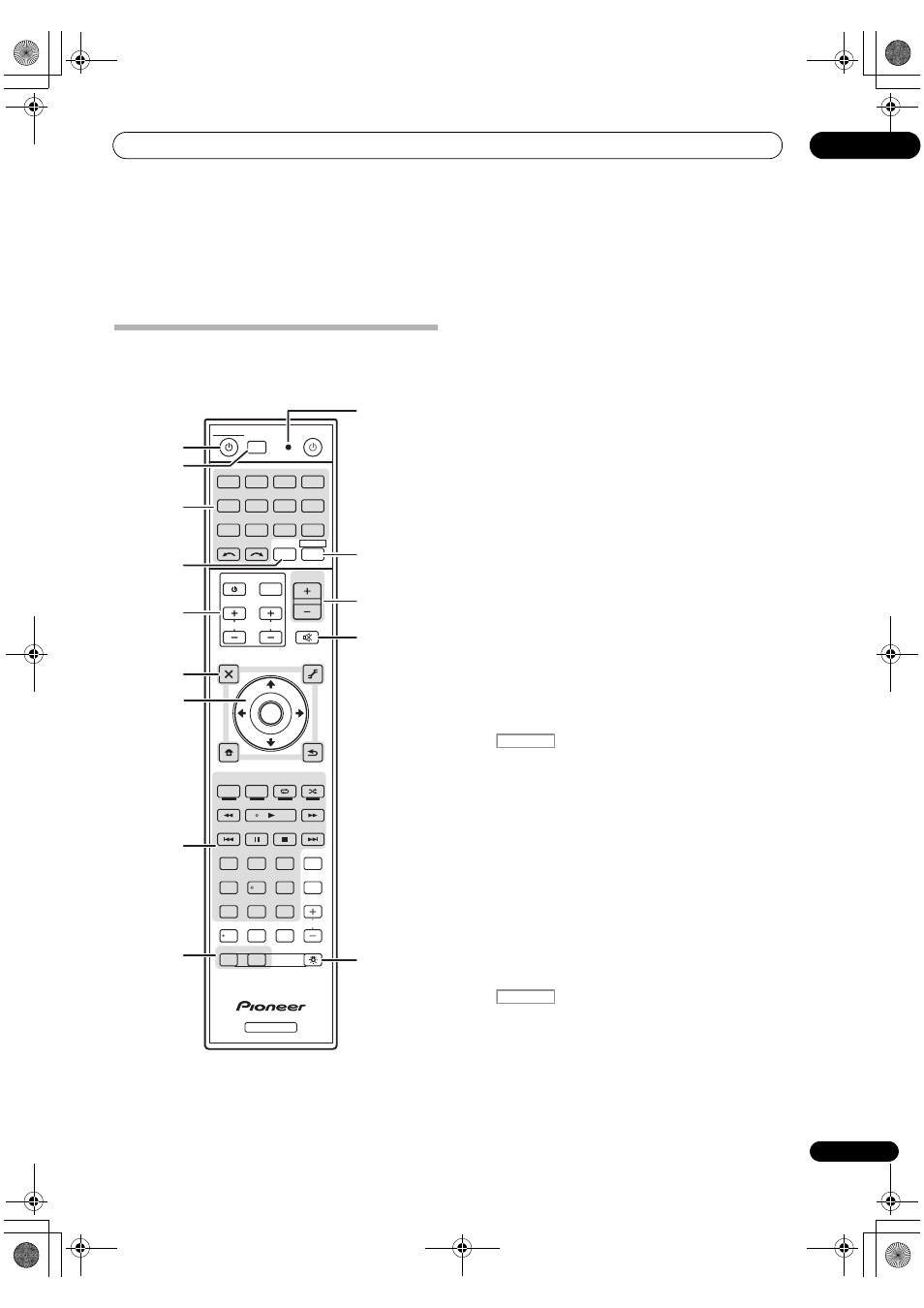

Remote control
This section explains how to operate the remote control
for the receiver.
The remote has been conveniently color-coded according
to component control using the following system:
• White – Receiver control, TV control
• Blue – Other controls (See page 43, 44, 46, 47, 51 and
72.)
1  RECEIVER
This switches between standby and on for this receiver.
2 MULTI OPERATION – Use to perform multi
operations (page 70).
R.SETUP – Use to input the preset code when making
remote control settings and to set the remote control
mode (page 67).
3 Input function buttons
Press to select control of other components (page 67).
Use INPUT SELECT to select the input function (page 42).
4 TV CTRL
Set the preset code of your TV’s manufacturer when
controlling the TV (page 68).
5 TV CONTROL buttons
These buttons are dedicated to control the TV assigned to
the TV CTRL button.
6 Receiver setting buttons
Press first to access:
AUDIO PARAMETER – Use to access the Audio
options (page 60).
VIDEO PARAMETER – Use to access the Video
options (page 62).
HOME MENU – Use to access the Home Menu
(pages 38, 40, 57, 75, 84 and 87).
RETURN – Press to confirm and exit the current
menu screen.
7
////ENTER
Use the arrow buttons when setting up your surround
sound system (see page 75) and the Audio or Video
options (page 60 or 62).
8 Receiver Control buttons
Press first to access:
AUTO/ALC/DIRECT – Switches between Auto
Surround (page 53), Auto Level Control mode and
Stream Direct mode (page 55).
STEREO – Switches between stereo playback and
Front Stage Surround Advance modes (page 55).
