Your Victory XL is a motorized electric scooter designed to enhance your personal mobility. Your Victory XL is an
indoor/outdoor scooter designed to travel primarily on smooth surfaces such as sidewalks, roads, parking lots,
floors, and driveways. For easy transportation or storage, you can disassemble your Victory XL into seven com-
ponents. See figure 5.
CONTROL CONSOLE ASSEMBLY
The control console assembly houses all the controls you need to drive your Victory XL including the key switch,
the speed adjustment dial, the throttle control lever, the battery condition meter, the horn button, and the light
switch. See figure 6.
WARNING! Do not expose the control console assembly to moisture. In the event that the
control console assembly does become exposed to moisture, do not attempt to operate
your scooter until the control console assembly has dried thoroughly.
Key Switch
n Fully insert the key into the key switch to power up (turn on) your Victory XL.
n Pull the key out to power down (turn off) your Victory XL.
Speed Adjustment Dial
This control dial allows you to preselect and limit your Victory XL’s top speed.
n The image of the tortoise represents the slowest speed setting.
n The image of the hare represents the fastest speed setting.

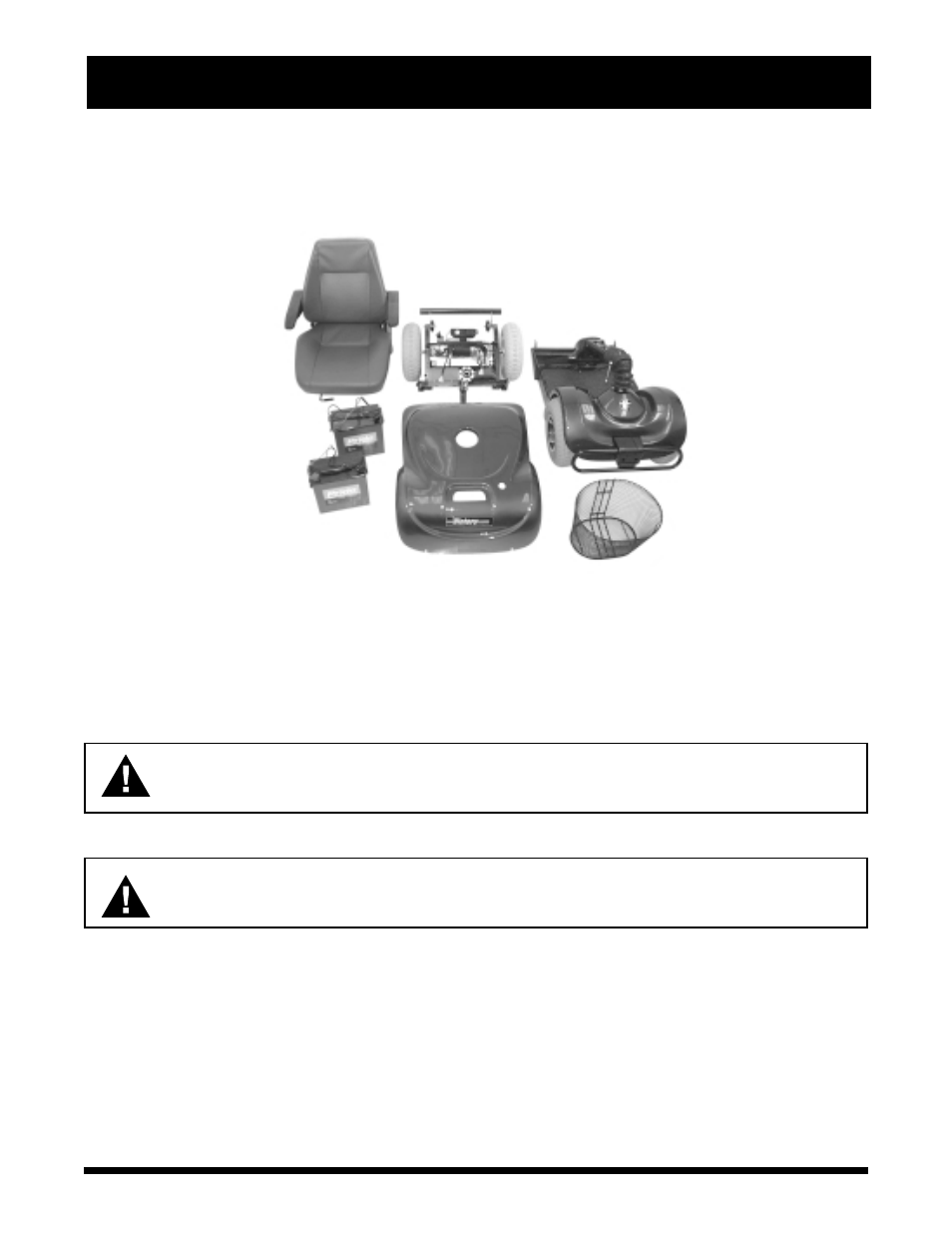

Figure 5. Victory XL Components
FRONT SECTION
REAR SECTION
SEAT
BASKET
BATTERIES
REAR SHROUD
V . Y O U R V I C T O R Y X L
WARNING! If the key is removed from the key switch while your scooter is in motion, the
electronic brakes will engage and your scooter will come to an abrupt stop!
