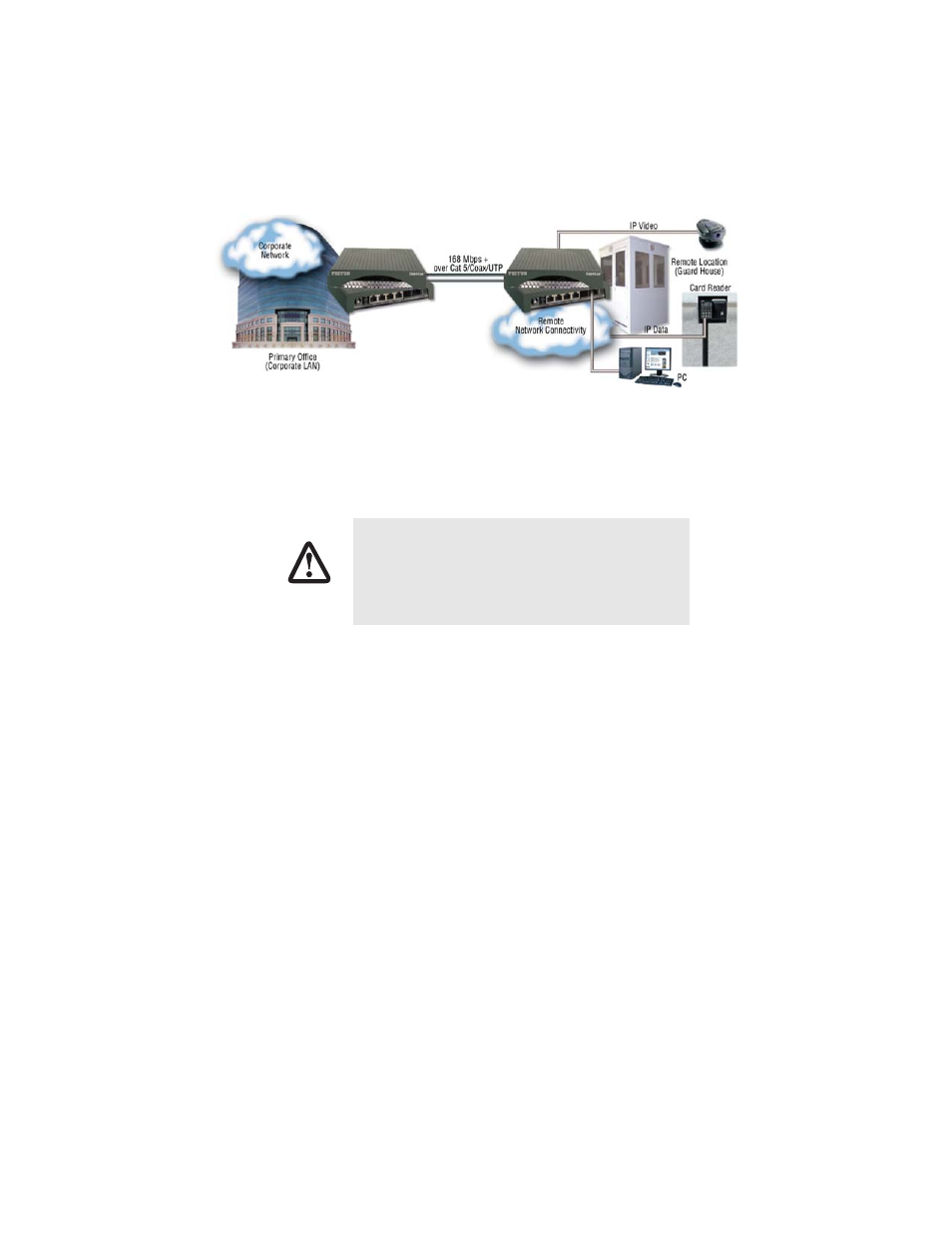

Figure 1. Typical application
The pair of 2174 models work together to create a transparent extension
between two peered Ethernet LANs using twisted pair (2-wire), Cat5+, or
75-ohm BNC. Figure 1 shows a typical point-to-point application.
3.0 INSTALLATION
To install the 2174 Ethernet Extender, do the following:
1. Connect the line interface between the units (refer to section 3.1,
“Connecting the Line Interface” on page 11)
Note See Figure 2 for the Model 2174’s rear panel arrangements.
2. Connect the Ethernet interface (refer to section 3.2, “Connecting the
10/100Base-T Ethernet Interface” on page 12).
3. Connect the power plug (refer to section 3.4, “Connecting Power” on
page 13).
The Interconnecting cables shall be acceptable for
external use and shall be rated for the proper applica-
tion with respect to voltage, current, anticipated tem-
perature, flammability, and mechanical serviceability.
CAUTION
