19
APPENDIX C
MODEL 2174 SERIES INTERFACE PIN ASSIGNMENT
C.1 10/100BASE-T INTERFACE
RJ-45
• Pin 1: TX+
• Pin 2: TX-
• Pin 3: RX+
• Pin 6: RX-
• Pins 4, 5, 7, 8: no connection
C.2 COPPERLINK INTERFACE
RJ-45
• Pin 4: RING
• Pin 5: TIP
• Pins 1, 2, 3, 6, 7, 8: no connection

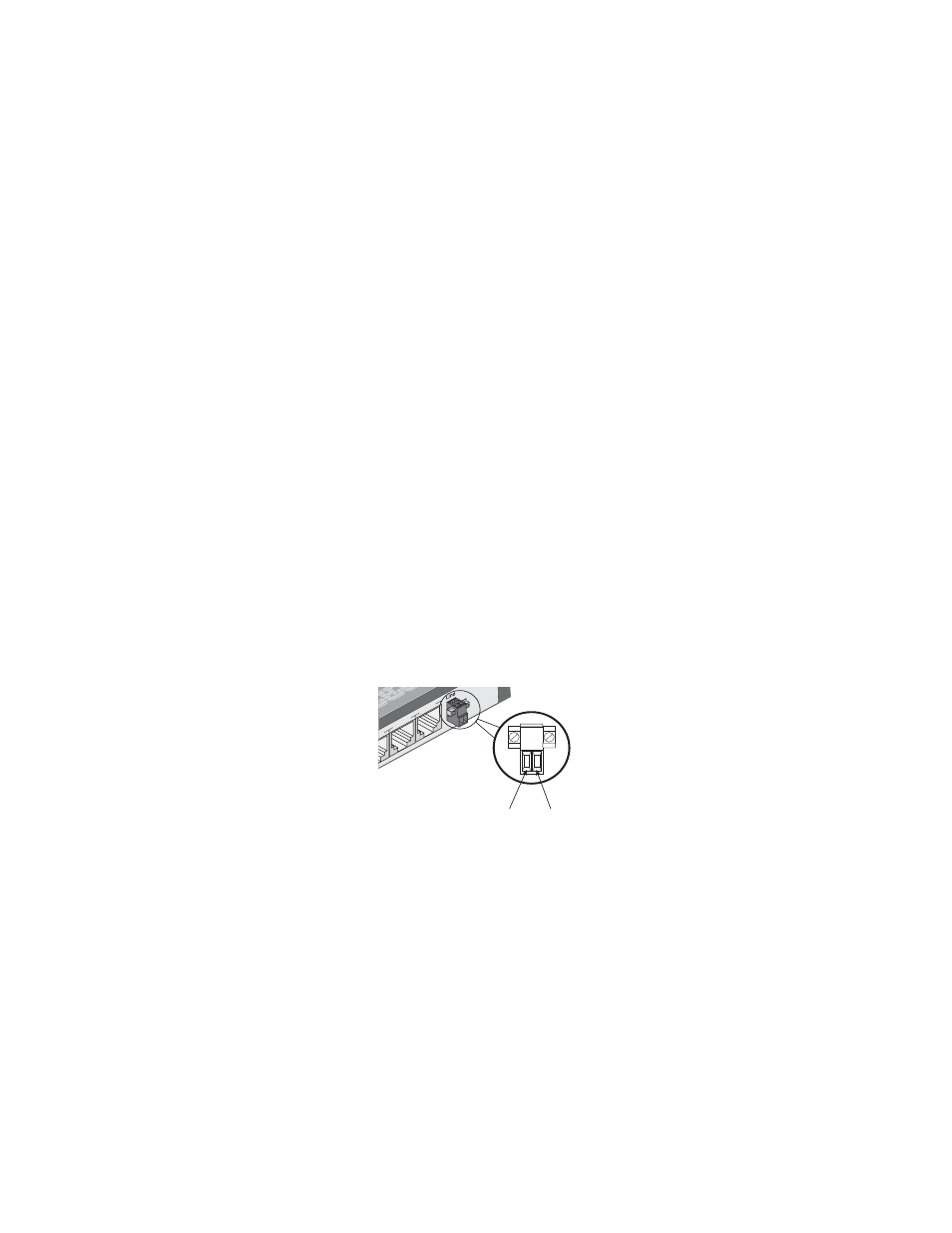

Terminal Block
C.3 POTS/ISDN INTERFACE (2174/S)
RJ-45
• Pin 4: 2-wire RING
• Pin 5: 2-wire TIP
Pins 1, 2, 3, 6, 7, 8: no connection
Eth
3
1
Eth
2
RING
TIP
