Quantum 1122 Series www.quantumrehab.com 31
V I . D I S A S S E M B L Y

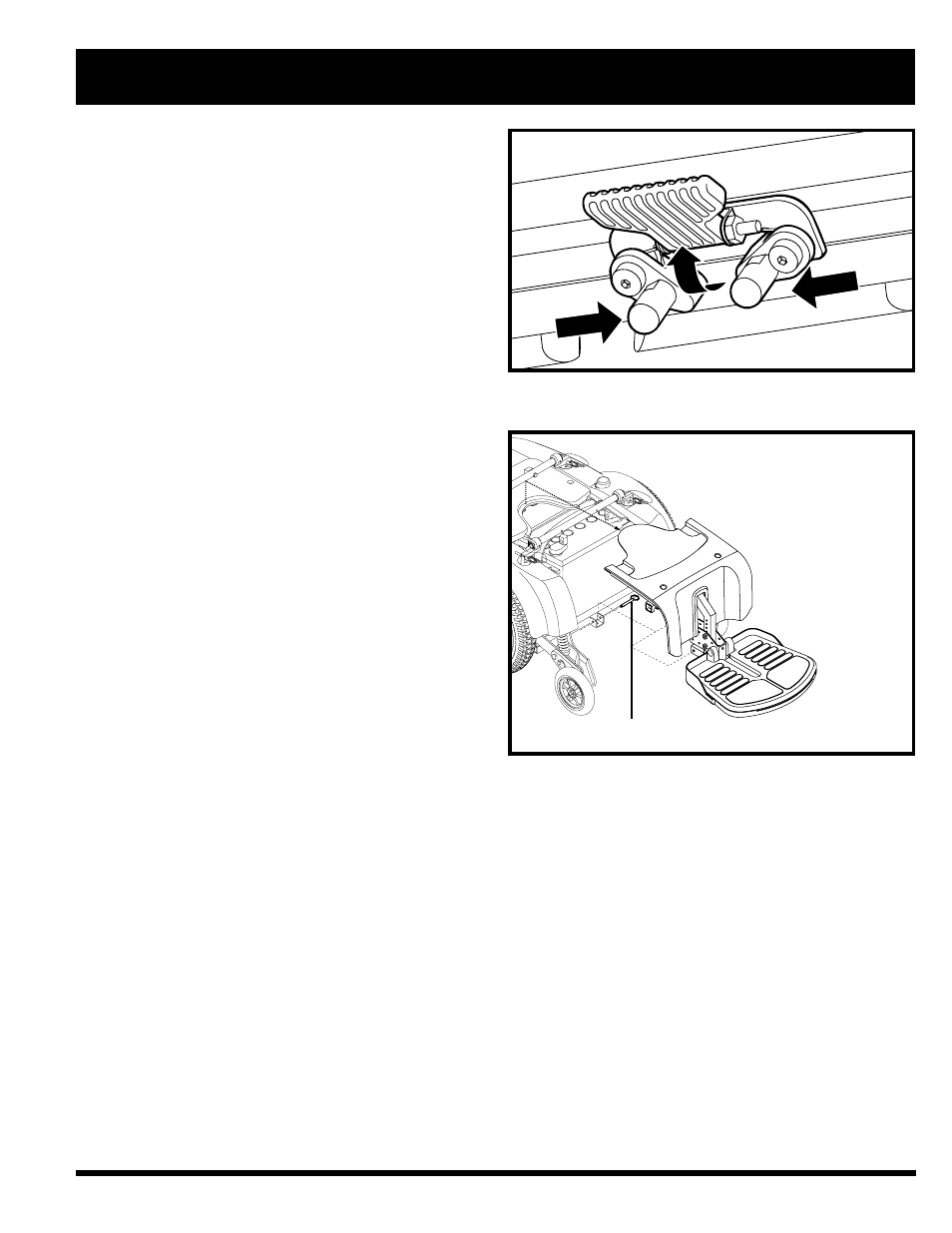

Figure 26. Foot Frame Removal
Figure 25. Seat Safety Latch
BALL DETENT PIN
Seat Removal
You may wish to remove the seat for transportation.
NOTE: If your power chair is equipped with a Spe-
cialty Seat, Synergy Seat, or TRU-Balance Power
Positioning System, refer to the information provided
in separate manuals.
To remove the seat:
1. Turn off the power to the controller.
2. Make sure your power chair is not in freewheel mode.
See III. “Your Power Chair.”
3. Unplug the controller connector from the electronics
tray.
4. Flip up the seat latch safety. See figure 25.
5. Squeeze the seat latch and release the seat from the
front trapeze bar.
6. Slide the seat forward and remove it from the power
base.
To remove a power elevating seat:
1. Turn off the power to the controller.
2. Unplug the power elevating seat cable from the elec-
tronics tray.
3. Unplug the controller from the electronics tray.
4. Release the seat by moving the seat release lever back-
ward.
5. Lift the seat off of the actuator.
Foot Frame Removal
The foot frame helps protect the power chair components
from the environment. See figure 26. You must remove the
foot frame in order to change the batteries and check the
cable connections.
To remove the foot frame:
1. Turn off the power to the controller
2. Make sure your power chair is not in freewheel mode.
See III. “Your Power Chair.”
3. Locate and remove the ball detent pin at the base of
the footrest bracket. See figure 18.
4. Lift the foot frame straight up approximately 2 in. (5 cm)
and pull toward you.
