I I I . Y O U R P O W E R C H A I R
THE QUANTUM 1122 SERIES POWER CHAIR
Your power chair has two main assemblies: the seat and the power base. See figure 5. Typically, the seating assembly
includes the armrests, seatback, and controller. The power base assembly includes two drive wheels, two anti-tip
wheels, two rear caster wheels, a power seat connector (optional), harness connectors, and a body shroud. See figures
5 through 9.

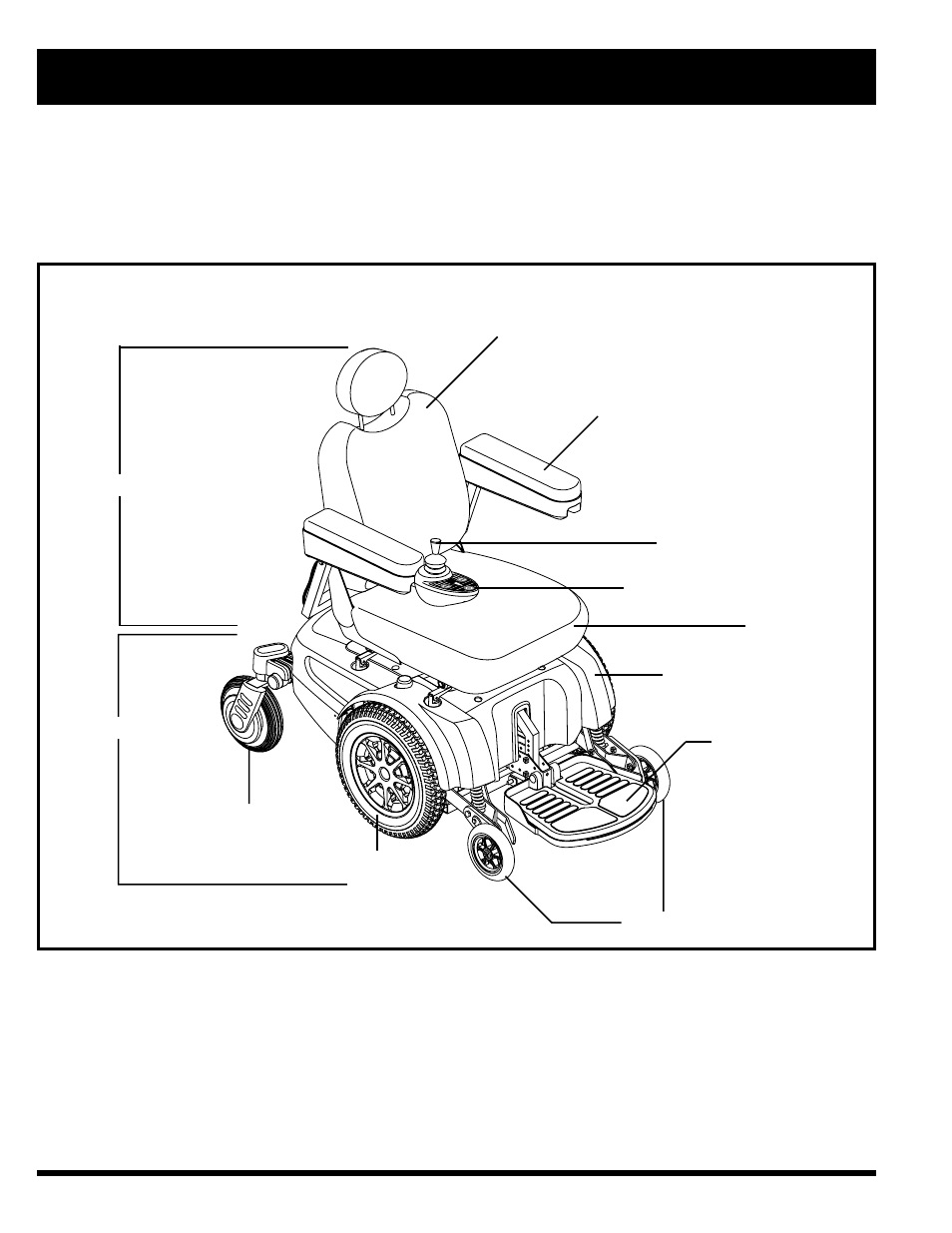

Figure 5. The Quantum 1122 Series Power Chair
SEAT ASSEMBLY
SEATBACK
CONTROLLER
ARMREST
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
REAR CASTER WHEEL
FOOT RIGGING
(FOOT PLATFORM SHOWN)
POWER BASE ASSEMBLY
JOYSTICK
SEAT BASE
